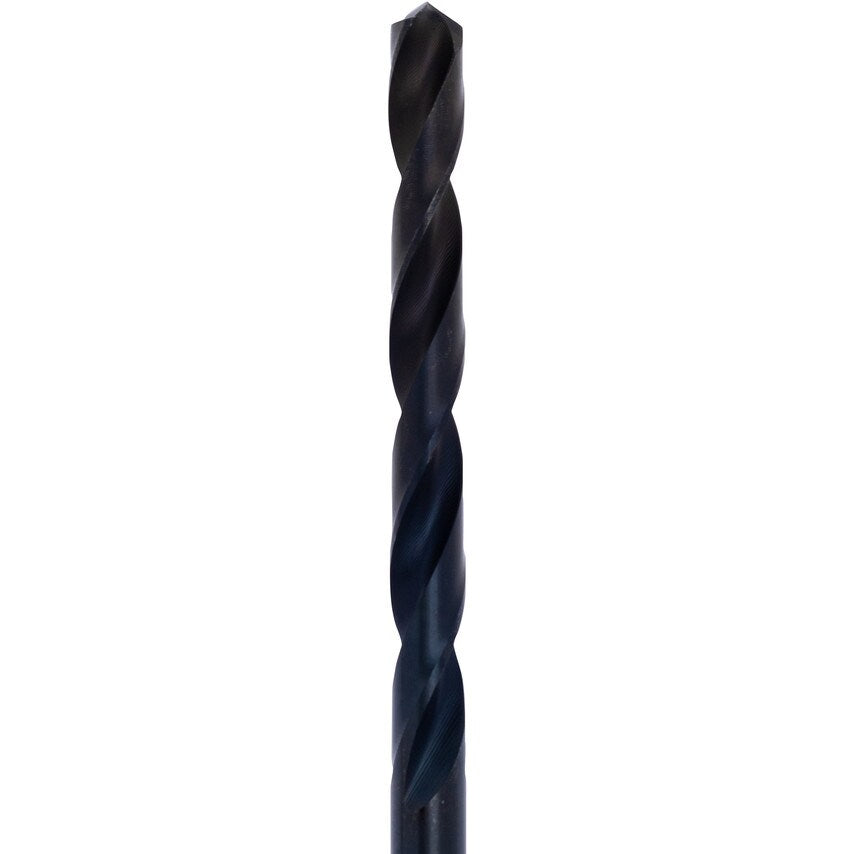

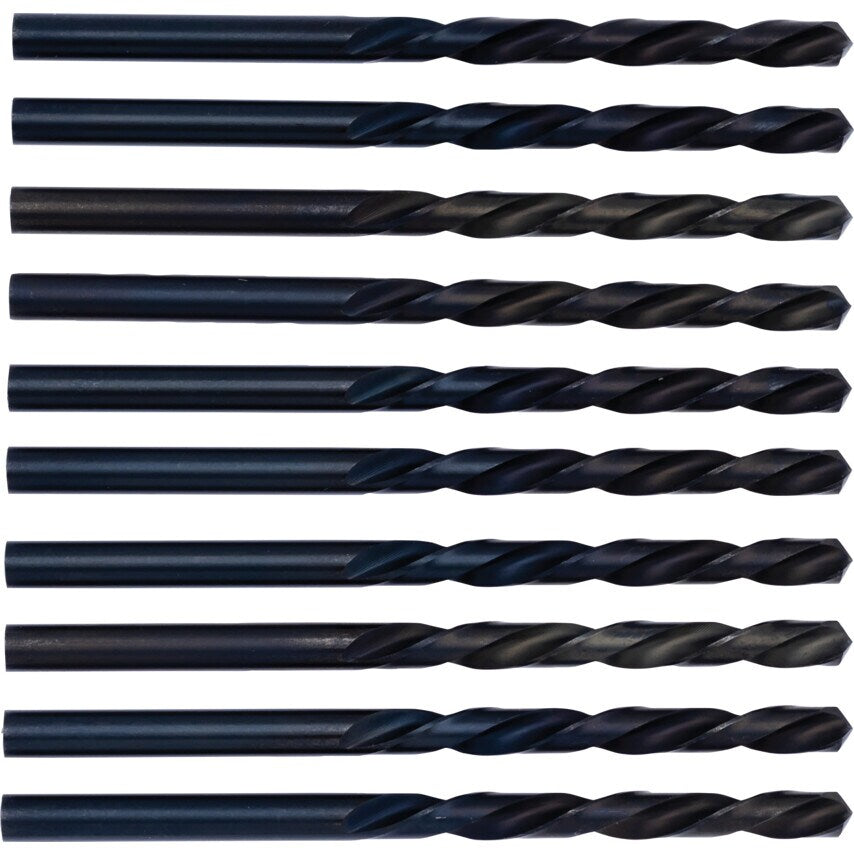

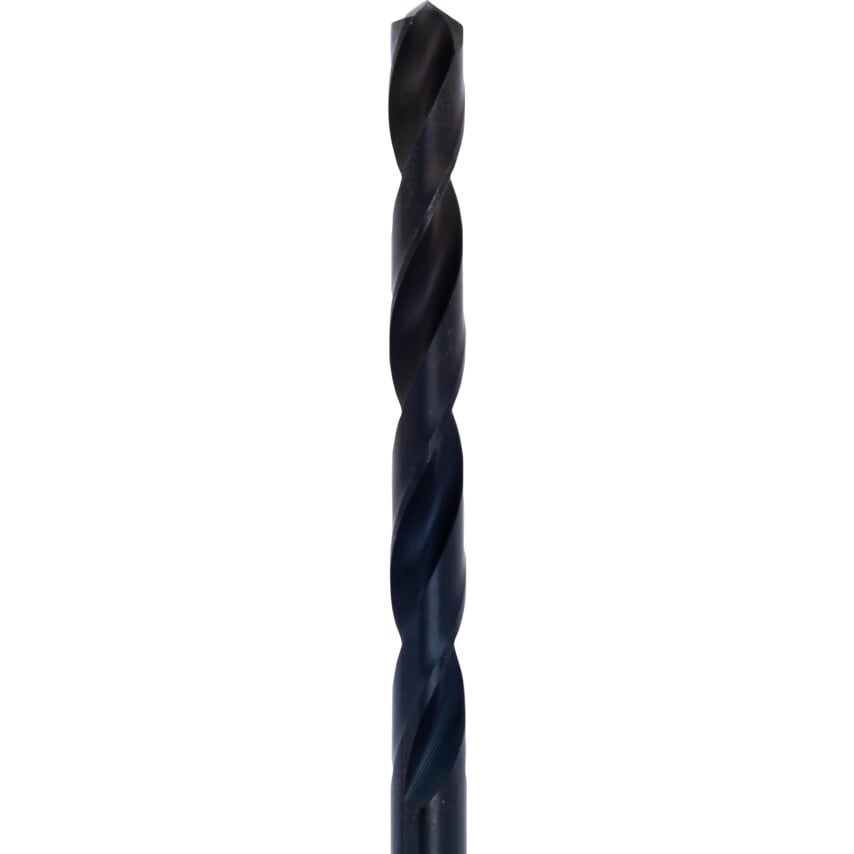

205 Series HSS drills are suitable for drilling steel, cast steel, alloyed and unalloyed, grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite. Finished with a black oxide coating for aiding chip flow and heat dissipation.
Features and Benefits
Manufactured form high speed steel for durability
Black oxide finish for improved chip flow and heat dissipation
Suitable for use with a range of metals including steel and cast iron
Standards
BS 328, DIN338RN
Typical Applications
Steel
Steel alloys
Grey cast iron
Spheroidal iron
Sintered powder metal
German silver
Graphite
Notes
Available in metric sizes 0.4mm - 20.0mm
| Cutting Direction | Right Hand |
| Helix Type | Low Helix |
| Point Type | Thinned Point |
| Shank Diameter Tolerance | F11 |
| Overall Length | 86mm |
| Number of Flutes | 2 |
| Type | Jobber Drills |
| Product Type | Jobber Drills |
| Finish/Coating | Steam Oxide |
| Point Angle | 118\u00b0 |
| Gauge Size | 5.0mm |
| Coolant Delivery | External |
| Standards Met | BS 328 | DIN 338RN |
| MFR Part No. | 00205 005.000 |
| Diameter | 5.0mm |
| Drill Diameter Metric | 5mm |
| Flute Type | Spiral |
| Flute Length | 52mm |
| Web Thickness | Form A |
| Series | 205 |
| Flute Construction | Ground flutes |
| Drill Diameter | 5mm |
| Drill Diameter Tolerance | H8 |
| Material | HSS |
