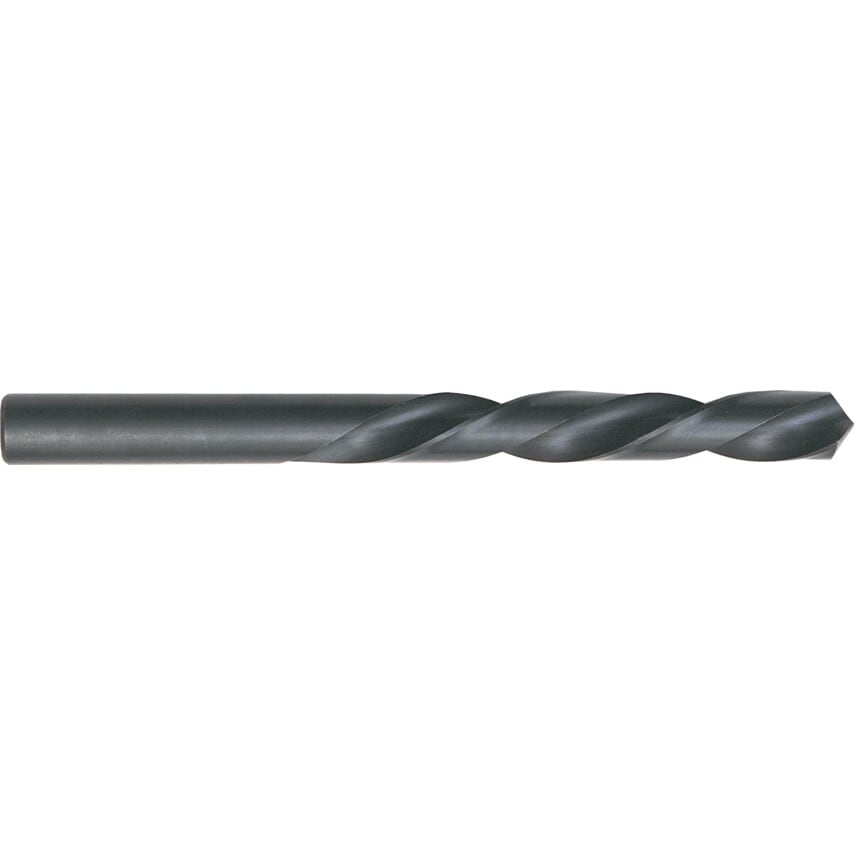

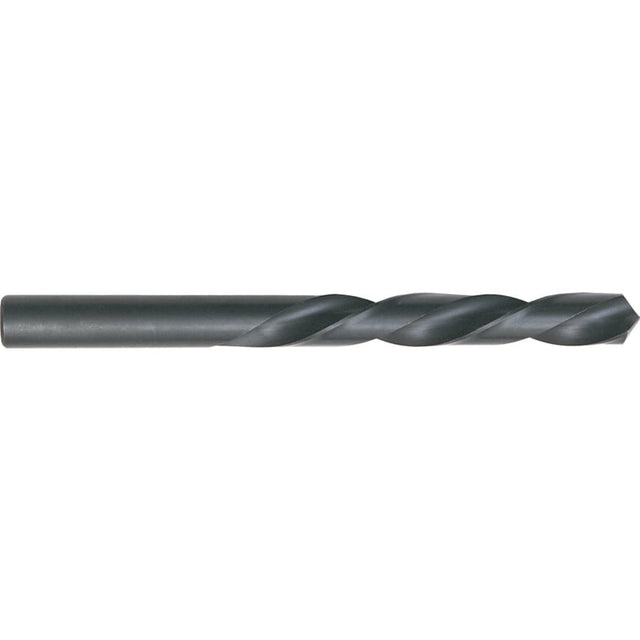

205 Series HSS drills are suitable for drilling steel, cast steel, alloyed and unalloyed, grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite. Finished with a black oxide coating for aiding chip flow and heat dissipation.
Features and Benefits
Manufactured form high speed steel for durability
Black oxide finish for improved chip flow and heat dissipation
Suitable for use with a range of metals including steel and cast iron
Standards
BS 328, DIN338RN
Typical Applications
Steel
Steel alloys
Grey cast iron
Spheroidal iron
Sintered powder metal
German silver
Graphite
Notes
Available in metric sizes 0.4mm - 20.0mm
| Overall Length | 142mm |
| Standards Met | BS 328 | DIN 338RN |
| Drill Diameter Metric | 10.9mm |
| Product Type | Jobber Drills |
| Series | 205 |
| Helix Type | Normal Helix |
| Drill Diameter | 10.9mm |
| Finish/Coating | Steam Oxide |
| Number of Flutes | 2 |
| Gauge Size | 10.0mm |
| Diameter | 10.9mm |
| Point Angle | 118\u00b0 |
| Cutting Direction | Right Hand |
| Size | 10.9mm |
| Flute Construction | Ground flutes |
| Flute Type | Spiral |
| Web Thickness | Form A |
| Material | HSS |
| Type | Jobber Drills |
| Coolant Delivery | External |
| Flute Length | 94mm |
| MFR Part No. | 00205 010.900 |
