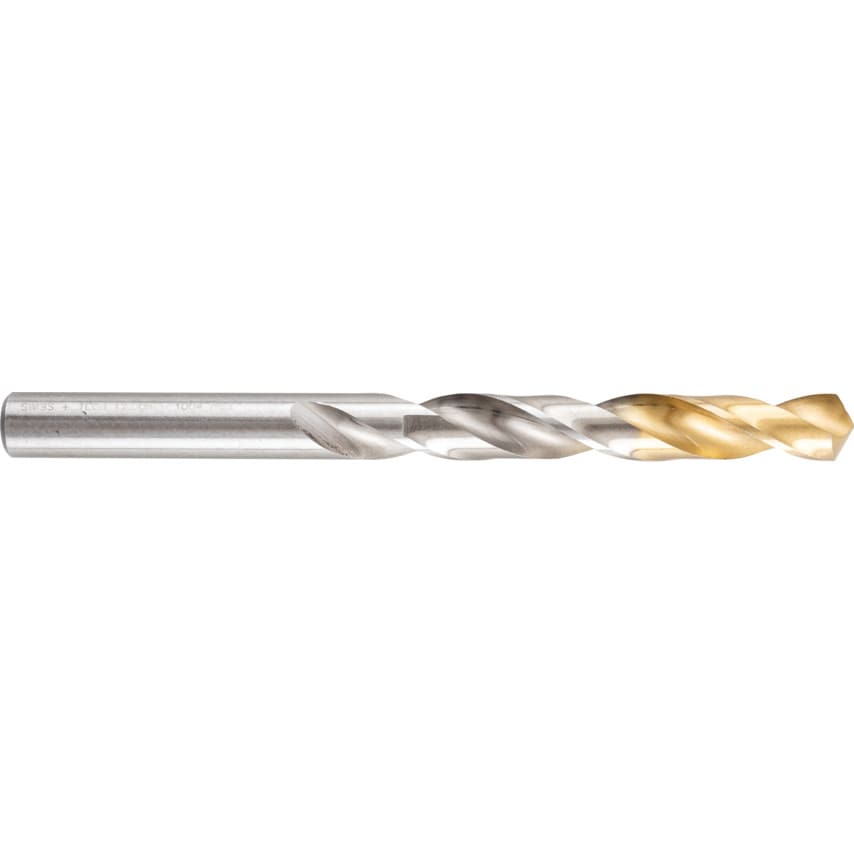

Swiss+Tech HSS Straight Shank TiN Tipped Jobber Drills are coated in a durable Titanium Nitrile at the tip for optimal tool life and performance when undertaking cutting applications. Their ground flute construction and bright body gives a more precise finish and therefore better cutting precision, making them ideal for use with steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron.
Features and Benefits
Hardy TiN tipped coating for optimal performance and prolonged lifespan
Bright body with ground flutes offers excellent precision when cutting

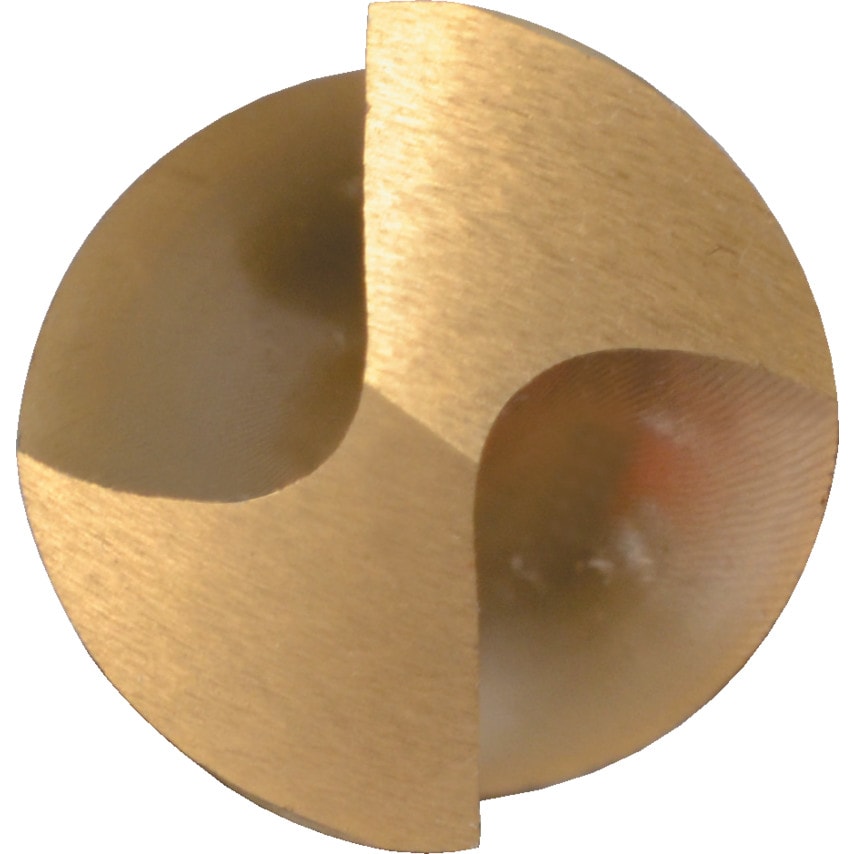

118 for excellent positional accuracy
Standards
Manufactured to BS 328, DIN 338
Notes
Suitable for the machining of:
Steel and cast steel (alloyed and non-alloyed)
Grey cast iron, graphite and malleable cast iron
Available in sizes 1.0mm - 16mm
| Flute Type | Spiral |
| Drill Diameter | 1.8mm |
| MFR Part No. | SWT1255018A |
| Flute Length | 22mm |
| Number of Pieces | 10 |
| Shank Diameter Tolerance | F11 |
| Overall Length | 46mm |
| Manufacturer Grade | DIN338 |
| Material | HSS |
| Number of Flutes | 2 |
| Series | 1004 |
| Drill Diameter Tolerance | H8 |
| ISO Category | K | M | P |
| Helix Type | Normal Helix |
| Helix Angle | 28\u00b0 |
| Shank Type | Straight |
| Coolant Delivery | External |
| Web Thickness | Form A |
| Cutting Direction | Right Hand |
| Drill Diameter Metric | 1.8mm |
| Point Type | Thinned Chisel Edge |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Point Angle | 118\u00b0 |
| Finish/Coating | TiN |
| Depth x Diameter Ratio | 4xD |
| Flute Construction | Ground flutes |
| Material Grade | HSS |
