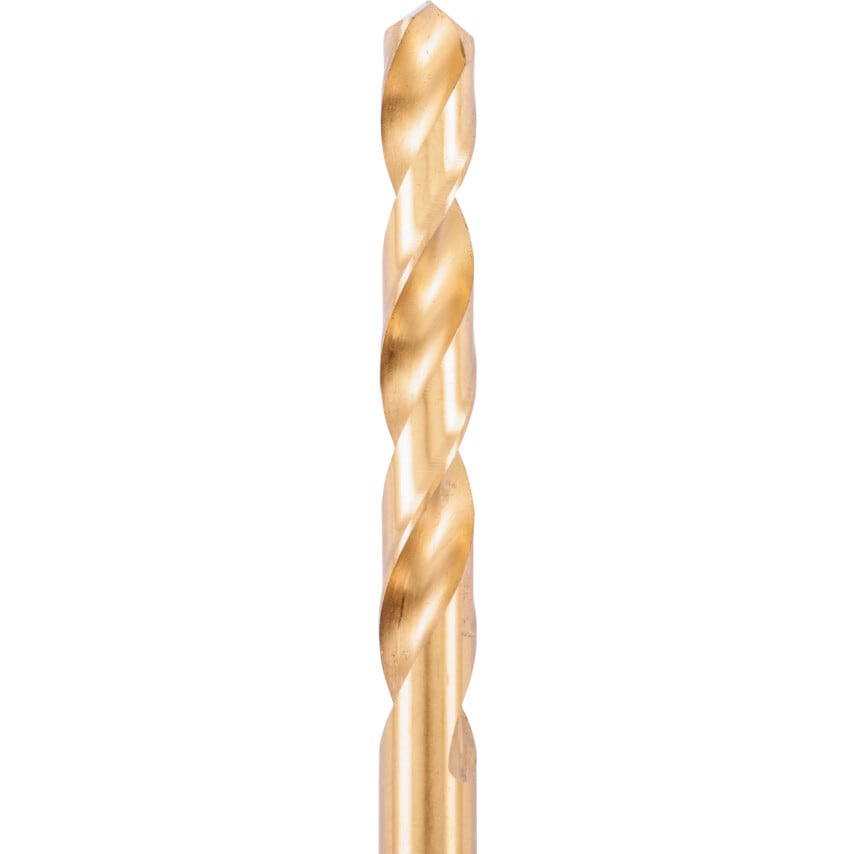

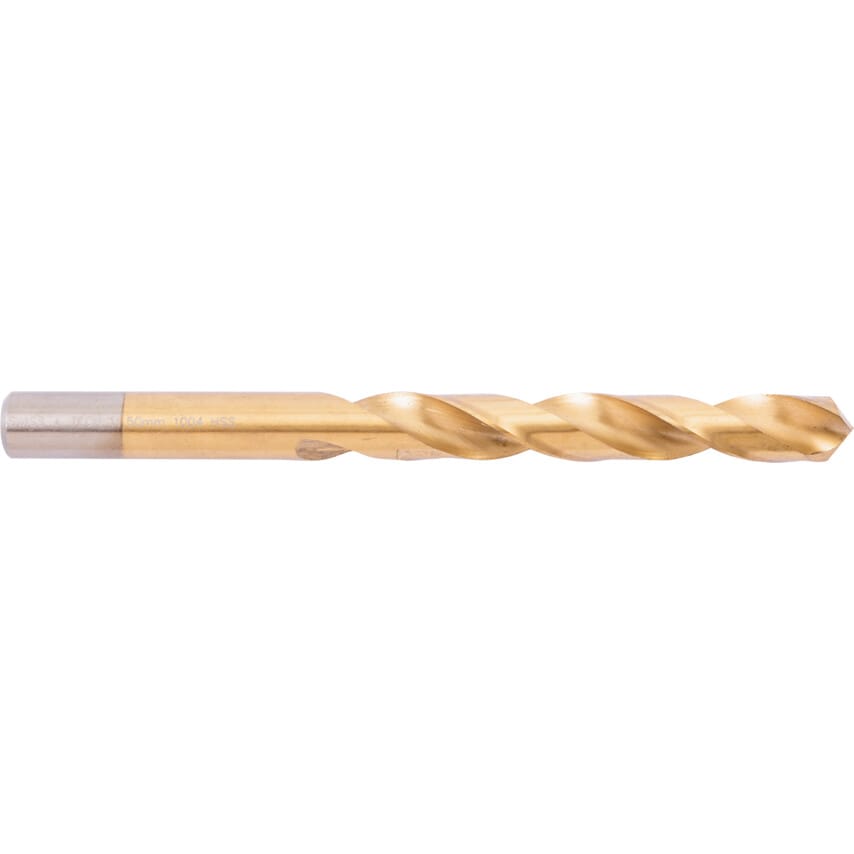

Swiss+Tech HSS Straight Shank TiN Tipped Jobber Drills are coated in a durable Titanium Nitrile at the tip for optimal tool life and performance when undertaking cutting applications. Their ground flute construction and bright body gives a more precise finish and therefore better cutting precision, making them ideal for use with steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron.
Features and Benefits
Hardy TiN tipped coating for optimal performance and prolonged lifespan
Bright body with ground flutes offers excellent precision when cutting
118 for excellent positional accuracy
Standards
Manufactured to BS 328, DIN 338
Notes
Suitable for the machining of:
Steel and cast steel (alloyed and non-alloyed)
Grey cast iron, graphite and malleable cast iron
Available in sizes 1.0mm - 16mm
| Flute Length | 94mm |
| Web Thickness | Form A | Standard |
| Number of Flutes | 2 |
| Point Angle | 118\u00b0 |
| Drill Diameter | 11.5mm |
| Drill Diameter Tolerance | H8 |
| Point Type | Thinned Chisel Edge |
| Flute Type | Spiral |
| Series | 1004 |
| Finish/Coating | TiN |
| ISO Category | K | M | P |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Number of Pieces | 5 |
| Cutting Direction | Right Hand |
| Material Grade | HSS |
| Overall Length | 142mm |
| Drill Diameter Metric | 11.5mm |
| Depth x Diameter Ratio | 4xD |
| Helix Type | Normal Helix |
| Manufacturer Grade | DIN338 |
| Shank Type | Straight |
| MFR Part No. | SWT1255115A |
| Flute Construction | Ground flutes |
| Shank Diameter Tolerance | F11 |
| Coolant Delivery | External |
| Helix Angle | 28\u00b0 |
| Material | HSS |
