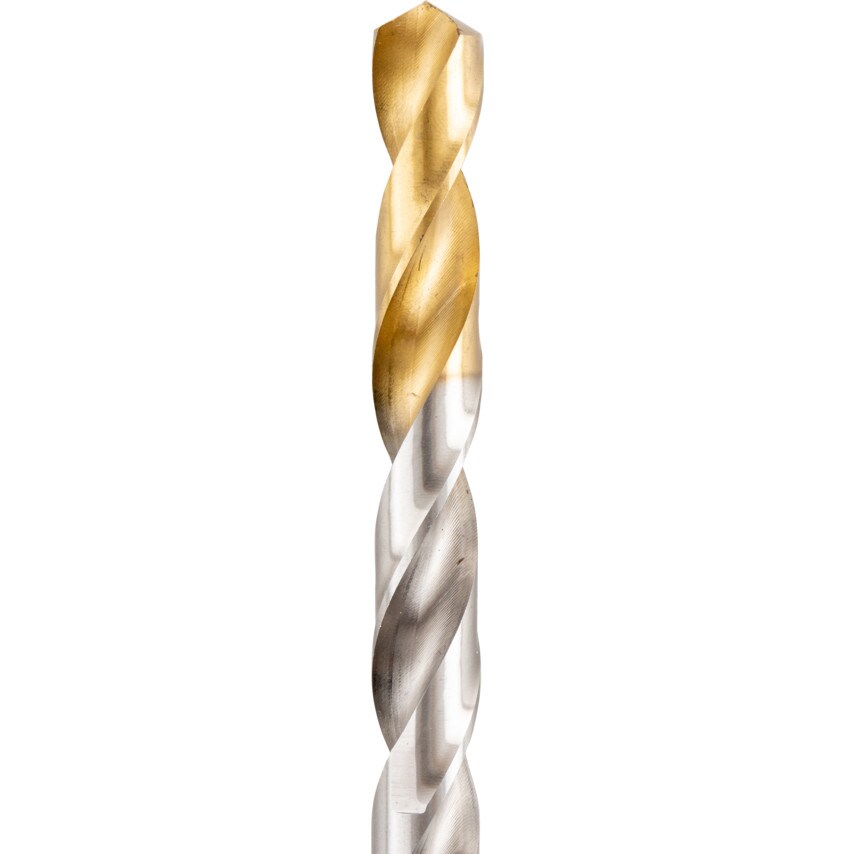

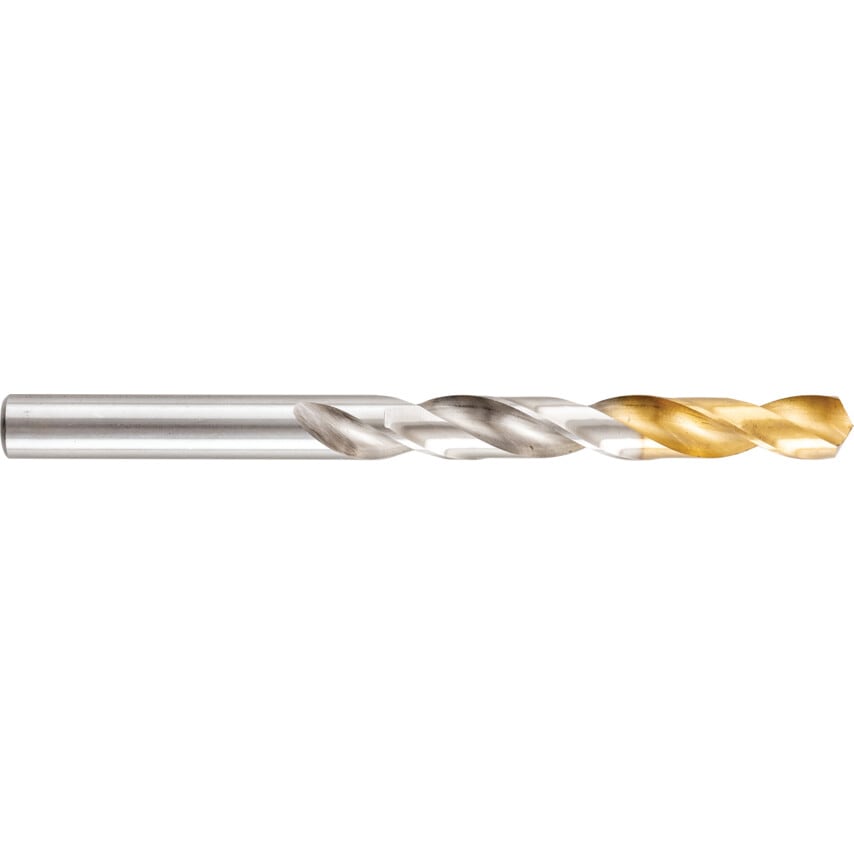

Swiss+Tech HSS Straight Shank TiN Tipped Jobber Drills are coated in a durable Titanium Nitrile at the tip for optimal tool life and performance when undertaking cutting applications. Their ground flute construction and bright body gives a more precise finish and therefore better cutting precision, making them ideal for use with steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron.
Features and Benefits
Hardy TiN tipped coating for optimal performance and prolonged lifespan
Bright body with ground flutes offers excellent precision when cutting
118 for excellent positional accuracy
Standards
Manufactured to BS 328, DIN 338
Notes
Suitable for the machining of:
Steel and cast steel (alloyed and non-alloyed)
Grey cast iron, graphite and malleable cast iron
Available in sizes 1.0mm - 16mm
| Point Angle | 118\u00b0 |
| Series | 1004 |
| Shank Diameter Tolerance | F11 |
| Drill Diameter Metric | 11mm |
| Number of Flutes | 2 |
| Flute Construction | Ground flutes |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Drill Diameter Tolerance | H8 |
| Manufacturer Grade | DIN338 |
| Coolant Delivery | External |
| Number of Pieces | 5 |
| Helix Angle | 28\u00b0 |
| Helix Type | Normal Helix |
| Overall Length | 142mm |
| Web Thickness | Form A | Standard |
| Material | HSS |
| Flute Length | 94mm |
| Flute Type | Spiral |
| Depth x Diameter Ratio | 4xD |
| Drill Diameter | 11mm |
| Point Type | Thinned Chisel Edge |
| Shank Type | Straight |
| Cutting Direction | Right Hand |
| ISO Category | K | M | P |
| Finish/Coating | TiN |
| Material Grade | HSS |
| MFR Part No. | SWT1255110A |
