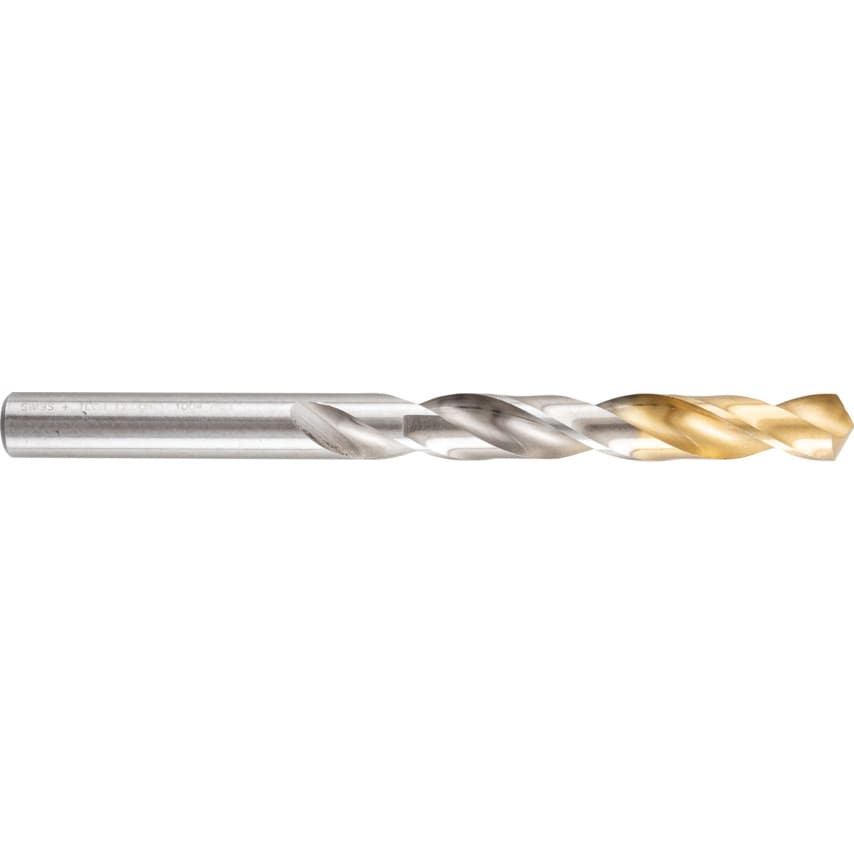

Swiss+Tech HSS Straight Shank TiN Tipped Jobber Drills are coated in a durable Titanium Nitrile at the tip for optimal tool life and performance when undertaking cutting applications. Their ground flute construction and bright body gives a more precise finish and therefore better cutting precision, making them ideal for use with steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron.
Features and Benefits
Hardy TiN tipped coating for optimal performance and prolonged lifespan
Bright body with ground flutes offers excellent precision when cutting
118 for excellent positional accuracy
Standards
Manufactured to BS 328, DIN 338
Notes
Suitable for the machining of:
Steel and cast steel (alloyed and non-alloyed)
Grey cast iron, graphite and malleable cast iron
Available in sizes 1.0mm - 16mm
| MFR Part No. | SWT1255036A |
| ISO Category | K | M | P |
| Coolant Delivery | External |
| Manufacturer Grade | DIN338 |
| Material | HSS |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Overall Length | 70mm |
| Drill Diameter Tolerance | H8 |
| Shank Diameter Tolerance | F11 |
| Helix Type | Normal Helix |
| Finish/Coating | TiN |
| Series | 1004 |
| Cutting Direction | Right Hand |
| Drill Diameter Metric | 3.6mm |
| Material Grade | HSS |
| Point Type | Thinned Chisel Edge |
| Helix Angle | 28\u00b0 |
| Flute Length | 39mm |
| Shank Type | Straight |
| Depth x Diameter Ratio | 4xD |
| Number of Pieces | 10 |
| Flute Construction | Ground flutes |
| Web Thickness | Form A |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Drill Diameter | 3.6mm |
| Number of Flutes | 2 |
