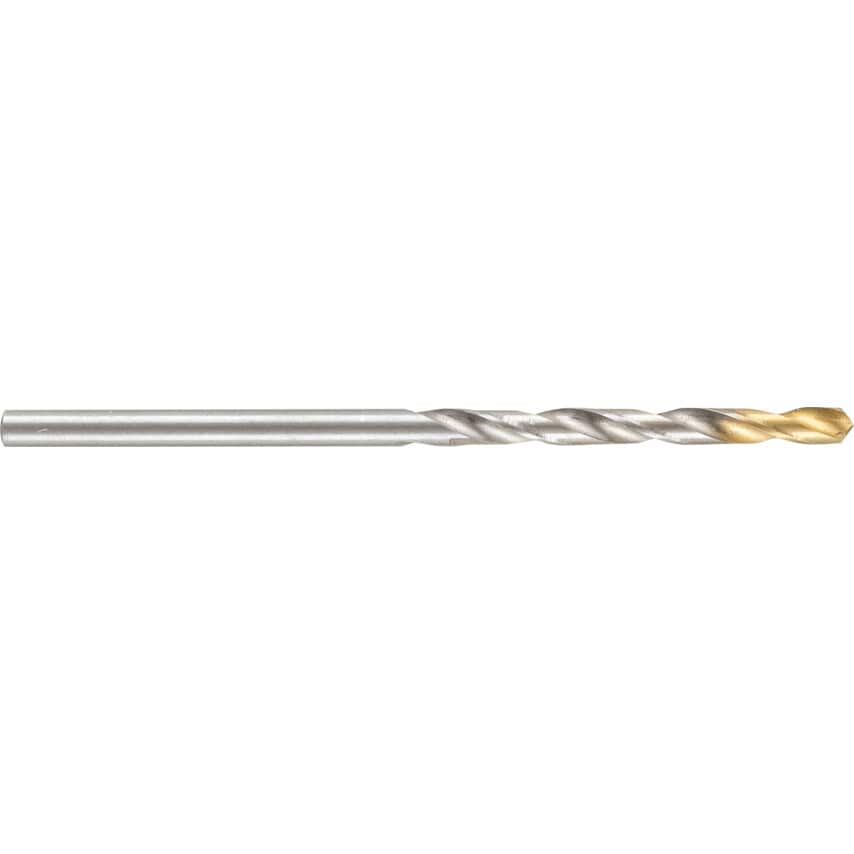

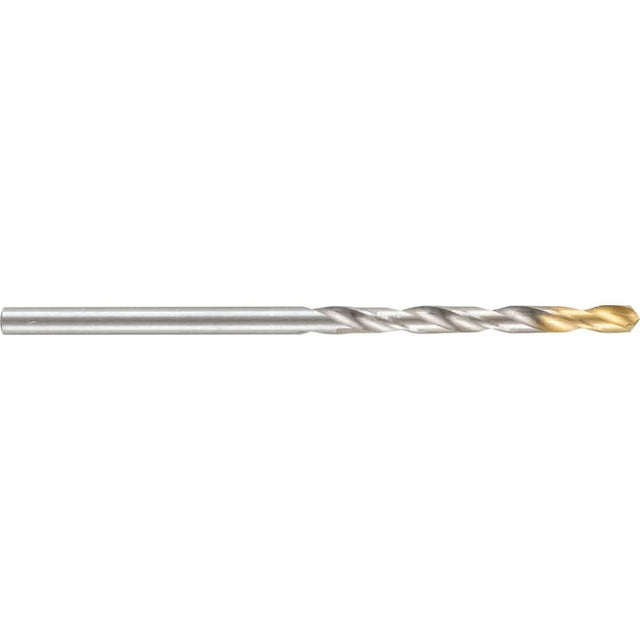

Swiss+Tech HSS Straight Shank TiN Tipped Jobber Drills are coated in a durable Titanium Nitrile at the tip for optimal tool life and performance when undertaking cutting applications. Their ground flute construction and bright body gives a more precise finish and therefore better cutting precision, making them ideal for use with steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron.
Features and Benefits

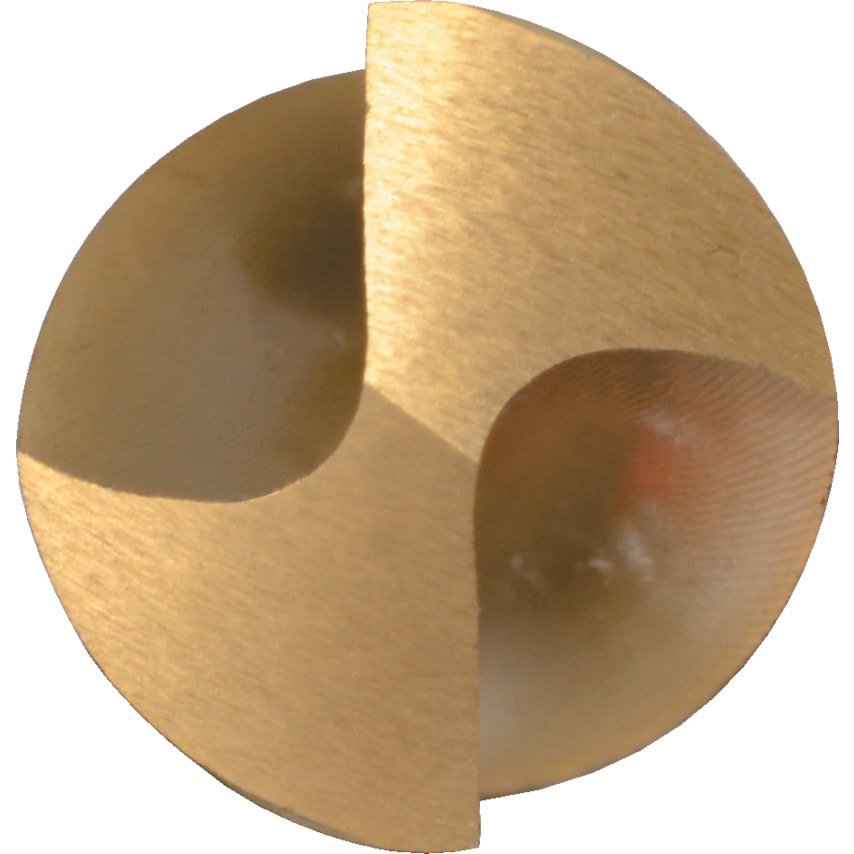

Hardy TiN tipped coating for optimal performance and prolonged lifespan
Bright body with ground flutes offers excellent precision when cutting
118 for excellent positional accuracy
Standards
Manufactured to BS 328, DIN 338
Notes
Suitable for the machining of:
Steel and cast steel (alloyed and non-alloyed)
Grey cast iron, graphite and malleable cast iron
Available in sizes 1.0mm - 16mm
| Number of Flutes | 2 |
| Shank Type | Straight |
| ISO Category | K | M | P |
| Material Grade | HSS |
| Helix Type | Normal Helix |
| Depth x Diameter Ratio | 4xD |
| Cutting Direction | Right Hand |
| Flute Construction | Ground flutes |
| Shank Diameter Tolerance | F11 |
| Point Angle | 118\u00b0 |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Flute Length | 30mm |
| Finish/Coating | TiN |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Manufacturer Grade | DIN338 |
| MFR Part No. | SWT1255025A |
| Drill Diameter | 2.5mm |
| Helix Angle | 28\u00b0 |
| Web Thickness | Form A |
| Series | 1004 |
| Number of Pieces | 10 |
| Drill Diameter Metric | 2.5mm |
| Overall Length | 57mm |
| Coolant Delivery | External |
| Material | HSS |
| Point Type | Thinned Chisel Edge |
