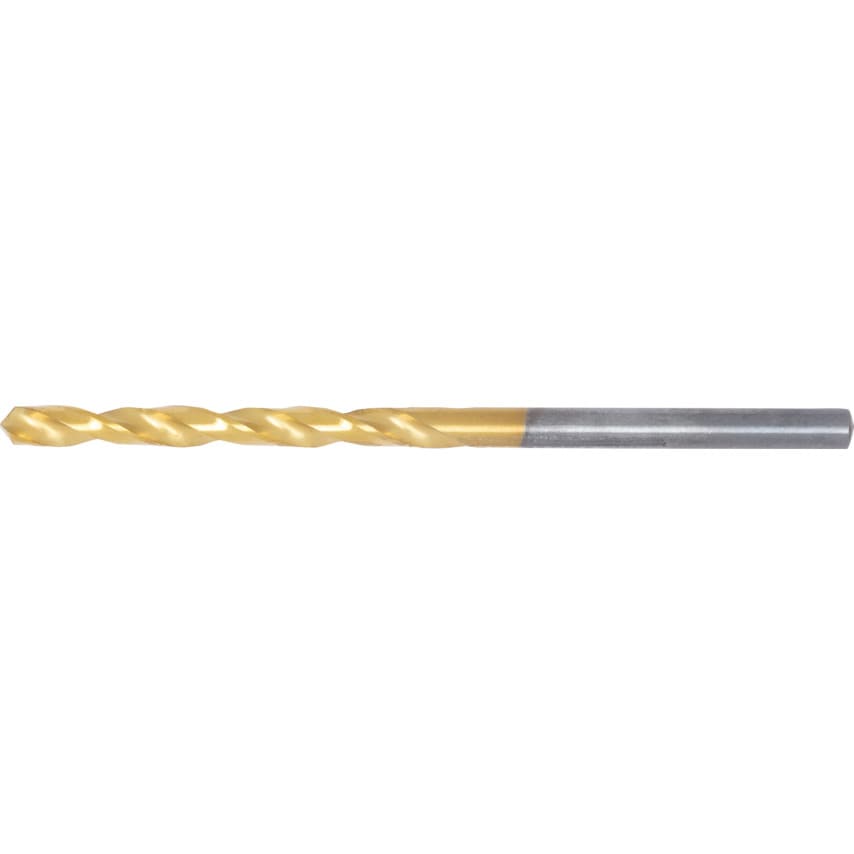

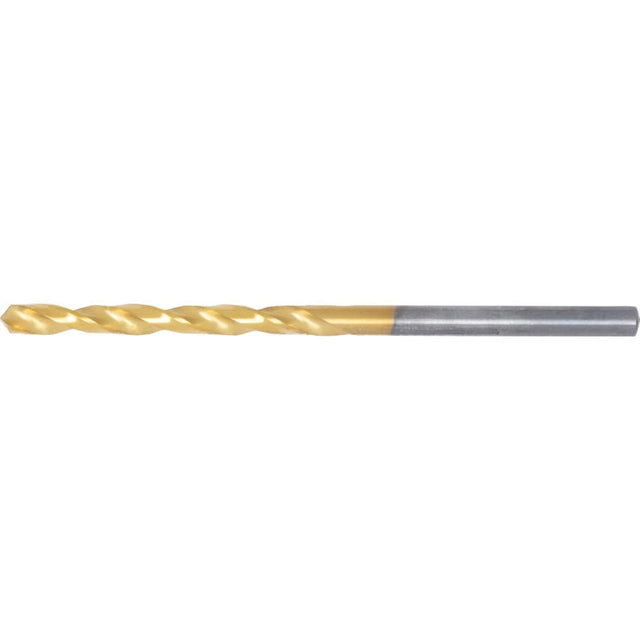

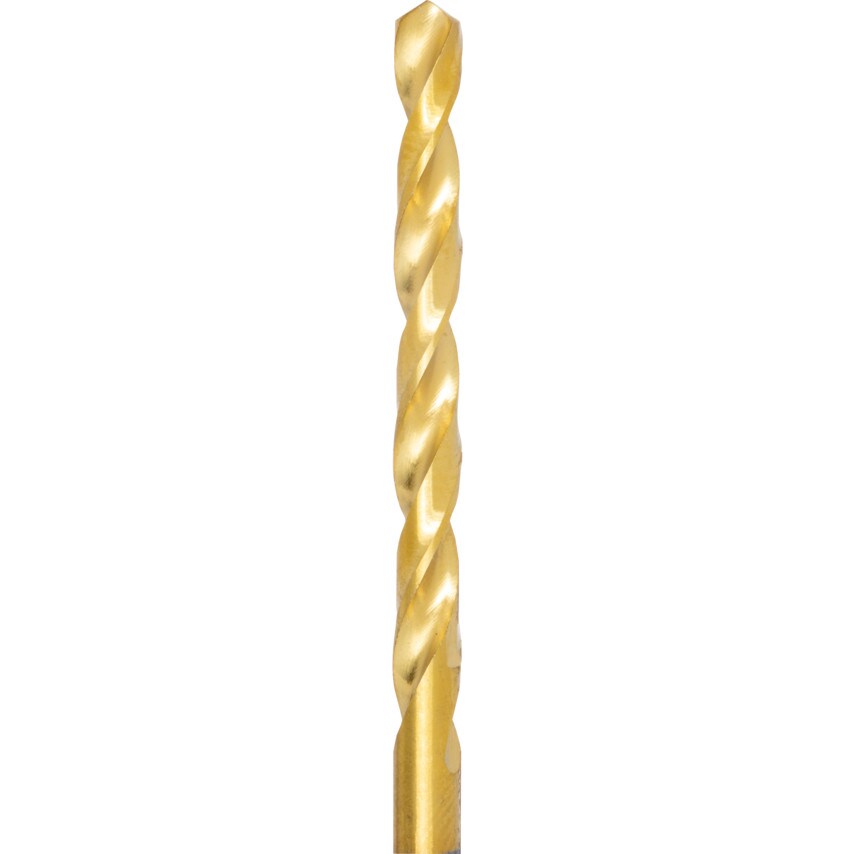

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Point Type | Thinned Chisel Edge |
| Material Grade | HSS |
| Drill Diameter Metric | 3.3mm |
| Helix Angle | 28\u00b0 |
| Flute Length | 36mm |
| Coolant Delivery | External |
| Helix Type | Normal Helix |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Number of Pieces | 10 |
| ISO Category | K | M | P |
| Shank Type | Straight |
| Web Thickness | Standard |
| Flute Construction | Ground flutes |
| Drill Diameter | 3.3mm |
| Finish/Coating | TiN |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| Product Type | Jobber Drills |
| Depth x Diameter Ratio | 4xD |
| Series | 1001 |
| Overall Length | 65mm |
| Number of Flutes | 2 |
| Manufacturer Grade | DIN338 |
| Material | HSS |
| Shank Diameter Tolerance | F11 |
