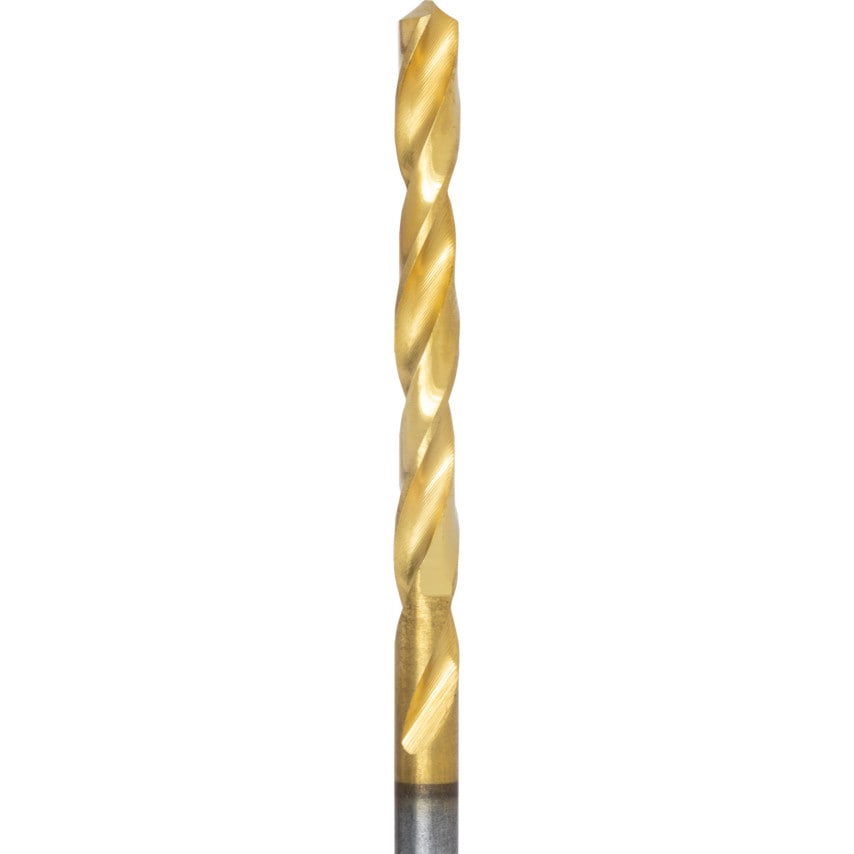

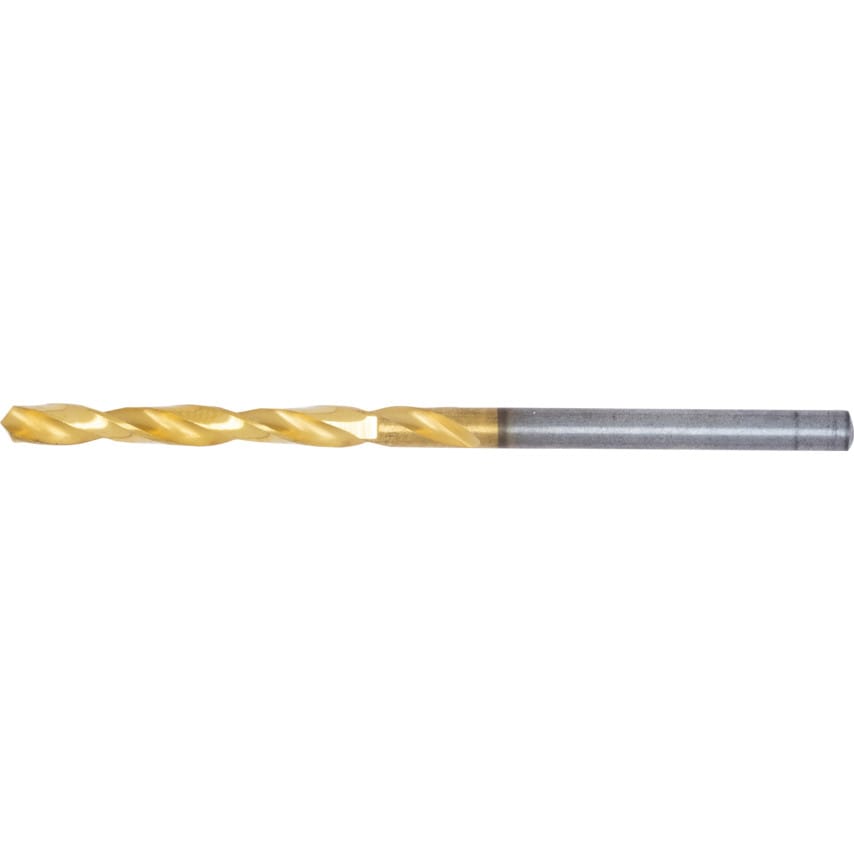

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Material | HSS |
| Flute Type | Spiral |

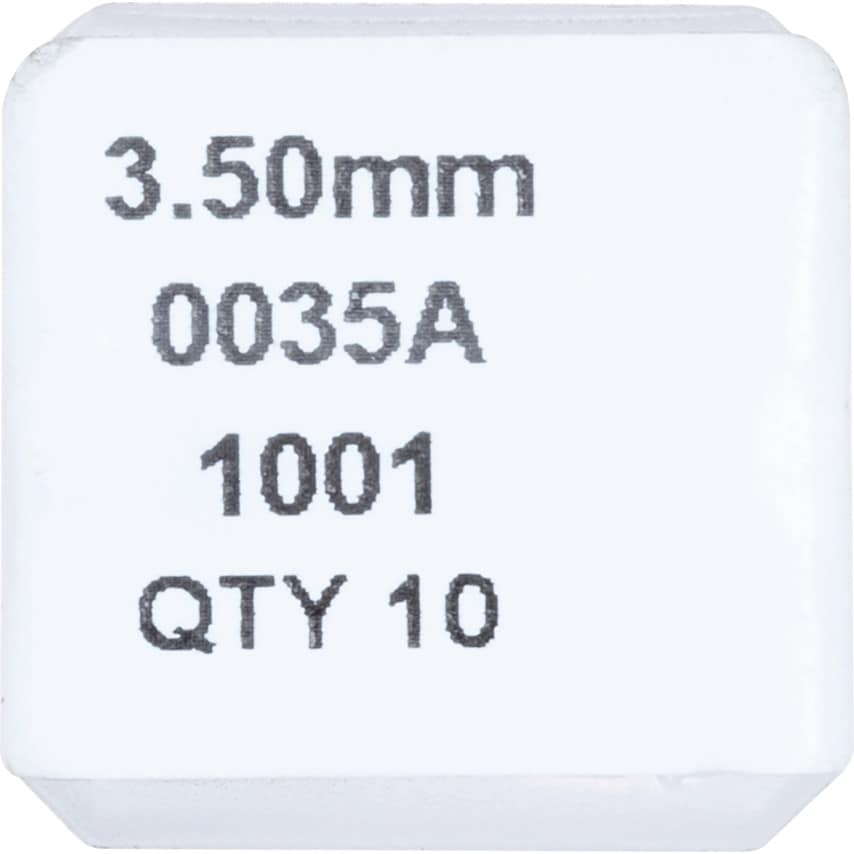

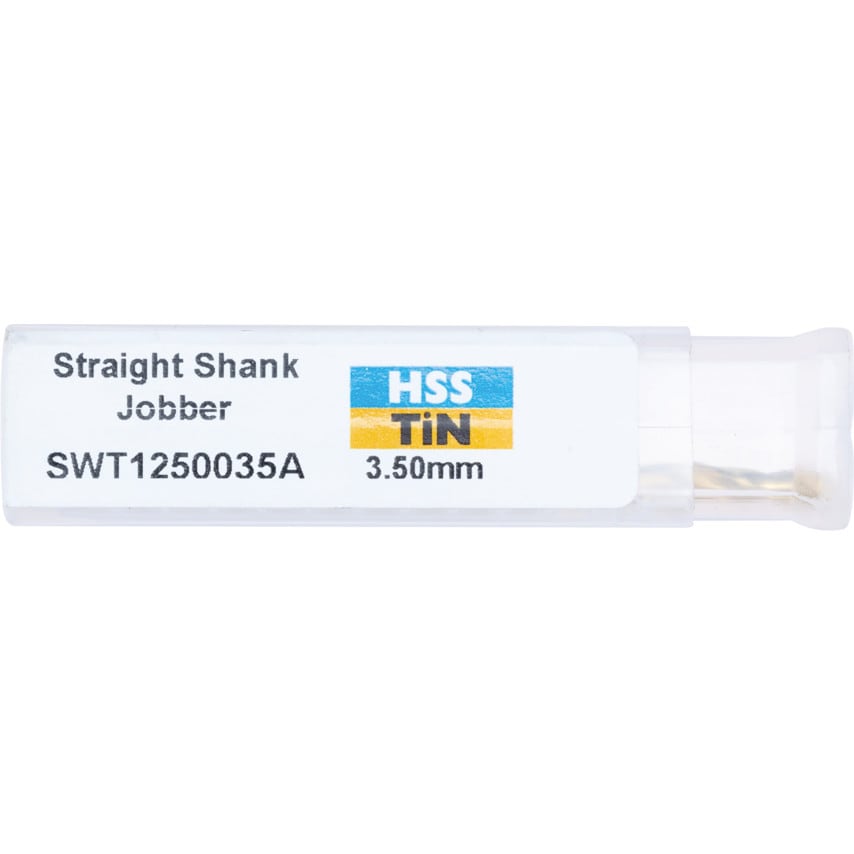

| Number of Pieces | 10 |
| Drill Diameter | 3.5mm |
| Drill Diameter Metric | 3.5mm |
| Manufacturer Grade | DIN338 |
| Shank Type | Straight |
| Drill Diameter Tolerance | H8 |
| Point Angle | 118\u00b0 |
| Product Type | Jobber Drills |
| Shank Diameter Tolerance | F11 |
| Point Type | Thinned Chisel Edge |
| Helix Type | Normal Helix |
| Number of Flutes | 2 |
| Flute Length | 39mm |
| Series | 1001 |
| Overall Length | 70mm |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Helix Angle | 28\u00b0 |
| Finish/Coating | TiN |
| Material Grade | HSS |
| Cutting Direction | Right Hand |
| ISO Category | K | M | P |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Depth x Diameter Ratio | 4xD |
| Web Thickness | Standard |
