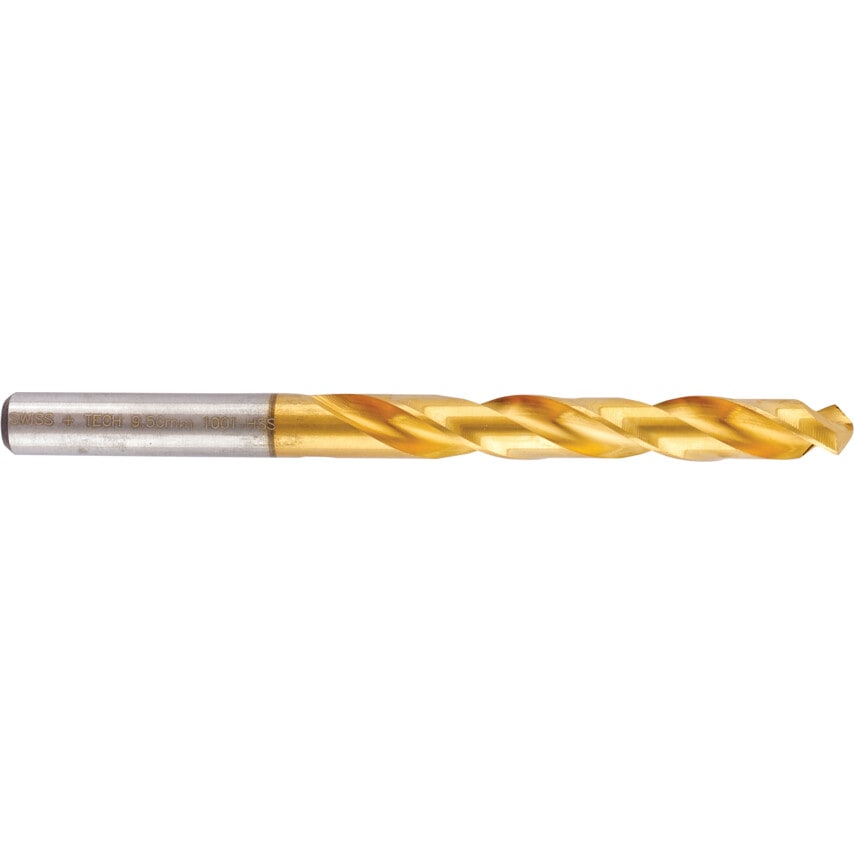

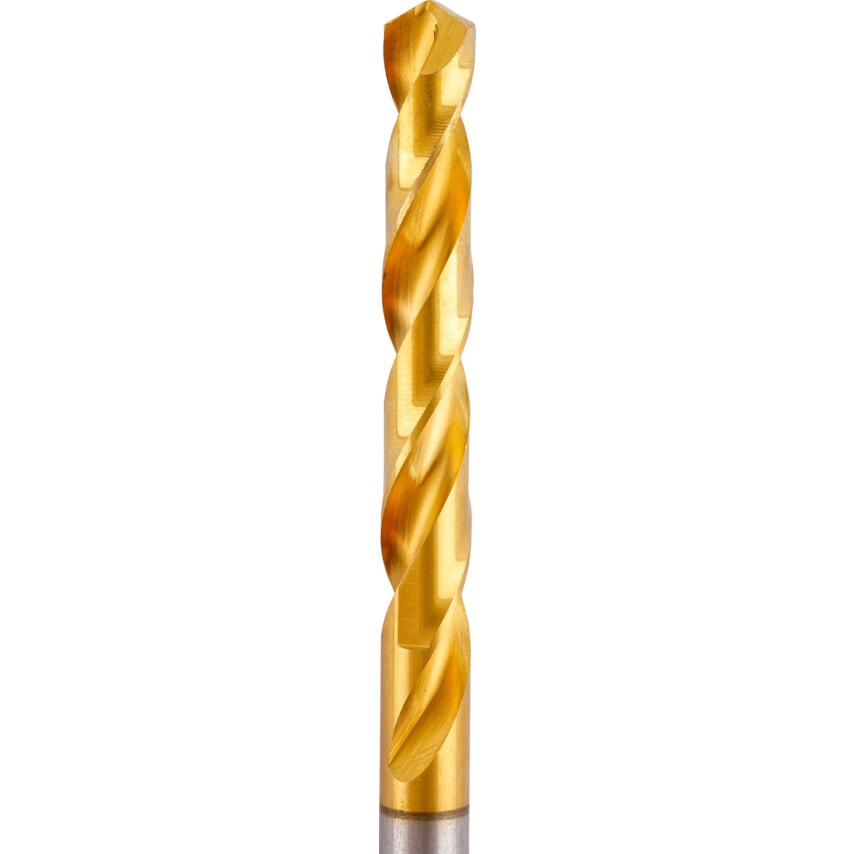

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Coolant Delivery | External |
| Series | 1001 |
| Number of Pieces | 5 |
| Number of Flutes | 2 |
| Product Type | Jobber Drills |
| Manufacturer Grade | DIN338 |
| Drill Diameter Metric | 9.5mm |
| Flute Construction | Ground flutes |
| Helix Angle | 28\u00b0 |
| Depth x Diameter Ratio | 4xD |
| Overall Length | 125mm |
| Helix Type | Normal Helix |
| Point Type | Thinned Chisel Edge |
| Drill Diameter | 9.5mm |
| Web Thickness | Standard |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Shank Type | Straight |
| Material | HSS |
| Drill Diameter Tolerance | H8 |
| Material Grade | HSS |
| Flute Length | 81mm |
| Point Angle | 118\u00b0 |
| Shank Diameter Tolerance | F11 |
| ISO Category | K | M | P |
| Flute Type | Spiral |
| Finish/Coating | TiN |
| Cutting Direction | Right Hand |
