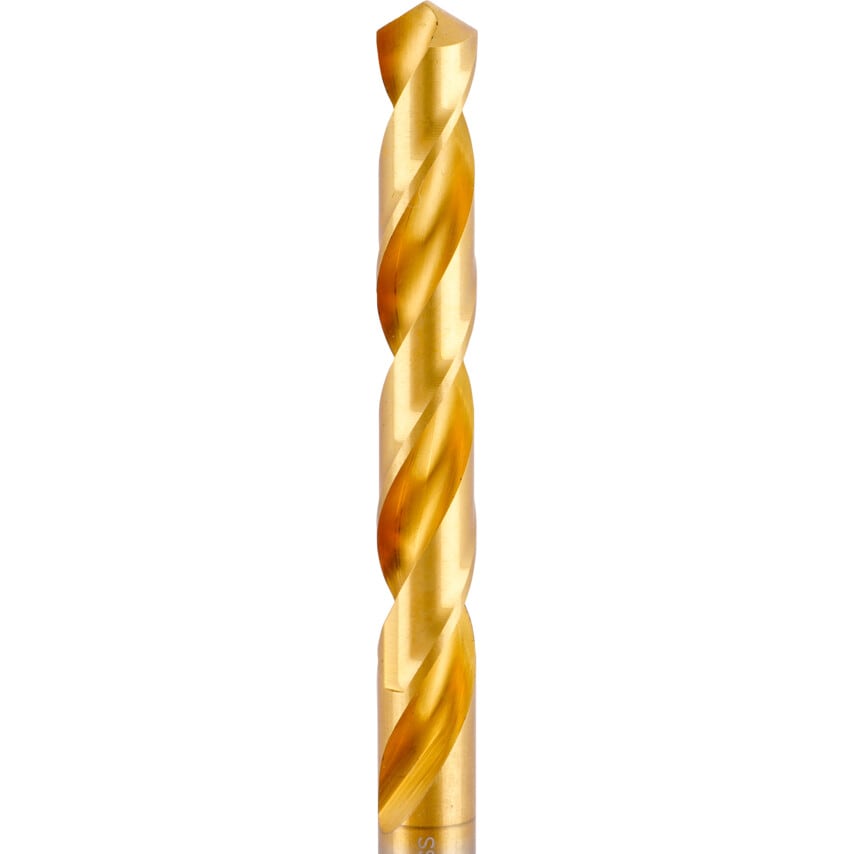

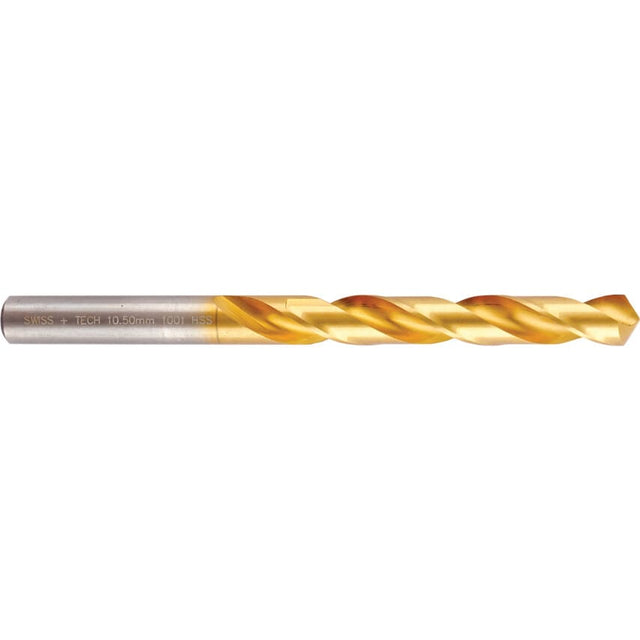

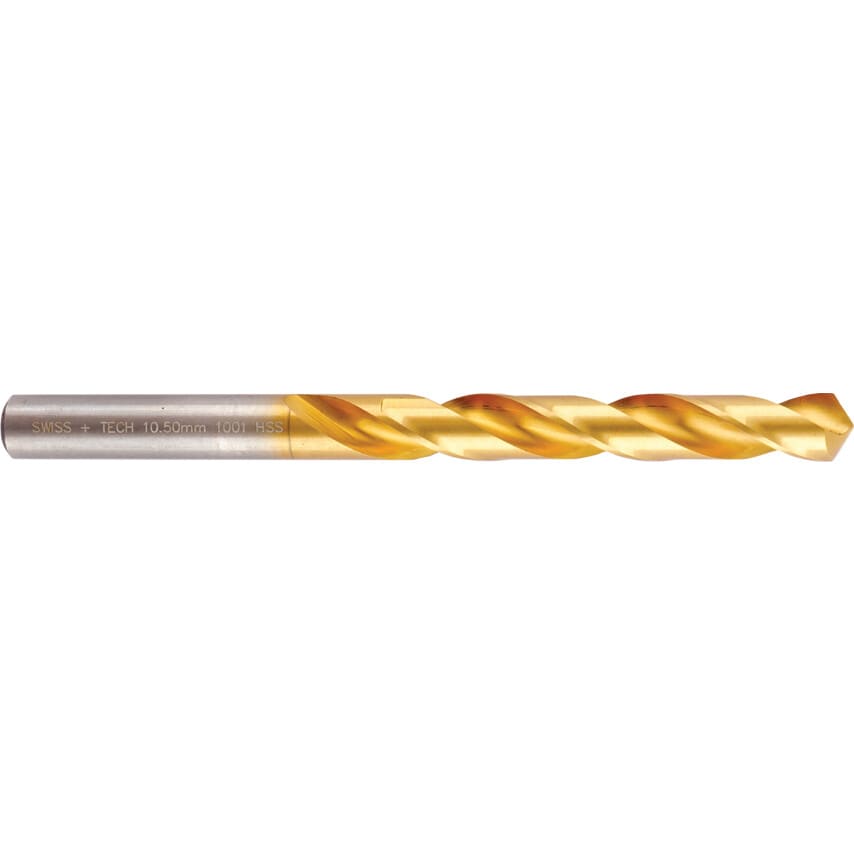

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Web Thickness | Standard |
| Drill Diameter Metric | 10.5mm |
| Overall Length | 133mm |
| Shank Diameter Tolerance | F11 |
| Product Type | Jobber Drills |
| Series | 1001 |
| Material Grade | HSS |
| Flute Construction | Ground flutes |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Finish/Coating | TiN |
| Flute Length | 87mm |
| Point Angle | 118\u00b0 |
| Shank Type | Straight |
| Helix Type | Normal Helix |
| Coolant Delivery | External |
| Depth x Diameter Ratio | 4xD |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Material | HSS |
| Manufacturer Grade | DIN338 |
| Drill Diameter | 10.5mm |
| Number of Flutes | 2 |
| Point Type | Thinned Chisel Edge |
| Helix Angle | 28\u00b0 |
| Drill Diameter Tolerance | H8 |
| ISO Category | K | M | P |
| Number of Pieces | 5 |
