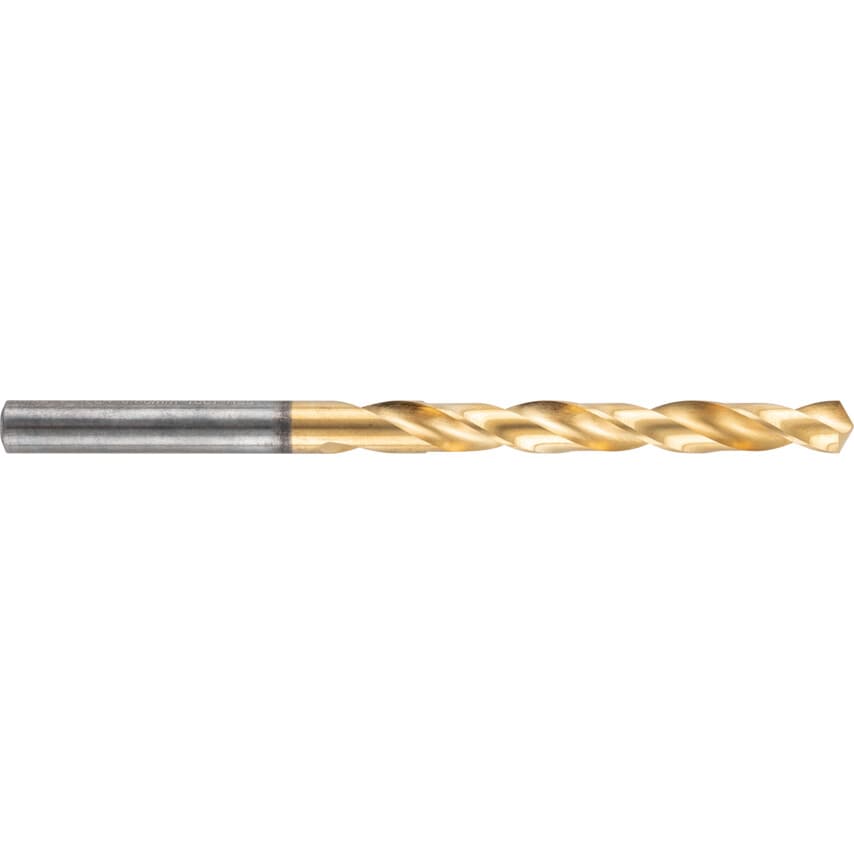

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Coolant Delivery | External |
| Point Type | Thinned Chisel Edge |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Shank Type | Straight |
| Flute Length | 43mm |
| Manufacturer Grade | DIN338 |
| Series | 1001 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Drill Diameter | 3.8mm |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| Material Grade | HSS |
| Product Type | Jobber Drills |
| Drill Diameter Metric | 3.8mm |
| Finish/Coating | TiN |
| Helix Angle | 28\u00b0 |
| Point Angle | 118\u00b0 |
| ISO Category | K | M | P |
| Number of Pieces | 10 |
| Helix Type | Normal Helix |
| Depth x Diameter Ratio | 4xD |
| Material | HSS |
| Web Thickness | Standard |
| Shank Diameter Tolerance | F11 |
| Flute Construction | Ground flutes |
| Overall Length | 75mm |
