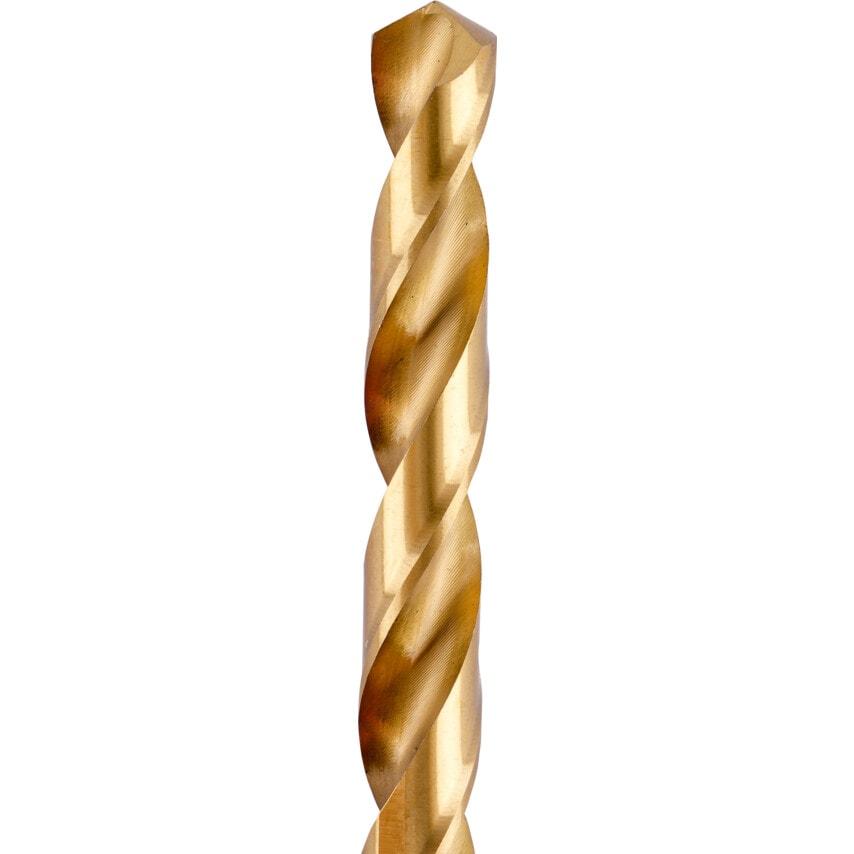

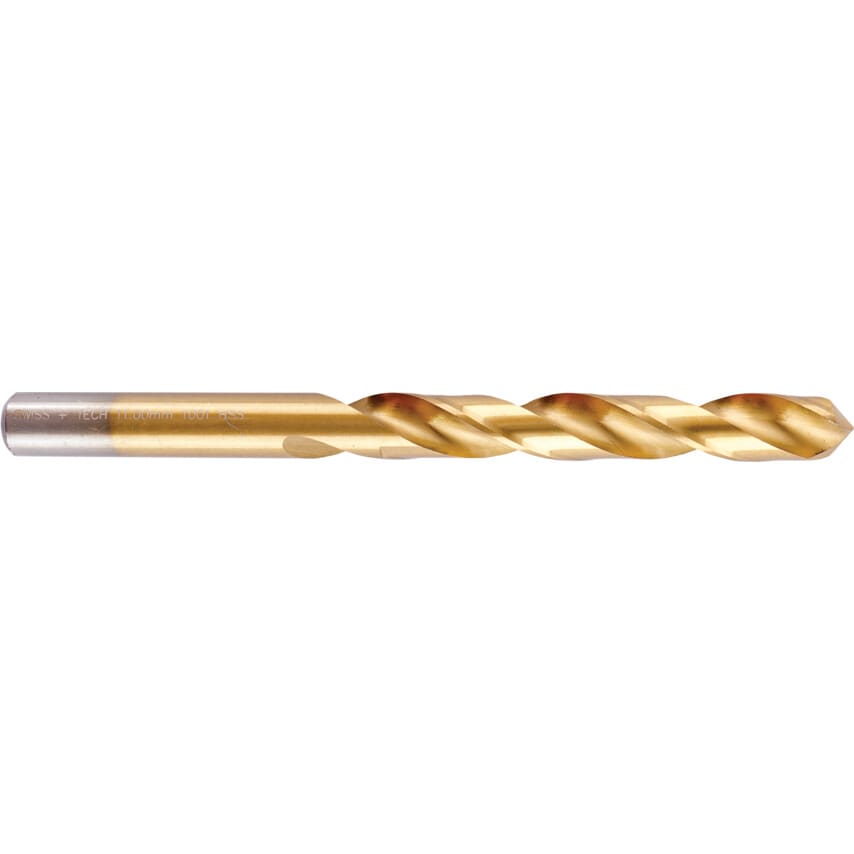

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Flute Length | 94mm |
| Product Type | Jobber Drills |
| Number of Pieces | 5 |
| Cutting Direction | Right Hand |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Drill Diameter Metric | 11mm |
| Shank Diameter Tolerance | F11 |
| Drill Diameter Tolerance | H8 |
| Series | 1001 |
| Manufacturer Grade | DIN338 |
| Flute Construction | Ground flutes |
| Drill Diameter | 11mm |
| Shank Type | Straight |
| Point Angle | 118\u00b0 |
| Helix Angle | 28\u00b0 |
| Material Grade | HSS |
| Web Thickness | Standard |
| Point Type | Thinned Chisel Edge |
| Flute Type | Spiral |
| ISO Category | K | M | P |
| Depth x Diameter Ratio | 4xD |
| Number of Flutes | 2 |
| Helix Type | Normal Helix |
| Overall Length | 142mm |
| Material | HSS |
| Coolant Delivery | External |
| Finish/Coating | TiN |
