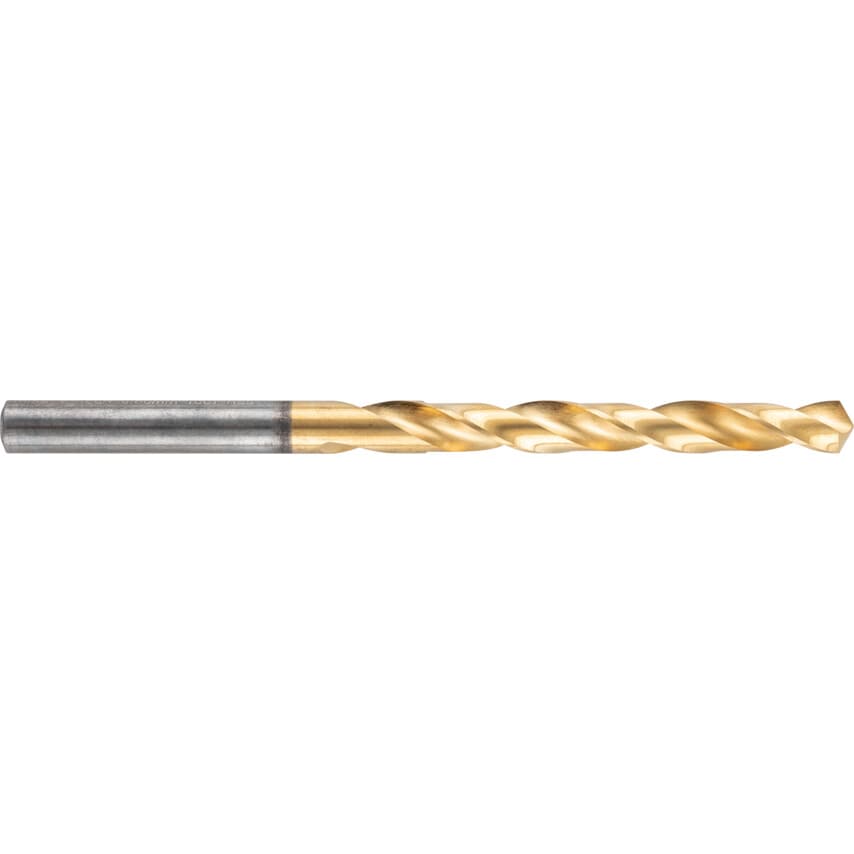

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Series | 1001 |
| Overall Length | 86mm |
| Drill Diameter | 5.3mm |
| Helix Angle | 28\u00b0 |
| Shank Diameter Tolerance | F11 |
| Flute Length | 52mm |
| Point Type | Thinned Chisel Edge |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Material | HSS |
| Drill Diameter Metric | 5.3mm |
| Drill Diameter Tolerance | H8 |
| Product Type | Jobber Drills |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| Helix Type | Normal Helix |
| Web Thickness | Standard |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Finish/Coating | TiN |
