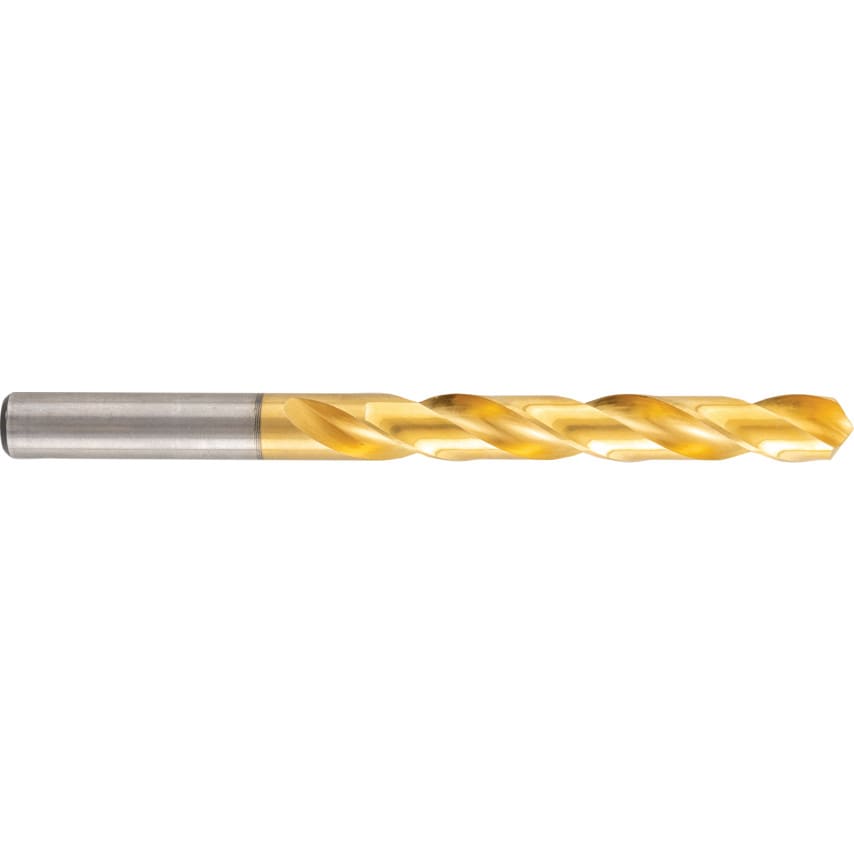

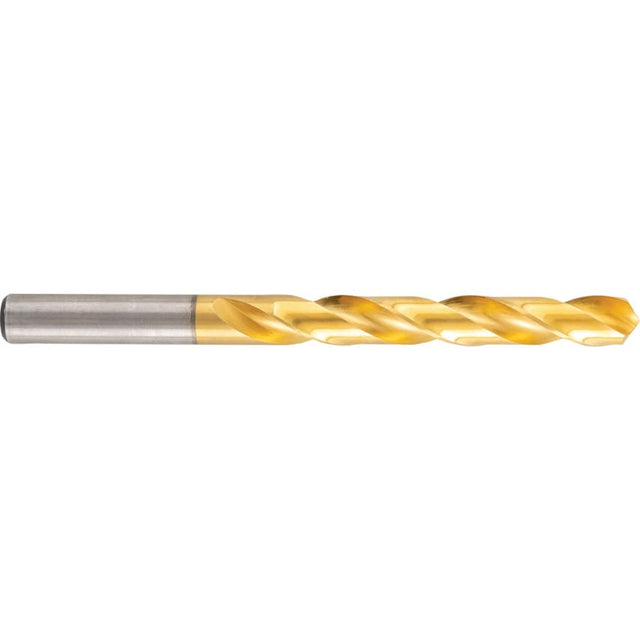

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Material | HSS |
| Flute Construction | Ground flutes |
| Material Grade | HSS |
| Flute Type | Spiral |
| Series | 1001 |
| Web Thickness | Standard |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| ISO Category | K | M | P |
| Helix Type | Normal Helix |
| Finish/Coating | TiN |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Delivery | External |
| Point Type | Thinned Chisel Edge |
| Manufacturer Grade | DIN338 |
| Drill Diameter Metric | 10.2mm |
| Flute Length | 87mm |
| Helix Angle | 28\u00b0 |
| Drill Diameter Tolerance | H8 |
| Product Type | Jobber Drills |
| Point Angle | 118\u00b0 |
| Shank Diameter Tolerance | F11 |
| Depth x Diameter Ratio | 4xD |
| Number of Pieces | 5 |
| Overall Length | 133mm |
| Drill Diameter | 10.2mm |
