£0.11

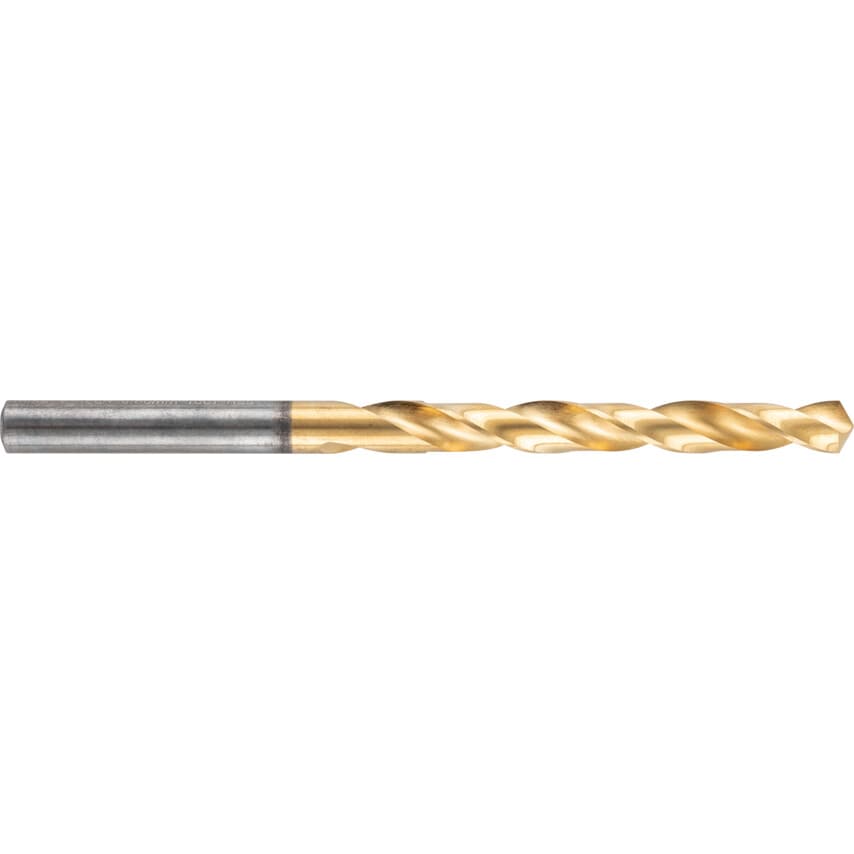

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
Point Angle | 118\u00b0 |
Number of Pieces | 10 |
Depth x Diameter Ratio | 4xD |
Overall Length | 101mm |
Helix Angle | 28\u00b0 |
Shank Diameter Tolerance | F11 |
Point Type | Thinned Chisel Edge |
Drill Diameter Metric | 6.2mm |
Web Thickness | Standard |
Finish/Coating | TiN |
Flute Length | 63mm |
Series | 1001 |
Product Type | Jobber Drills |
Flute Type | Spiral |
Standards Met | BS 328 | DIN 338 | DIN 1412A |
Flute Construction | Ground flutes |
Drill Diameter | 6.2mm |
Drill Diameter Tolerance | H8 |
Cutting Direction | Right Hand |
Coolant Delivery | External |
ISO Category | K | M | P |
Helix Type | Normal Helix |
Number of Flutes | 2 |
Material Grade | HSS |
Shank Type | Straight |
Material | HSS |
Manufacturer Grade | DIN338 |
