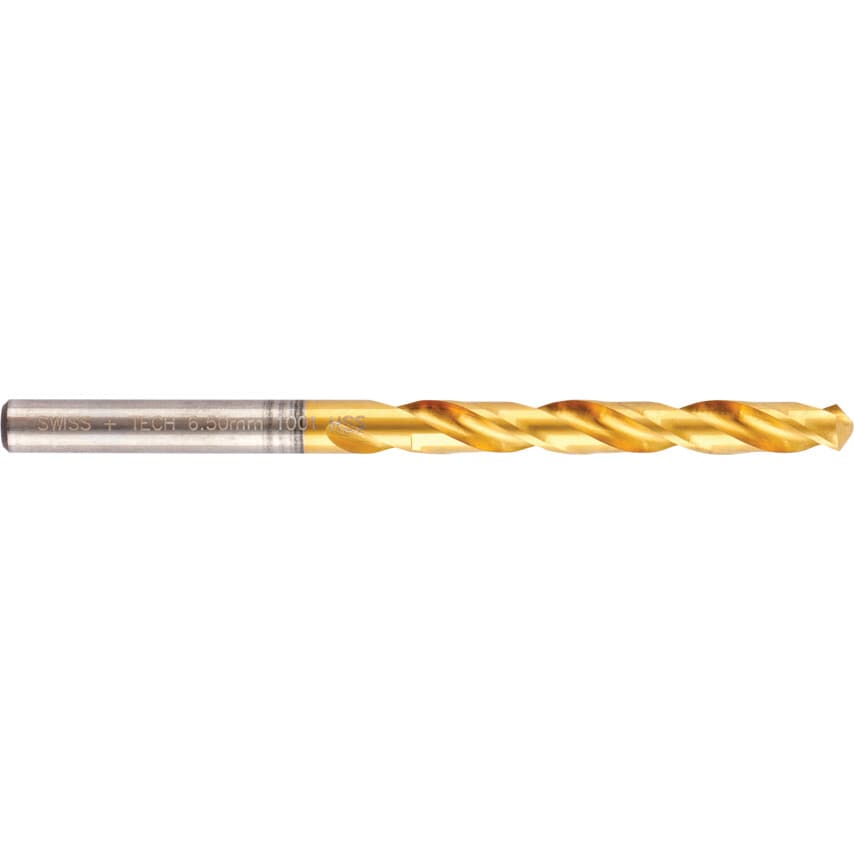

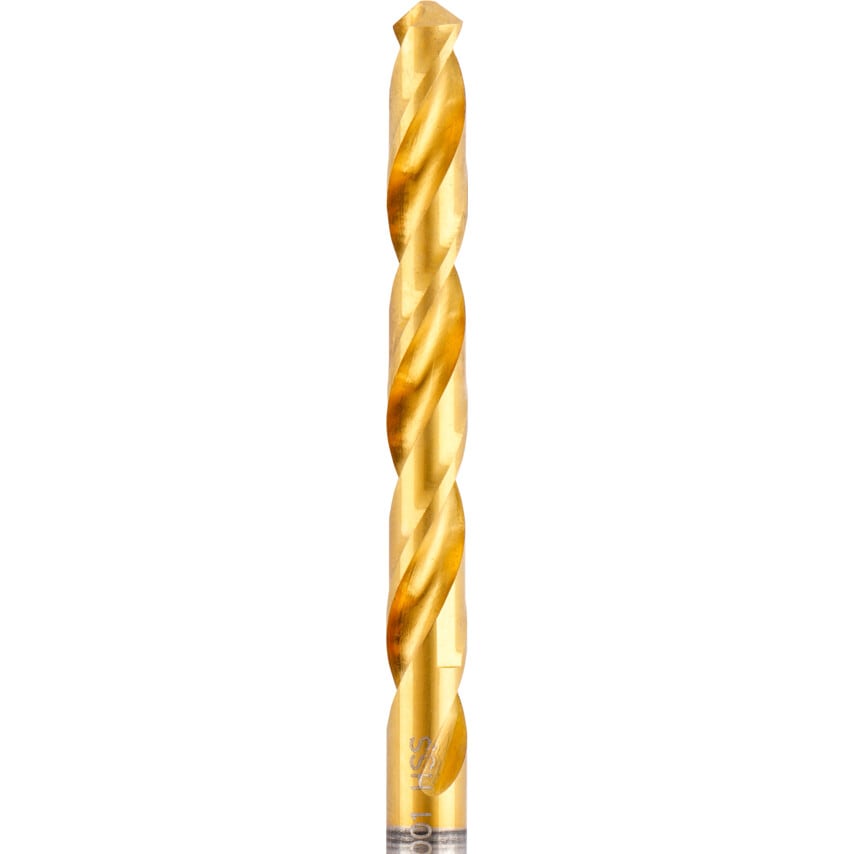

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Number of Pieces | 10 |
| Helix Type | Normal Helix |
| Drill Diameter Tolerance | H8 |
| Point Angle | 118\u00b0 |
| Shank Type | Straight |
| Coolant Delivery | External |
| Flute Length | 63mm |
| Product Type | Jobber Drills |
| Flute Type | Spiral |
| Point Type | Thinned Chisel Edge |
| Series | 1001 |
| Drill Diameter | 6.5mm |
| Cutting Direction | Right Hand |
| Helix Angle | 28\u00b0 |
| Web Thickness | Standard |
| Number of Flutes | 2 |
| Overall Length | 101mm |
| Material Grade | HSS |
| Shank Diameter Tolerance | F11 |
| Material | HSS |
| Drill Diameter Metric | 6.5mm |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Finish/Coating | TiN |
| Manufacturer Grade | DIN338 |
| Flute Construction | Ground flutes |
| ISO Category | K | M | P |
| Depth x Diameter Ratio | 4xD |
