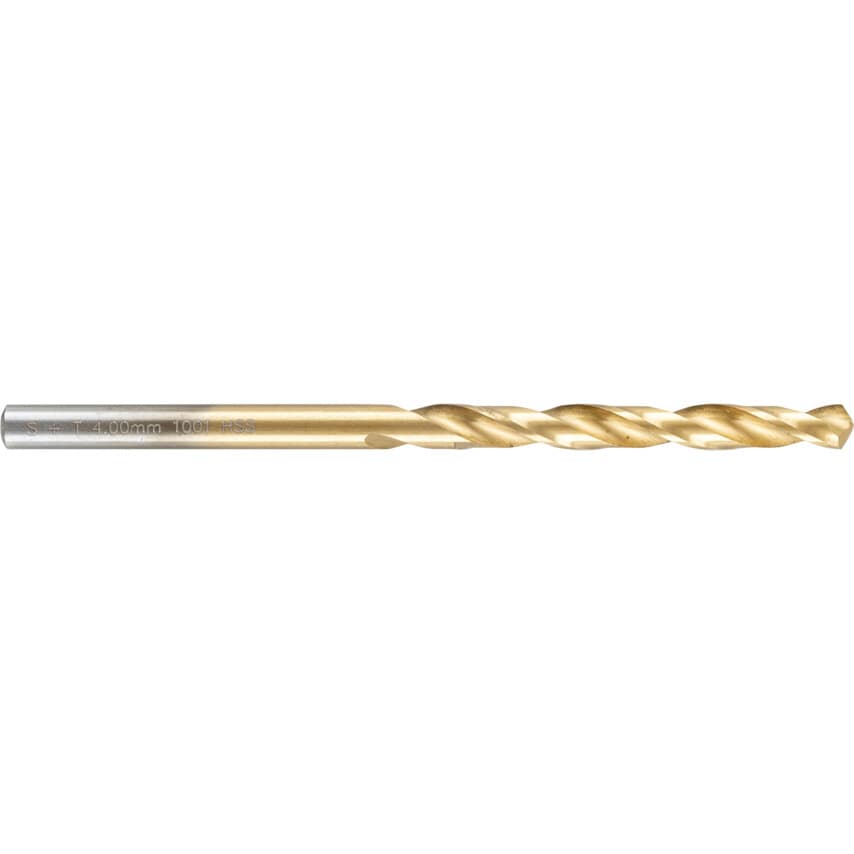

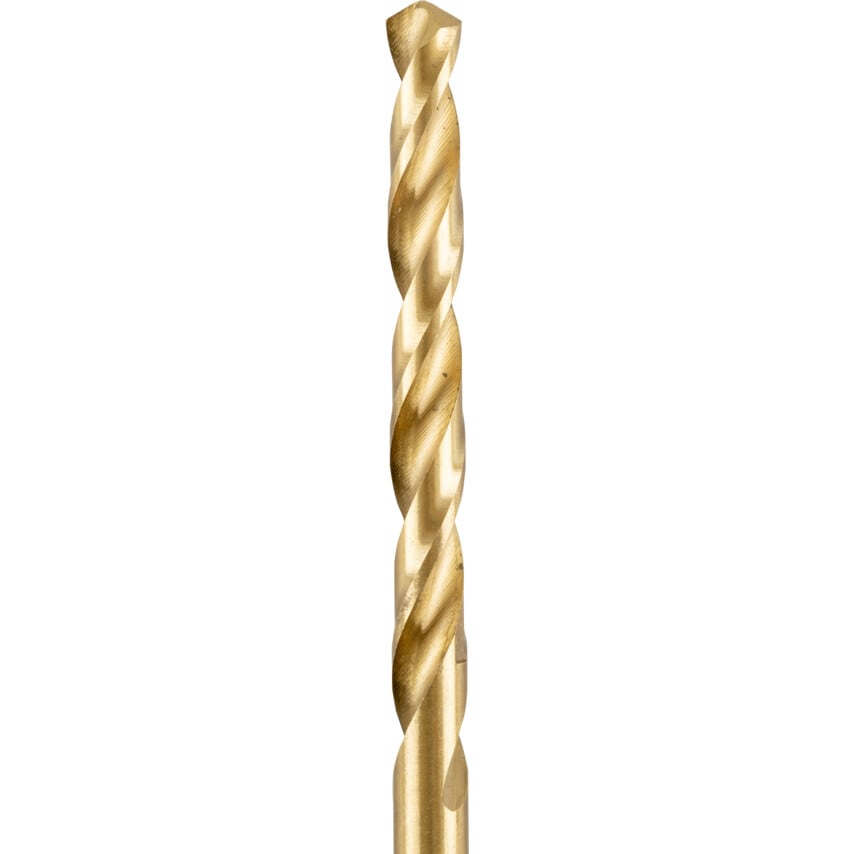

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
Overall Length | 75mm |
Web Thickness | Standard |
ISO Category | K | M | P |
Point Angle | 118\u00b0 |
Drill Diameter Metric | 4mm |
Material Grade | HSS |
Coolant Delivery | External |
Material | HSS |
Series | 1001 |
Drill Diameter Tolerance | H8 |
Shank Type | Straight |
Product Type | Jobber Drills |
Flute Type | Spiral |
Flute Construction | Ground flutes |
Manufacturer Grade | DIN338 |
Helix Angle | 28\u00b0 |
Helix Type | Normal Helix |
Point Type | Thinned Chisel Edge |
Drill Diameter | 4mm |
Shank Diameter Tolerance | F11 |
Flute Length | 43mm |
Number of Pieces | 10 |
Finish/Coating | TiN |
Number of Flutes | 2 |
Standards Met | BS 328 | DIN 338 | DIN 1412A |
Depth x Diameter Ratio | 4xD |
Cutting Direction | Right Hand |
