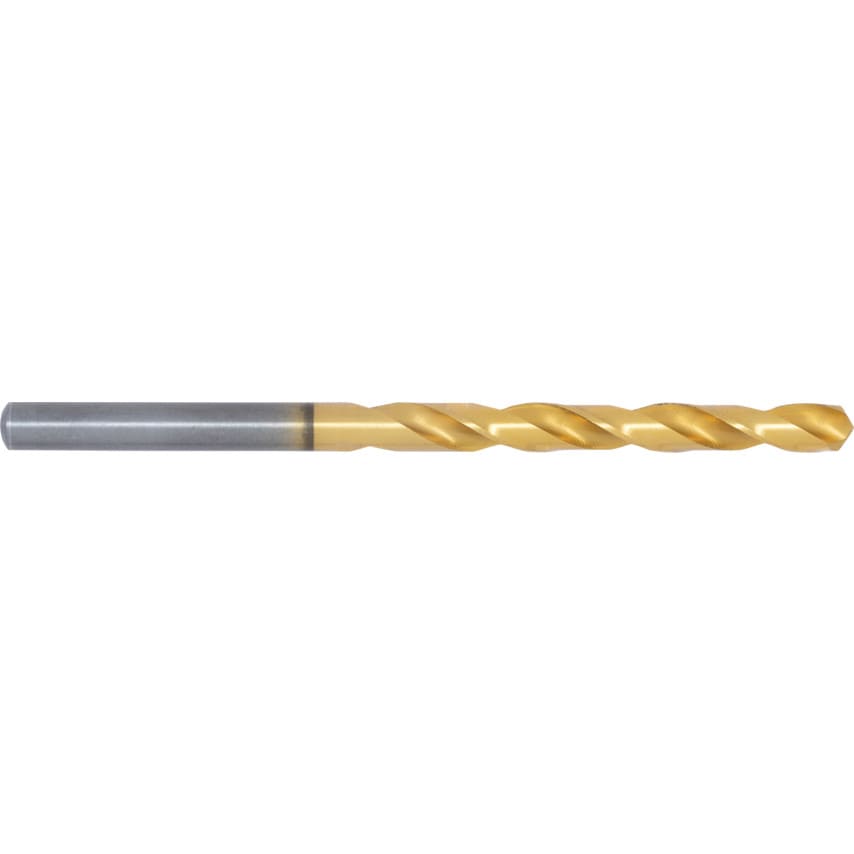

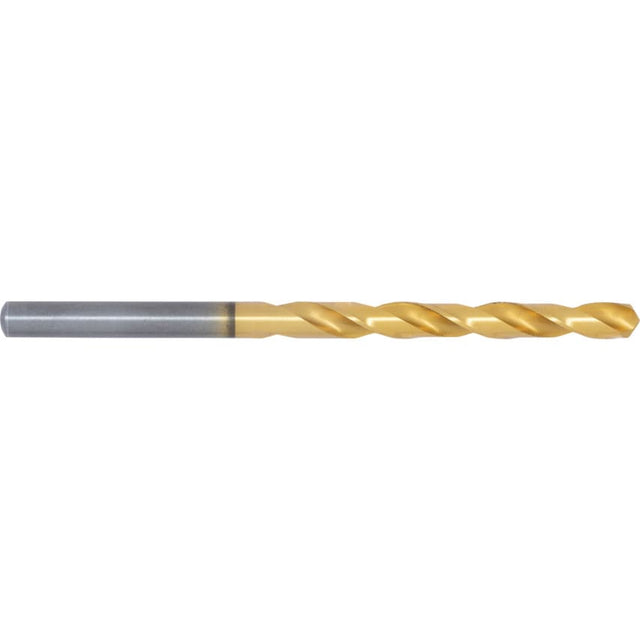

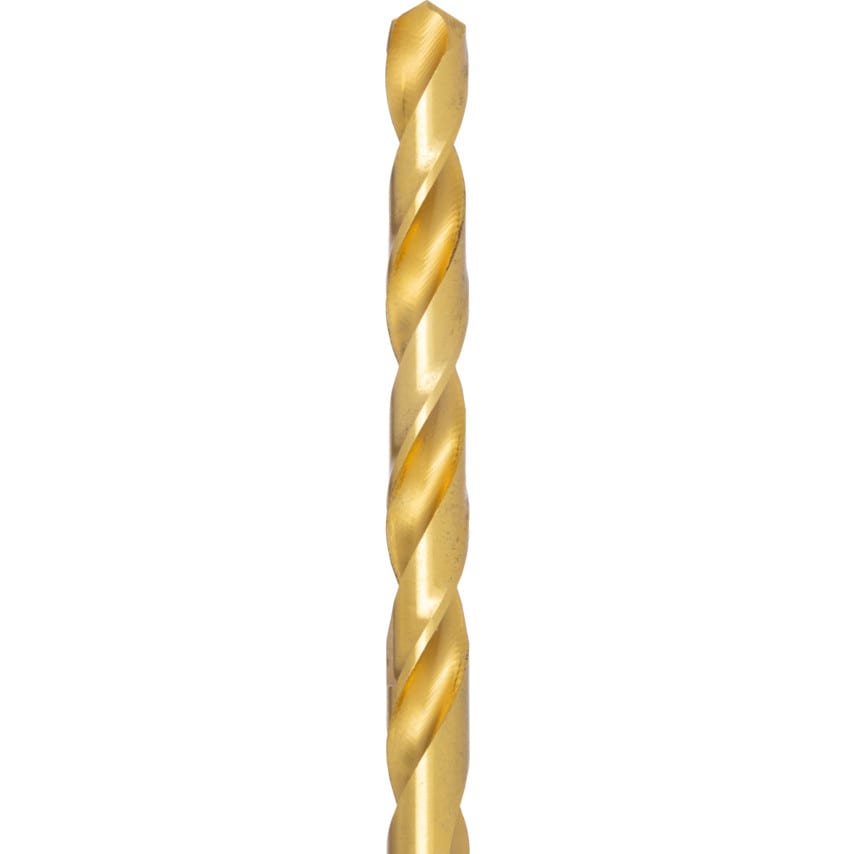

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Finish/Coating | TiN |
| Flute Type | Spiral |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Shank Type | Straight |
| Material Grade | HSS |
| Depth x Diameter Ratio | 4xD |
| Manufacturer Grade | DIN338 |
| Drill Diameter Tolerance | H8 |
| Web Thickness | Standard |
| Drill Diameter | 5mm |
| Flute Length | 52mm |
| Number of Flutes | 2 |
| Helix Angle | 28\u00b0 |

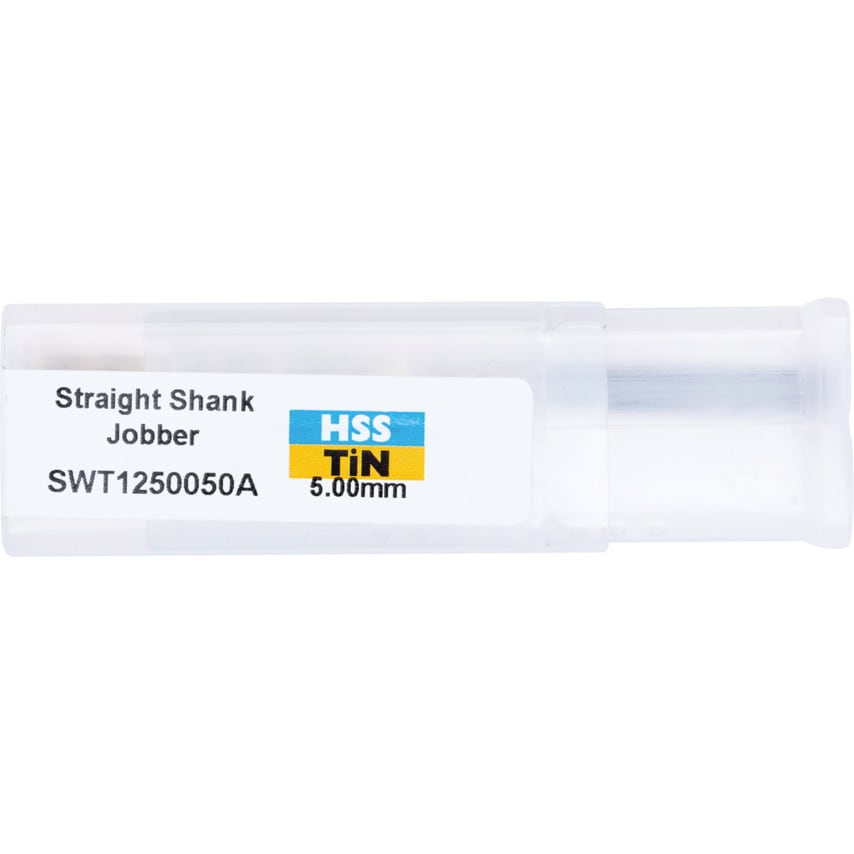

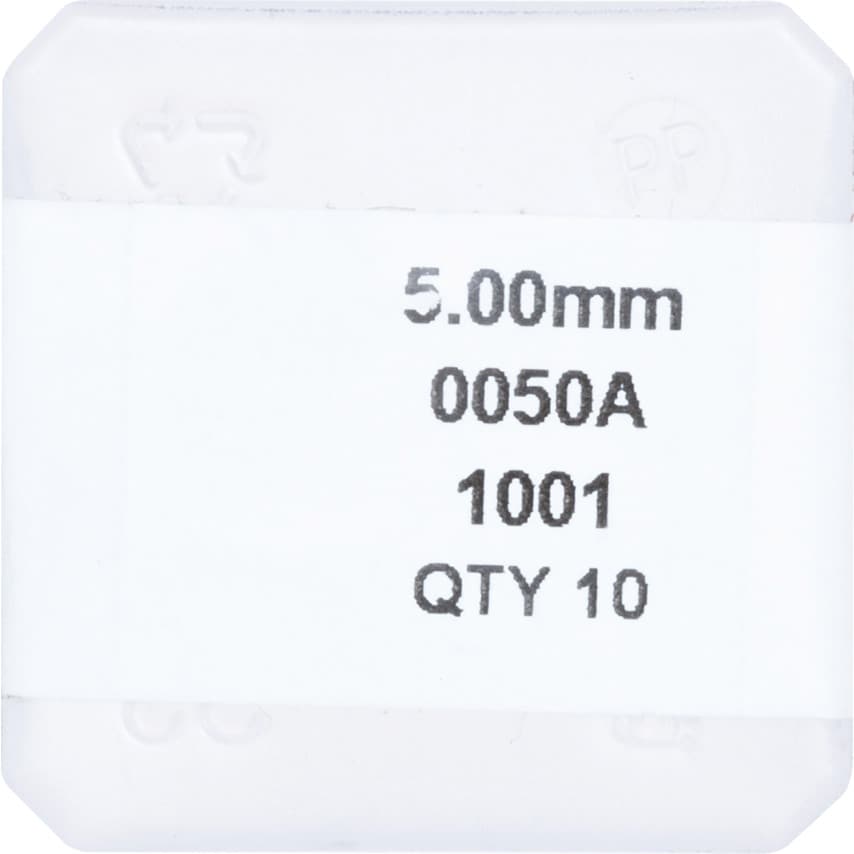

| Number of Pieces | 10 |
| Overall Length | 86mm |
| Flute Construction | Ground flutes |
| Series | 1001 |
| ISO Category | K | M | P |
| Coolant Delivery | External |
| Material | HSS |
| Point Type | Thinned Chisel Edge |
| Cutting Direction | Right Hand |
| Point Angle | 118\u00b0 |
| Helix Type | Normal Helix |
| Drill Diameter Metric | 5mm |
| Product Type | Jobber Drills |
| Shank Diameter Tolerance | F11 |
