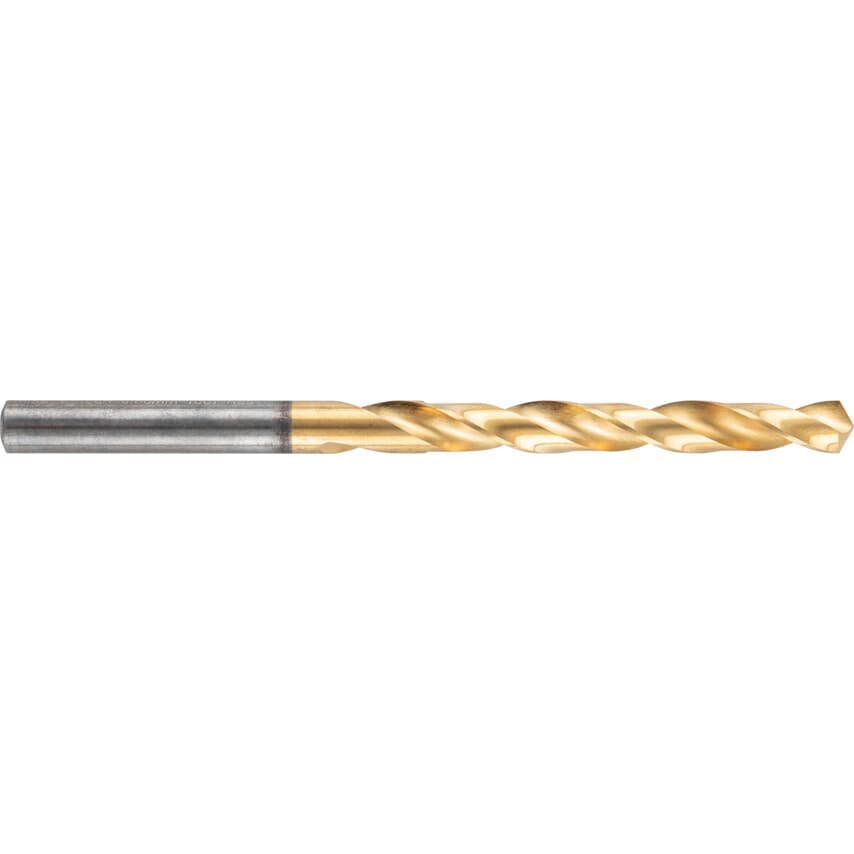

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Coolant Delivery | External |
| Helix Type | Normal Helix |
| Cutting Direction | Right Hand |
| Point Type | Thinned Chisel Edge |
| Drill Diameter Tolerance | H8 |
| Material | HSS |
| Flute Length | 94mm |
| Series | 1001 |
| Drill Diameter Metric | 11.4mm |
| Overall Length | 142mm |
| Finish/Coating | TiN |
| Drill Diameter | 11.4mm |
| Shank Diameter Tolerance | F11 |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Number of Flutes | 2 |
| Flute Construction | Ground flutes |
| Helix Angle | 28\u00b0 |
| Web Thickness | Standard |
| Product Type | Jobber Drills |
