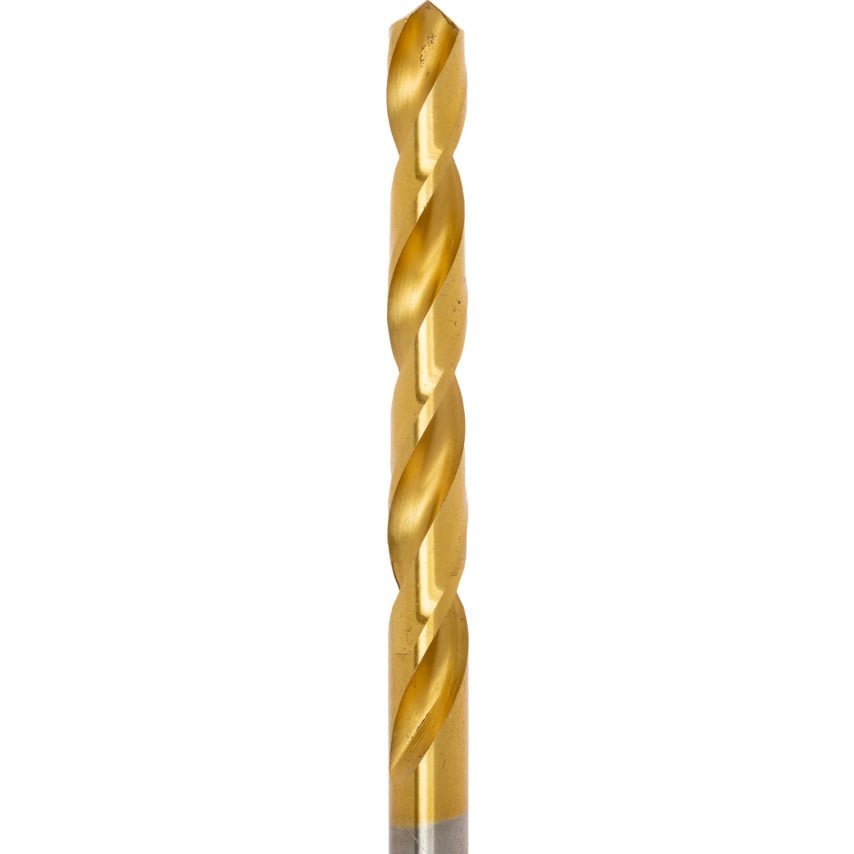

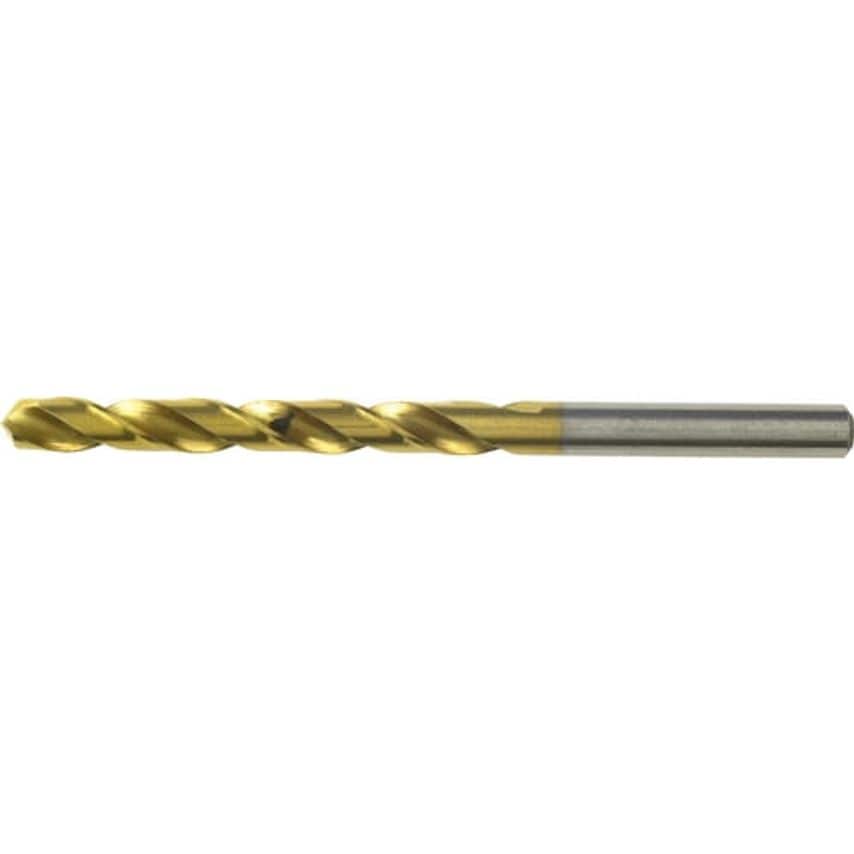

Series 1001 general purpose drill, to drill steels with a tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. TiN coating provides longer tool life.
Features and Benefits
HSS construction for increased strength
TiN coating provides longer tool life due to increased heat and wear resisitance
Ideal for general purpose use
Standards
Manufactured to DIN 338 RN, DIN 338.
| Cutting Direction | Right Hand |
| Series | 1001 |
| Number of Flutes | 2 |
| ISO Category | K | M | P |
| Material Grade | HSS |
| Coolant Delivery | External |
| Manufacturer Grade | DIN338 |
| Point Angle | 118\u00b0 |
| Point Type | Thinned Chisel Edge |
| Flute Length | 57mm |
| Helix Angle | 28\u00b0 |
| Product Type | Jobber Drills |
| Drill Diameter | 6mm |
| Flute Construction | Ground flutes |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Shank Type | Straight |
| Material | HSS |
| Number of Pieces | 10 |
| Web Thickness | Standard |
| Helix Type | Normal Helix |
| Overall Length | 93mm |
| Drill Diameter Metric | 6mm |
| Standards Met | BS 328 | DIN 338 | DIN 1412A |
| Finish/Coating | TiN |
| Depth x Diameter Ratio | 4xD |
| Shank Diameter Tolerance | F11 |
