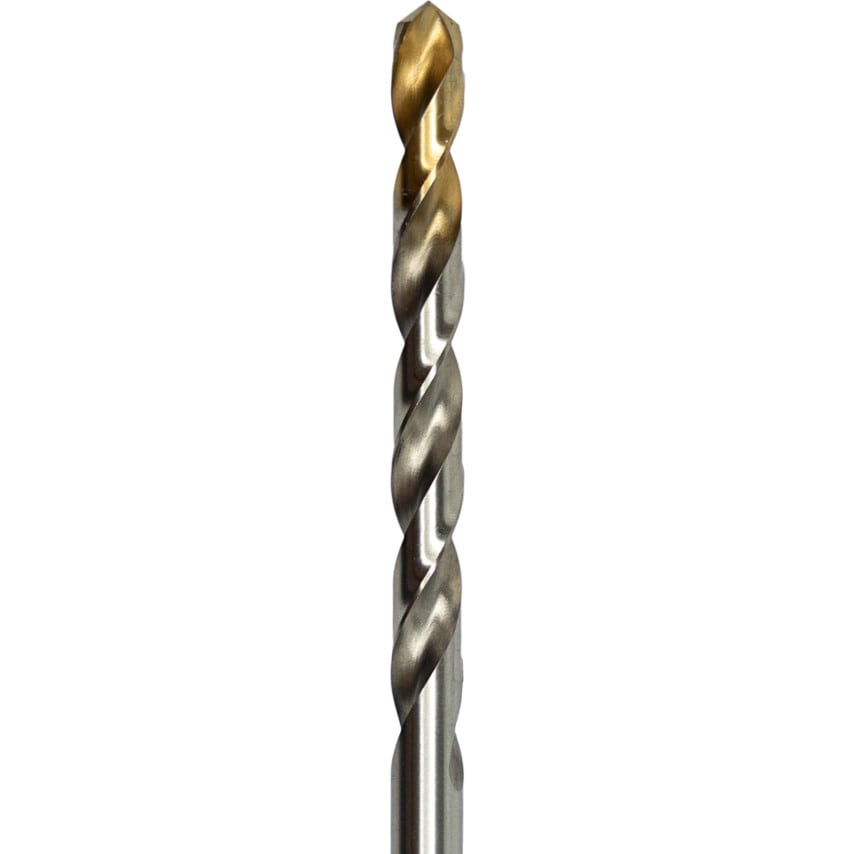

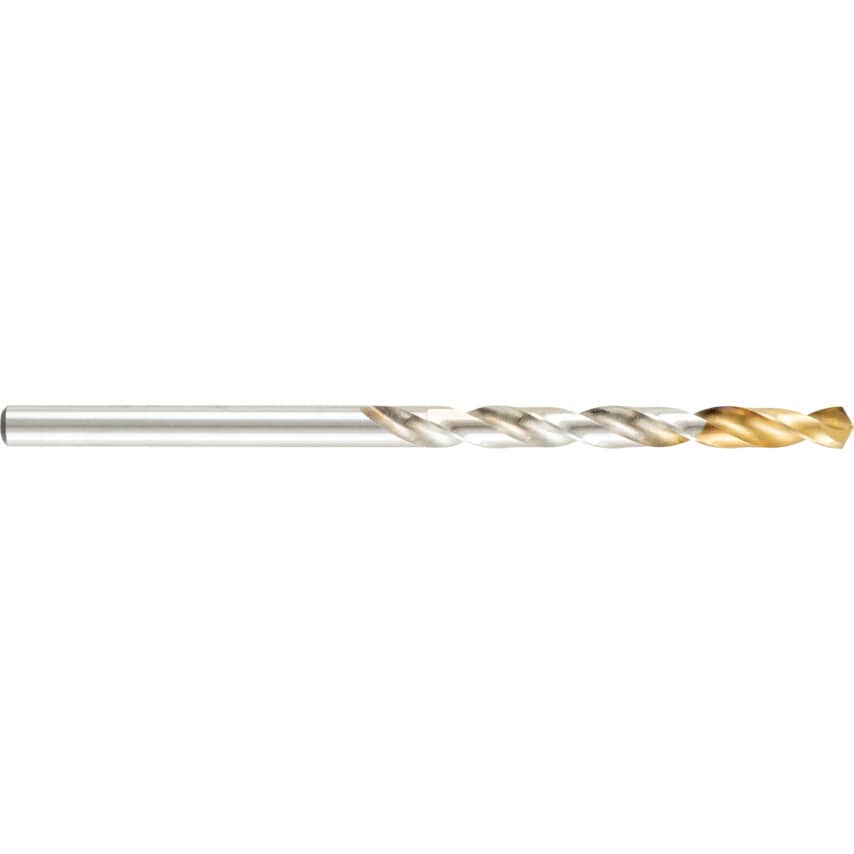

A002 5.00MM HSS Straight Shank Jobber Drill - TiN Tipped

Series A002 HSS Straight Shank Jobber Drill feature a hardy TiN tip coating for increased tool life and performance with 118 self-centering split point for superb hole quality and positional accuracy. Ideal for use on steel, stainless, cast iron, ceramics, plastics and many other materials. They are available in size range: 1.00mm - 16.00mm and manufactured to BS328: Part 1: 1986, DIN 338 standards. Features and Benefits Efficient point design for superior cutting action, reduced axial force and accurate centreing Titanium nitrile (TiN) coating offers low friction and resists wear for faster cutting speeds All Surfaces are ground for consistent precision 118 self-centering split point offers excellent hole quality and positional accuracy Bright body finish improves cutting performance on ductile materials Optimised helix for greater stiffness across diameter range Geometry of flute design improved for efficient chip form and evacuation Optimised for strength and rigidity with an easy feed Easily identifiable markings allow better in-situ identification Standards Manufactured to BS328: Part 1: 1986, DIN 338 standards Typical Applications Wood Composite Soft metals Steel Iron Plastics Drilling Tapping Notes Available in size range: 1.00mm - 16.00mm Also available in Imperial measurements

Helix Type	Normal Helix
Series	A002
Drill Diameter Tolerance	H8
Standards Met	BS 328 | DIN 338
Flute Type	Spiral
Finish/Coating	TiN Tipped
Web Thickness	Strengthened
Product Type	Jobber Drills
Number of Flutes	2
Material	HSS
Drill Diameter	5mm
Point Angle	118\u00b0
Flute Length	52mm
Cutting Direction	Right Hand
Coolant Delivery	External
Flute Construction	Ground flutes
MFR Part No.	A0025.0
Point Type	Split Point
Shank Diameter Tolerance	F11
Drill Diameter Metric	5mm
Overall Length	86mm
