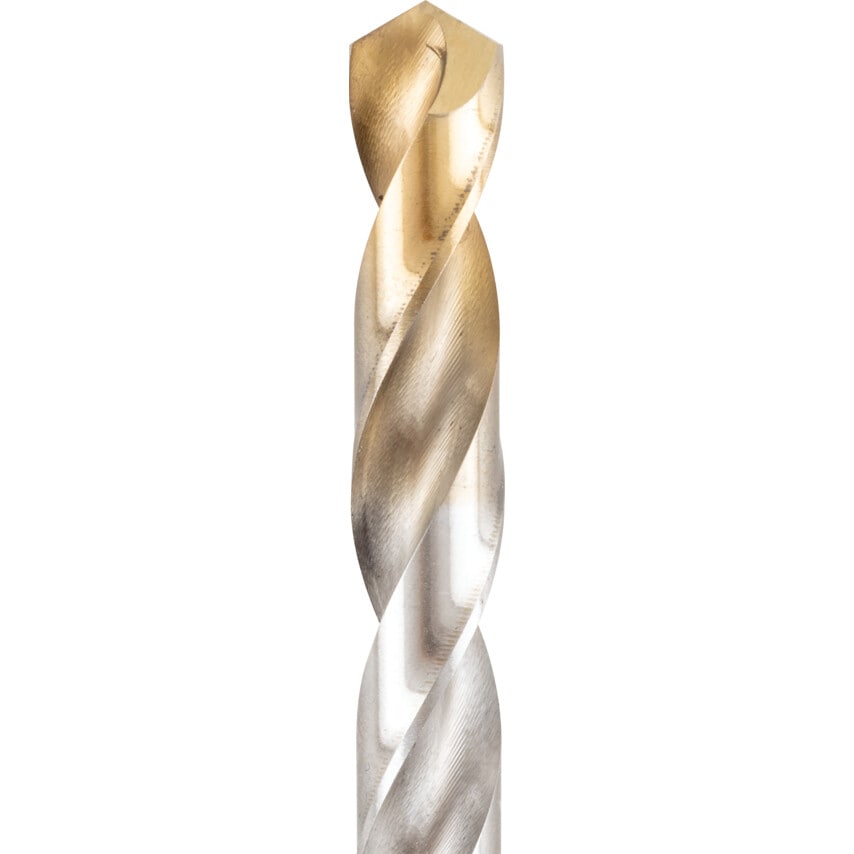

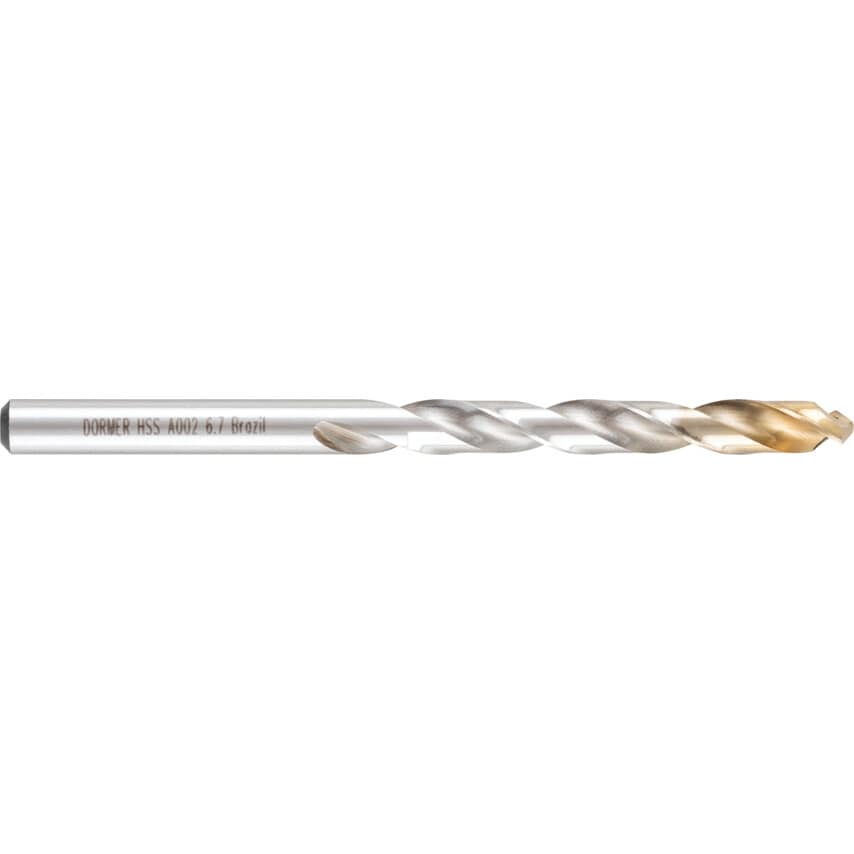

A002 6.70MM HSS Straight Shank Jobber Drills - TiN Tipped

Series A002 HSS Straight Shank Jobber Drill feature a hardy TiN tip coating for increased tool life and performance with 118 self-centering split point for superb hole quality and positional accuracy. Ideal for use on steel, stainless, cast iron, ceramics, plastics and many other materials. They are available in size range: 1.00mm - 16.00mm and manufactured to BS328: Part 1: 1986, DIN 338 standards. Features and Benefits Efficient point design for superior cutting action, reduced axial force and accurate centreing Titanium nitrile (TiN) coating offers low friction and resists wear for faster cutting speeds All Surfaces are ground for consistent precision 118 self-centering split point offers excellent hole quality and positional accuracy Bright body finish improves cutting performance on ductile materials Optimised helix for greater stiffness across diameter range Geometry of flute design improved for efficient chip form and evacuation Optimised for strength and rigidity with an easy feed Easily identifiable markings allow better in-situ identification Standards Manufactured to BS328: Part 1: 1986, DIN 338 standards Typical Applications Wood Composite Soft metals Steel Iron Plastics Drilling Tapping Notes Available in size range: 1.00mm - 16.00mm Also available in Imperial measurements

Series	A002
Web Thickness	Strengthened
Material	HSS
Finish/Coating	TiN Tipped
Flute Construction	Ground flutes
MFR Part No.	A0026.7
Standards Met	BS 328 | DIN 338
Flute Length	63mm
Coolant Delivery	External
Number of Flutes	2
Overall Length	101mm
Drill Diameter Metric	6.7mm
Flute Type	Spiral
Cutting Direction	Right Hand
Point Type	Split Point
Drill Diameter Tolerance	H8
Shank Diameter Tolerance	F11
Product Type	Jobber Drills
Drill Diameter	6.7mm
Point Angle	118\u00b0
Helix Type	Normal Helix
