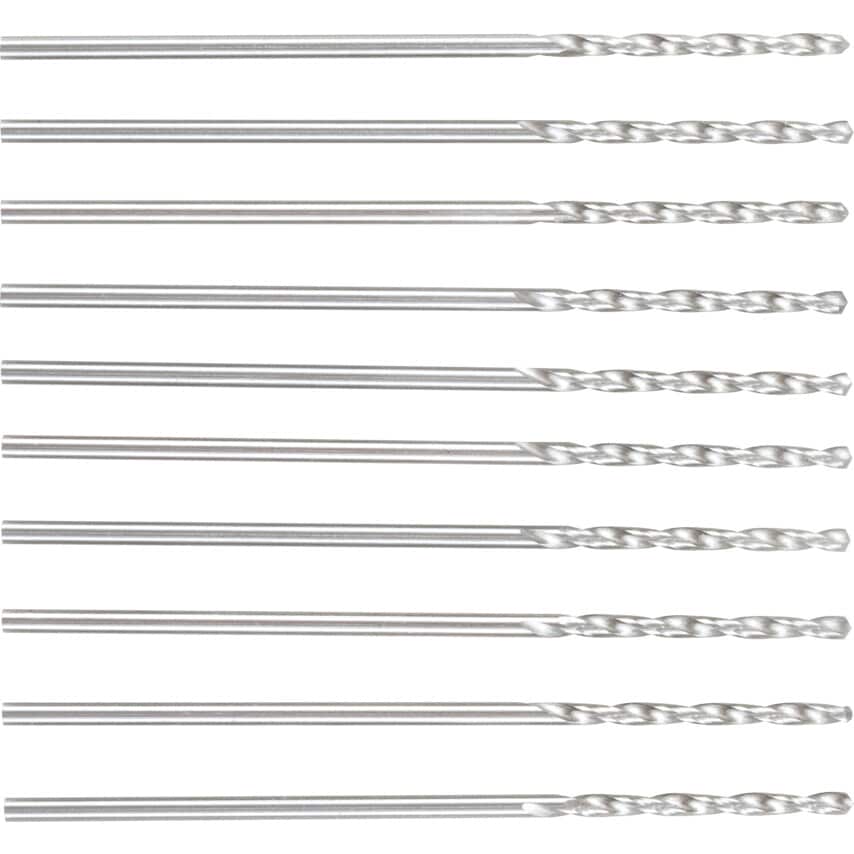

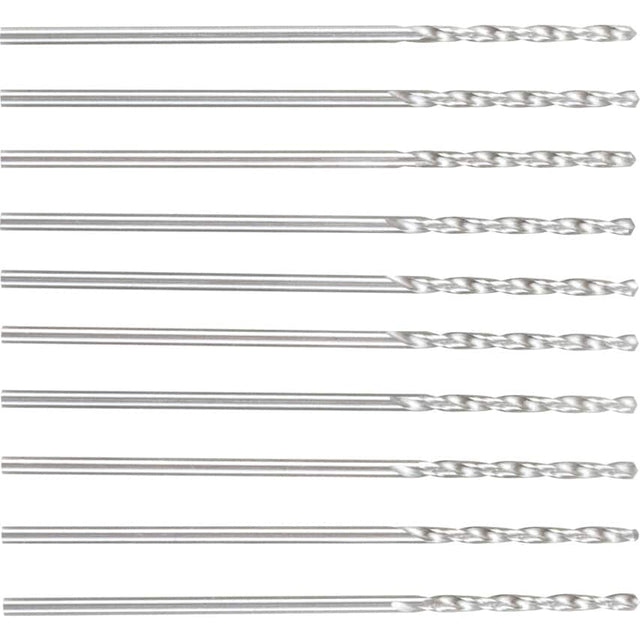

A002 9.10MM HSS Straight Shank Jobber Drills - TiN Tipped

Series A002 HSS Straight Shank Jobber Drill feature a hardy TiN tip coating for increased tool life and performance with 118 self-centering split point for superb hole quality and positional accuracy. Ideal for use on steel, stainless, cast iron, ceramics, plastics and many other materials. They are available in size range: 1.00mm - 16.00mm and manufactured to BS328: Part 1: 1986, DIN 338 standards. Features and Benefits Efficient point design for superior cutting action, reduced axial force and accurate centreing Titanium nitrile (TiN) coating offers low friction and resists wear for faster cutting speeds All Surfaces are ground for consistent precision 118 self-centering split point offers excellent hole quality and positional accuracy Bright body finish improves cutting performance on ductile materials Optimised helix for greater stiffness across diameter range Geometry of flute design improved for efficient chip form and evacuation Optimised for strength and rigidity with an easy feed Easily identifiable markings allow better in-situ identification Standards Manufactured to BS328: Part 1: 1986, DIN 338 standards Typical Applications Wood Composite Soft metals Steel Iron Plastics Drilling Tapping Notes Available in size range: 1.00mm - 16.00mm Also available in Imperial measurements

Overall Length	125mm
Flute Length	81mm
Helix Type	Normal Helix
Web Thickness	Strengthened
Drill Diameter Metric	9.1mm
Product Type	Jobber Drills
Point Angle	118\u00b0
Material	HSS
Point Type	Split Point
Number of Flutes	2
MFR Part No.	A0029.1
Finish/Coating	TiN Tipped
Shank Diameter Tolerance	F11
Drill Diameter	9.1mm
Standards Met	BS 328 | DIN 338
Series	A002
Coolant Delivery	External
Cutting Direction	Right Hand
Drill Diameter Tolerance	H8
Flute Construction	Ground flutes
Flute Type	Spiral
