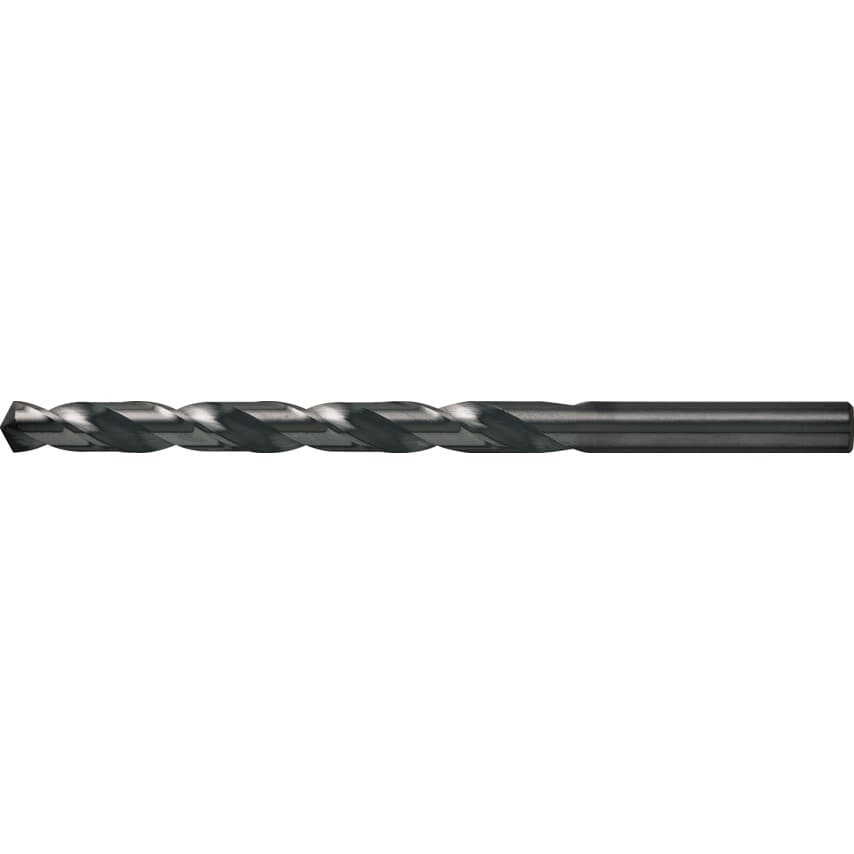

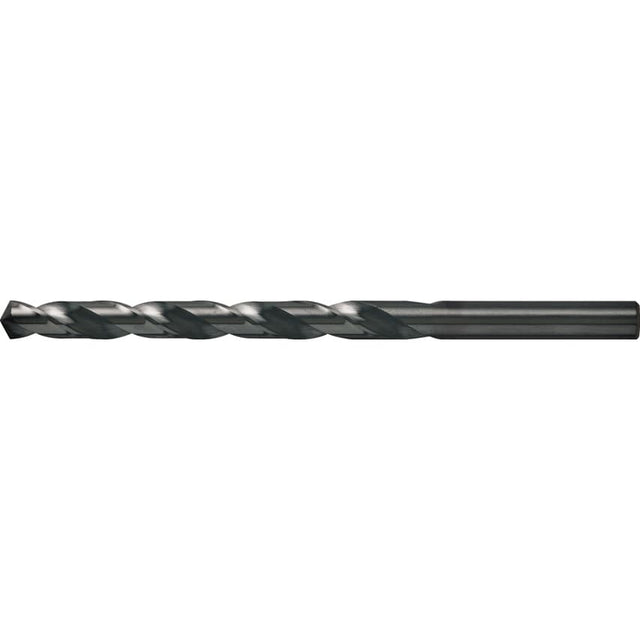

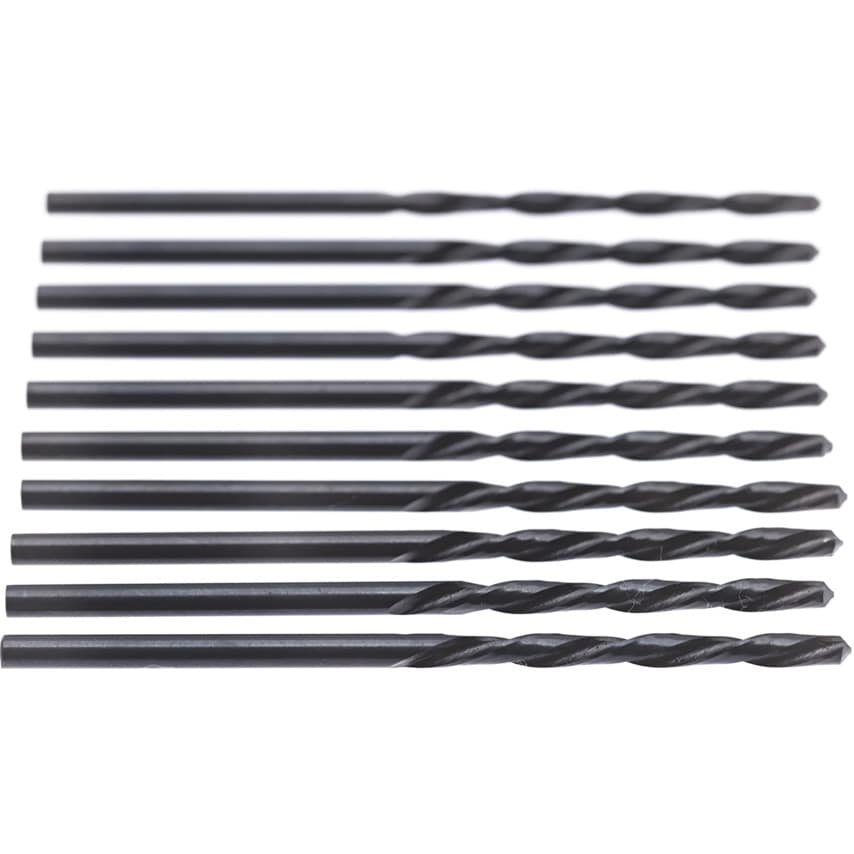

The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (Including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118 point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. It also helps reduce the risk of the tool staining.
Features and Benefits
General purpose drills with a black oxide finish
Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite
Point angle of 118 for precise holemaking and precision cutting
Black oxide coating helps aid chip flow, reduce heat and prevent staining
Standards
Manufactured to BS 328/DIN338RN
Typical Applications
Cutting and drilling
Ferrous materials
Notes
Available in sizes 1/64" - 3/4"
| Material Grade | Steel Grade 4241 |
| Helix Type | Normal Helix |
| Web Thickness | Standard |
| Standards Met | BS 328 | DIN 338 |
| Point Type | Split Point |
| Series | J100 |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Point Angle | 118\u00b0 |
| Drill Diameter Inch | 9/16in |
| Flute Length | 114mm |
| Number of Flutes | 2 |
| Drill Diameter | 9/16in |
| Shank Diameter Tolerance | F11 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Finish/Coating | Black Oxide |
| Material | HSS |
| Overall Length | 169mm |
| Drill Diameter Tolerance | H8 |
