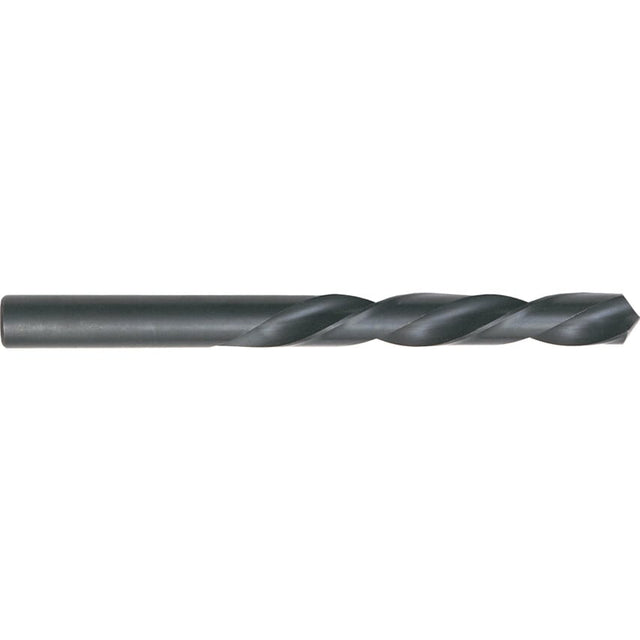

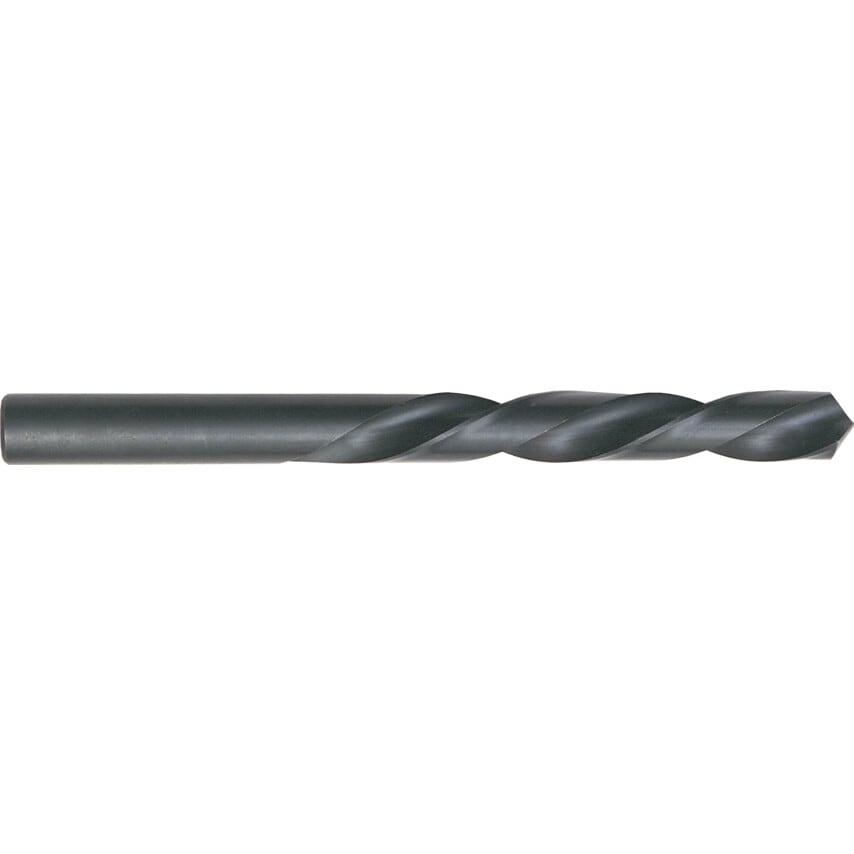

The Series 205 range of jobber drills from Guhring are suitable for drilling steel, cast steel, alloyed and unalloyed, grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite. Featuring a hardy HSS construction and a steam oxide coating for greater wear, heat resistance and chip flow.
Features and Benefits
High-speed steel construction for increased rigidity
Steam (black) oxide coating for increased resistance to heat and wear
Improved chip flow ideal for use with ferrous materials
Standards
Manufactured to BS 328, DIN338RN
Typical Applications
Drilling
Cast iron
Steel
German silver
Graphite
| Drill Diameter Inch | 25/64in |
| Point Angle | 118\u00b0 |
| Flute Construction | Ground flutes |
| Series | 205 |
| Flute Type | Spiral |
| Finish/Coating | Steam Oxide |
| MFR Part No. | 00205 009.920 |
| Standards Met | BS 328 | DIN 338RN |
| Material | HSS |
| Coolant Delivery | External |
| Flute Length | 87mm |
| Overall Length | 133mm |
| Number of Flutes | 2 |
| Product Type | Jobber Drills |
| Cutting Direction | Right Hand |
| Drill Diameter | 25/64in |
| Helix Type | Normal Helix |
