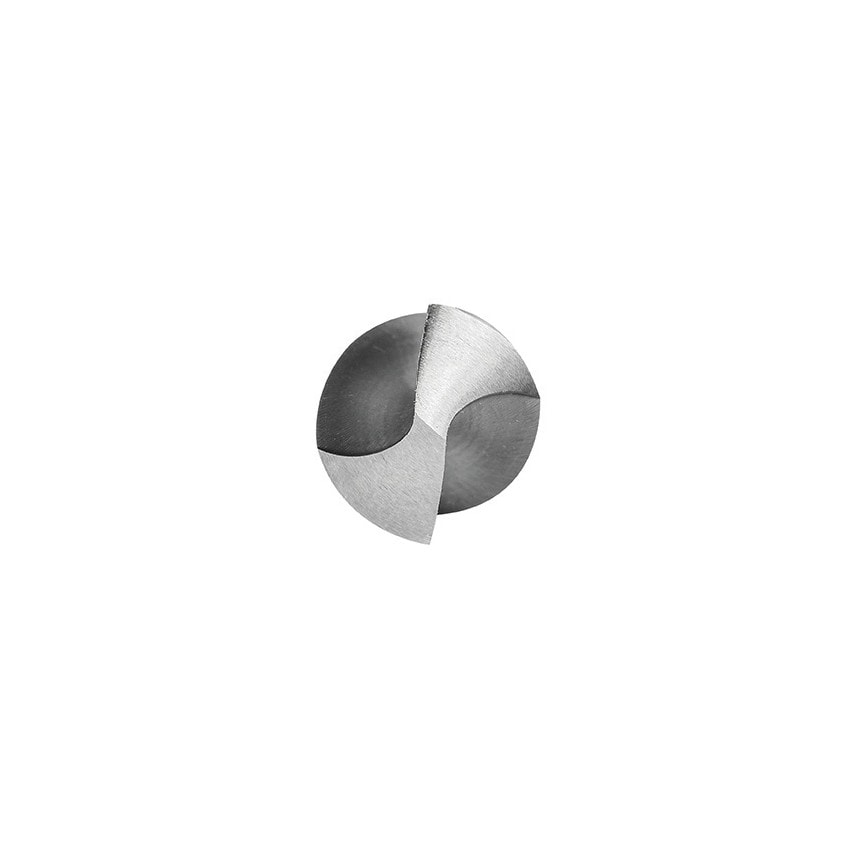

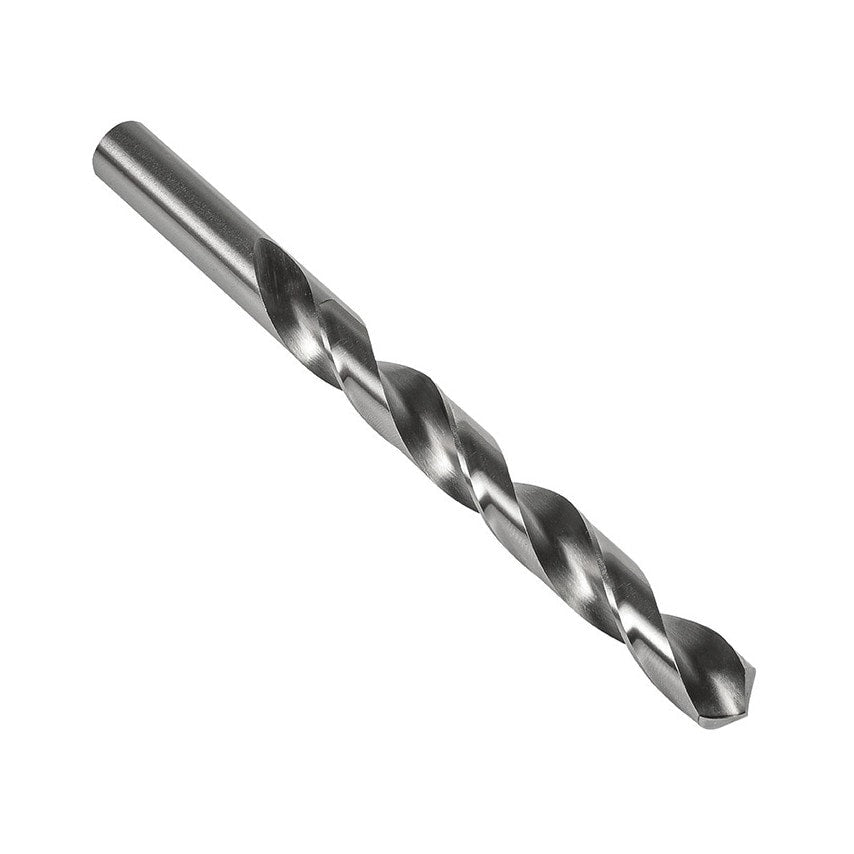

Series A100 general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Featuring a high-speed steel construction for strength in machining applications and a black oxide coating for increased heat and wear resistance
Features and Benefits
HSS construction for strength in machining applications
Black oxide coating for improved heat an wear resistance
Typical Applications
Drilling
Steel
Cast iron
Graphite
| Overall Length | 142mm |
| Web Thickness | Standard |
| Drill Diameter | 11.51mm |
| Drill Diameter Metric | 11.51mm |
| Material | HSS |
| Series | A100 |
| Drill Diameter Tolerance | H8 |
| MFR Part No. | A10029/64 |
| Shank Diameter Tolerance | F11 |
| Flute Construction | Ground flutes |
| Finish/Coating | Black Oxide |
| Flute Length | 94mm |
| Point Angle | 118\u00b0 |
| Flute Type | Spiral |
| Standards Met | BS 328 | DIN 338 |
| Number of Flutes | 2 |
| Helix Type | Normal Helix |
| Coolant Delivery | External |
| Point Type | Standard |
| Cutting Direction | Right Hand |
