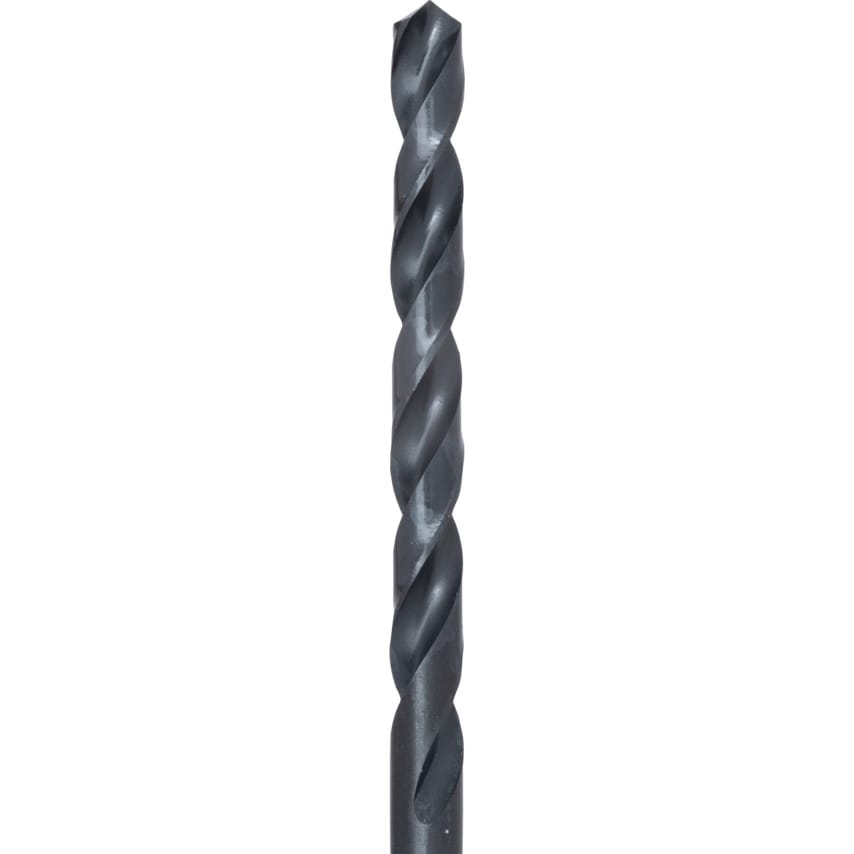

Series A100 general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Featuring a high-speed steel construction for strength in machining applications and a black oxide coating for increased heat and wear resistance
Features and Benefits
HSS construction for strength in machining applications
Black oxide coating for improved heat an wear resistance
Typical Applications
Drilling
Steel
Cast iron
Graphite
| Number of Flutes | 2 |
| Flute Construction | Ground flutes |
| Point Angle | 118\u00b0 |
| Drill Diameter Tolerance | H8 |
| Finish/Coating | Black Oxide |
| Web Thickness | Standard |
| Series | A100 |
| Material | HSS |
| Coolant Delivery | External |
| Drill Diameter | 4.76mm |
| Cutting Direction | Right Hand |
| Drill Diameter Metric | 4.76mm |
| Standards Met | BS 328 | DIN 338 |
| Flute Length | 52mm |
| Helix Type | Normal Helix |
| Point Type | Standard |
| Shank Diameter Tolerance | F11 |
| MFR Part No. | A1003/16 |
| Overall Length | 86mm |
| Flute Type | Spiral |
