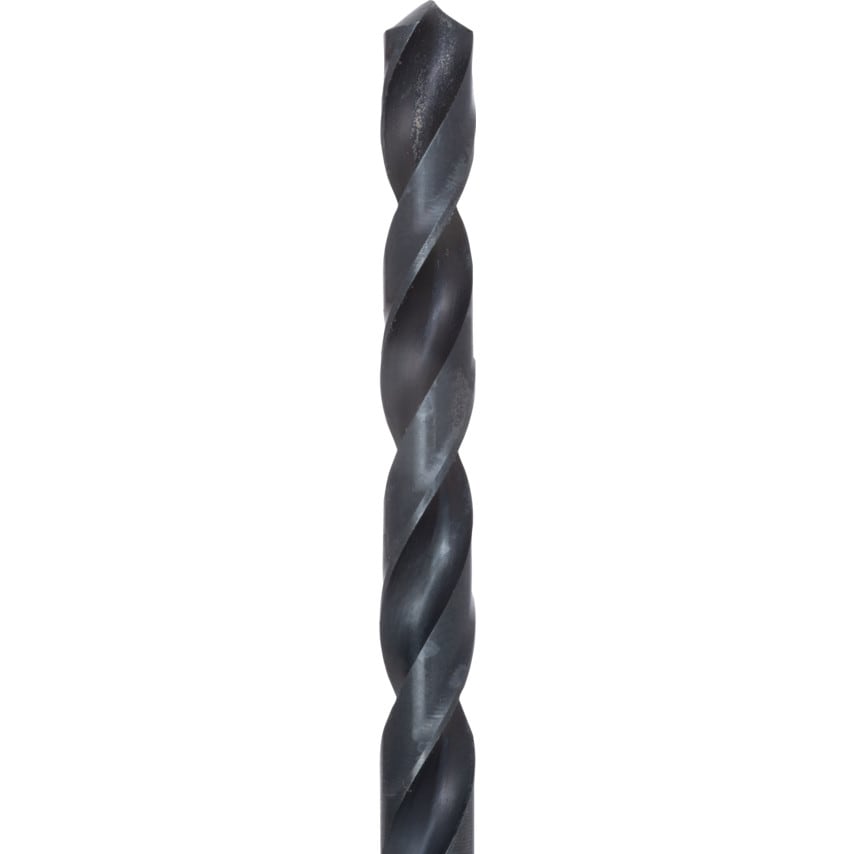

Series A100 general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Featuring a high-speed steel construction for strength in machining applications and a black oxide coating for increased heat and wear resistance
Features and Benefits
HSS construction for strength in machining applications
Black oxide coating for improved heat an wear resistance
Typical Applications
Drilling
Steel
Cast iron
Graphite
| Point Type | Standard |
| Helix Type | Normal Helix |
| Series | A100 |
| Web Thickness | Standard |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Material | HSS |
| Drill Diameter | 6.35mm |
| Flute Length | 63mm |
| Flute Construction | Ground flutes |
| Overall Length | 101mm |
| Finish/Coating | Black Oxide |
| Coolant Delivery | External |
| Standards Met | BS 328 | DIN 338 |
| MFR Part No. | A1001/4 |
| Number of Flutes | 2 |
| Point Angle | 118\u00b0 |
| Shank Diameter Tolerance | F11 |
| Drill Diameter Metric | 6.35mm |
