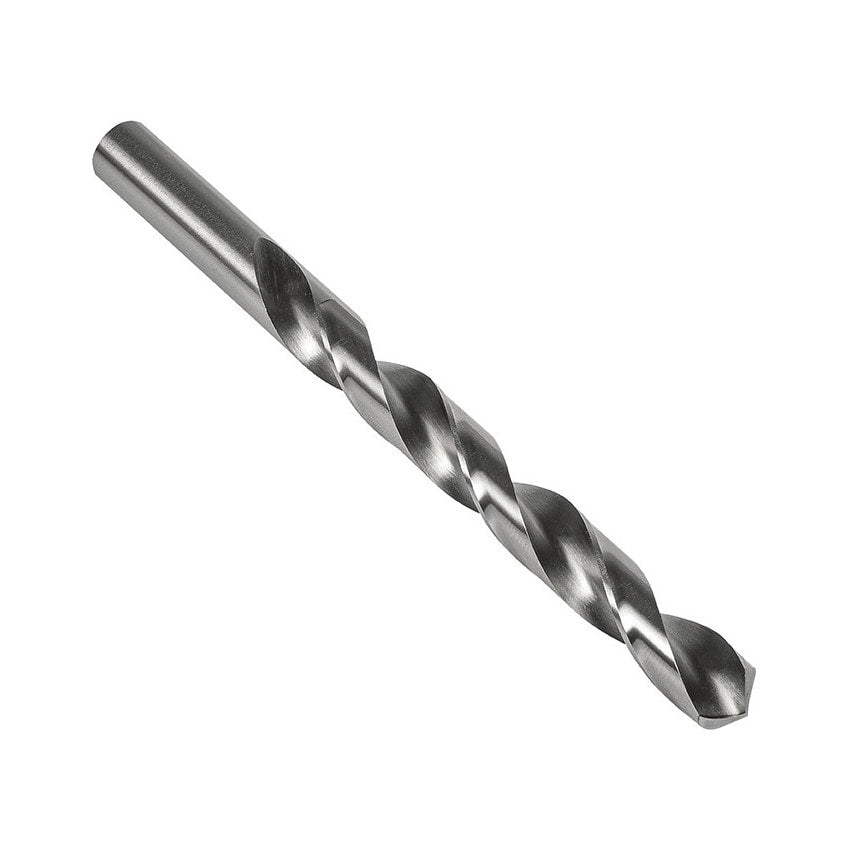

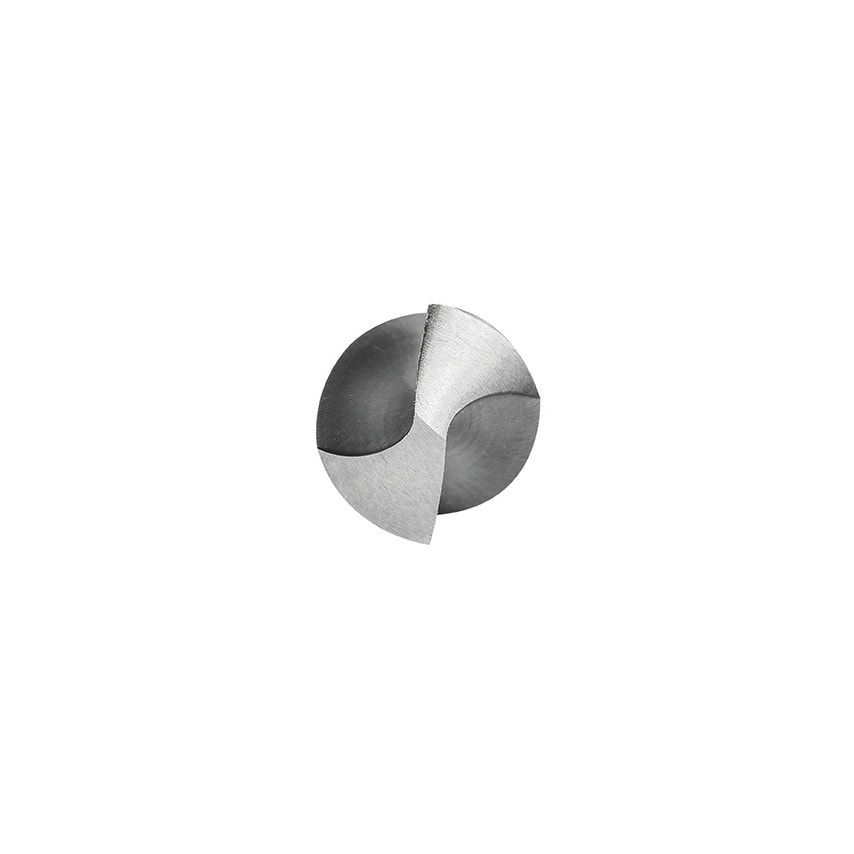

Series A100 general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Featuring a high-speed steel construction for strength in machining applications and a black oxide coating for increased heat and wear resistance
Features and Benefits
HSS construction for strength in machining applications
Black oxide coating for improved heat an wear resistance
Typical Applications
Drilling
Steel
Cast iron
Graphite
| Helix Type | Normal Helix |
| Standards Met | BS 328 | DIN 338 |
| Cutting Direction | Right Hand |
| Finish/Coating | Black Oxide |
| Point Type | Standard |
| Drill Diameter Metric | 10.72mm |
| Coolant Delivery | External |
| Series | A100 |
| Drill Diameter | 10.72mm |
| Overall Length | 142mm |
| Web Thickness | Standard |
| MFR Part No. | A10027/64 |
| Material | HSS |
| Point Angle | 118\u00b0 |
| Flute Construction | Ground flutes |
| Flute Length | 94mm |
| Number of Flutes | 2 |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Shank Diameter Tolerance | F11 |
