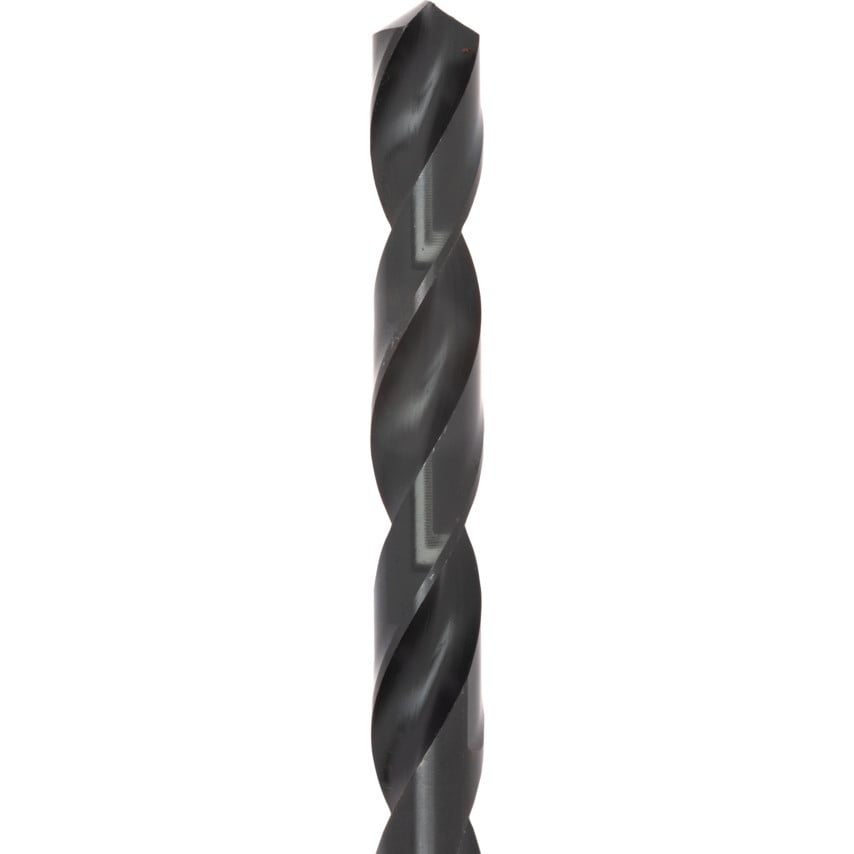

Series A100 general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Featuring a high-speed steel construction for strength in machining applications and a black oxide coating for increased heat and wear resistance
Features and Benefits
HSS construction for strength in machining applications
Black oxide coating for improved heat an wear resistance
Typical Applications
Drilling
Steel
Cast iron
Graphite
| Finish/Coating | Black Oxide |
| Point Angle | 118\u00b0 |
| Helix Type | Normal Helix |
| Point Type | Standard |
| Shank Diameter Tolerance | F11 |
| Drill Diameter | 12.7mm |
| Overall Length | 151mm |
| Web Thickness | Standard |
| Drill Diameter Tolerance | H8 |
| Drill Diameter Metric | 12.7mm |
| Flute Construction | Ground flutes |
| Number of Flutes | 2 |
| Standards Met | BS 328 | DIN 338 |
| Material | HSS |
| Cutting Direction | Right Hand |
| Flute Length | 101mm |
| Series | A100 |
| Flute Type | Spiral |
| MFR Part No. | A1001/2 |
| Coolant Delivery | External |
