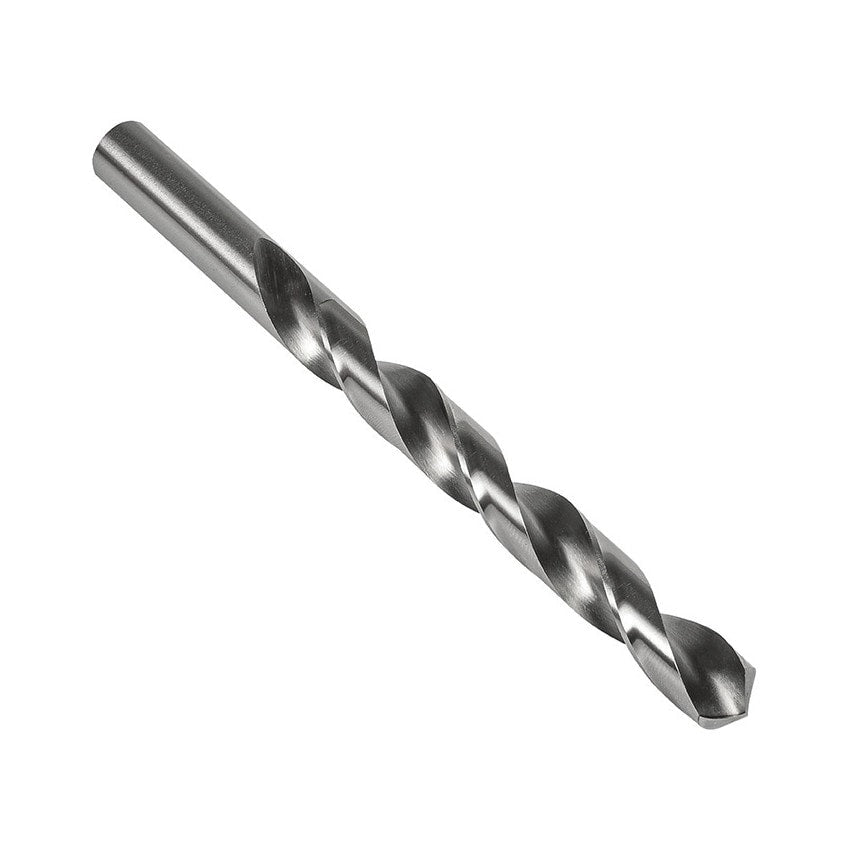

Series A100 general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Featuring a high-speed steel construction for strength in machining applications and a black oxide coating for increased heat and wear resistance
Features and Benefits
HSS construction for strength in machining applications
Black oxide coating for improved heat an wear resistance
Typical Applications
Drilling
Steel
Cast iron
Graphite
| Series | A100 |
| Drill Diameter | 11.11mm |
| Coolant Delivery | External |
| Flute Length | 94mm |
| Standards Met | BS 328 | DIN 338 |
| Point Angle | 118\u00b0 |
| Shank Diameter Tolerance | F11 |
| Cutting Direction | Right Hand |
| MFR Part No. | A1007/16 |
| Material | HSS |
| Point Type | Standard |
| Helix Type | Normal Helix |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Overall Length | 142mm |
| Number of Flutes | 2 |
| Drill Diameter Metric | 11.11mm |
| Flute Construction | Ground flutes |
| Finish/Coating | Black Oxide |
| Web Thickness | Standard |
