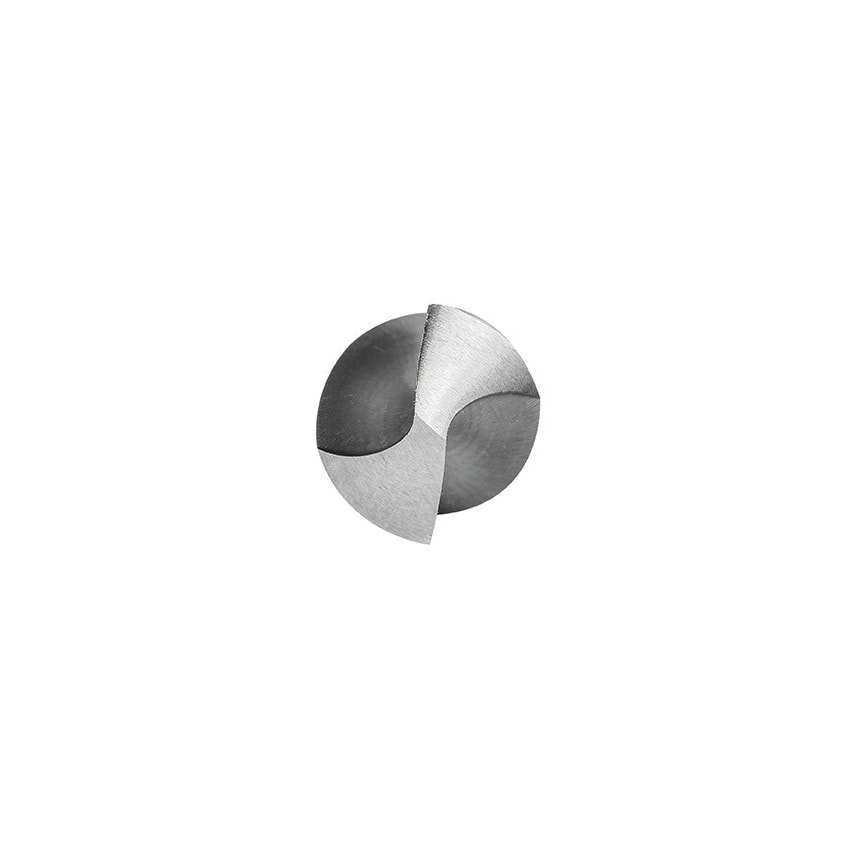

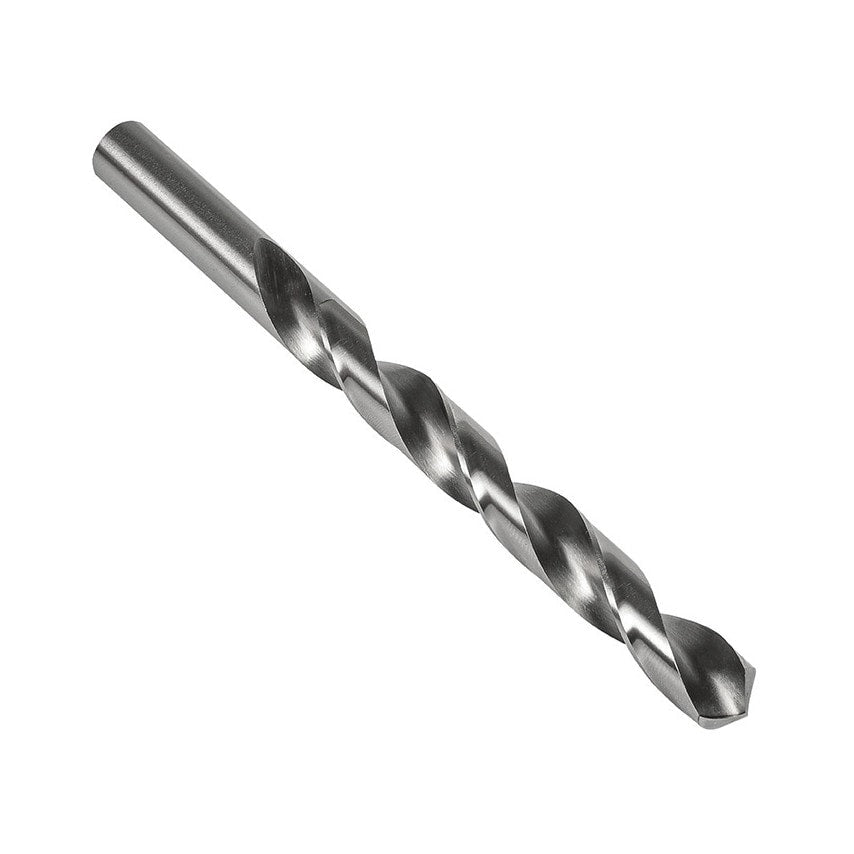

Series A100 general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Featuring a high-speed steel construction for strength in machining applications and a black oxide coating for increased heat and wear resistance
Features and Benefits
HSS construction for strength in machining applications
Black oxide coating for improved heat an wear resistance
Typical Applications
Drilling
Steel
Cast iron
Graphite
| Finish/Coating | Black Oxide |
| Shank Diameter Tolerance | F11 |
| Helix Type | Normal Helix |
| Drill Diameter | 0.79mm |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Flute Length | 10mm |
| Drill Diameter Tolerance | H8 |
| Flute Construction | Ground flutes |
| Web Thickness | Standard |
| Number of Flutes | 2 |
| Flute Type | Spiral |
| MFR Part No. | A1001/32 |
| Series | A100 |
| Standards Met | BS 328 | DIN 338 |
| Drill Diameter Metric | 0.79mm |
| Material | HSS |
| Point Type | Standard |
| Point Angle | 118\u00b0 |
| Overall Length | 30mm |
