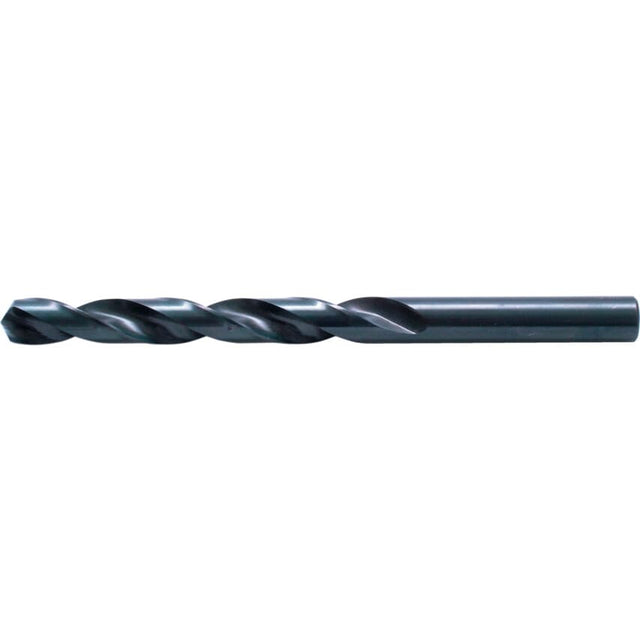

15.75MM HSS S/S Jobber Drill

The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118 point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. The coating also helps reduce the risk of the tool staining. Features and Benefits High speed steel construction for increased tool durability Point angle of 118 for precise holemaking and precision cutting Black oxide coating helps aid chip flow, reduce heat and prevent staining Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite Typical Applications Cutting and drilling Ferrous materials Steel Iron Nickel Brass Aluminium alloy Graphite Notes Available in sizes 0.25mm -20.00mm Standards Manufactured to BS 328/DIN338RN

Flute Type	Spiral
Product Type	Jobber Drills
Shank Diameter Tolerance	F11
Cutting Direction	Right Hand
Series	J100
Point Type	Split Point
Material Grade	Steel Grade 4241
Flute Construction	Ground flutes
Standards Met	BS 328 | DIN 338RN
Finish/Coating	Black Oxide
Flute Length	120mm
Overall Length	178mm
Number of Flutes	2
Coolant Delivery	External
Material	HSS
Drill Diameter Metric	15.75mm
Point Angle	118\u00b0
Drill Diameter	15.75mm
Helix Type	Normal Helix
Drill Diameter Tolerance	H8
Web Thickness	Standard
