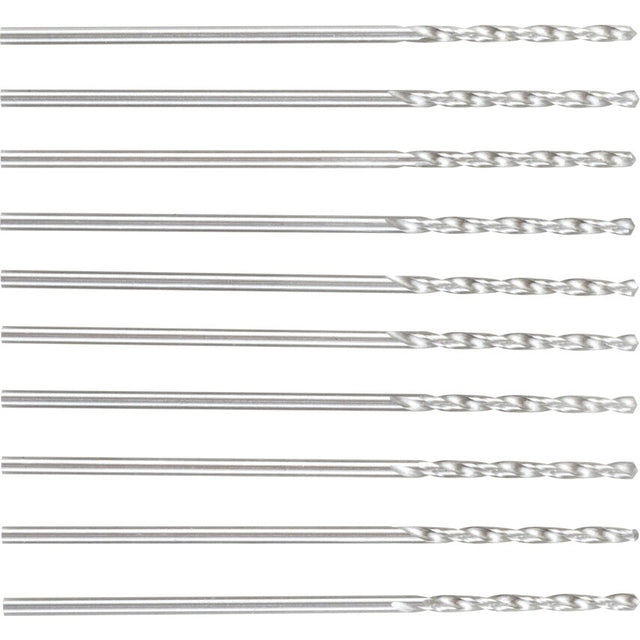

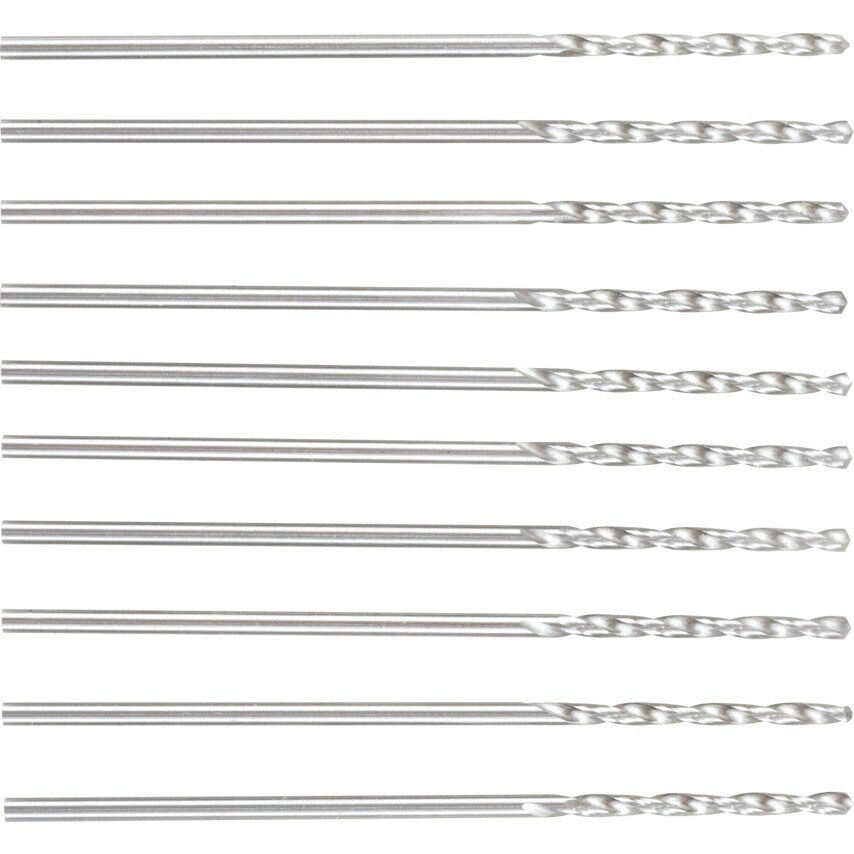

A002 17/64" HSS Straight Shank Jobber Drills - TiN Tipped

Series A002 HSS Straight Shank Jobber Drills feature a hardy TiN tip coating for increased tool life and performance with 118 self-centering split point for superb hole quality and positional accuracy. Ideal for use on steel, stainless, cast iron, ceramics, plastics and many other materials. They are available in size range: 3/64" - 5/8" and manufactured to BS328: Part 1: 1986, DIN 338 standards. Features and Benefits Efficient point design for superior cutting action, reduced axial force and accurate centreing Titanium nitrile (TiN) coating offers low friction and resists wear for faster cutting speeds All Surfaces are ground for consistent precision 118 self-centering split point offers excellent hole quality and positional accuracy Bright body finish improves cutting performance on ductile materials Optimised helix for greater stiffness across diameter range Geometry of flute design improved for efficient chip form and evacuation Optimised for strength and rigidity with an easy feed Easily identifiable markings allow better in-situ identification Standards Manufactured to BS328: Part 1: 1986, DIN 338 Typical Applications Wood Composite Soft metals Steel Iron Plastics Drilling Tapping Notes Size range: 3/64" - 5/8" Also available in metric dimentions

Helix Type	Normal Helix
Flute Length	69mm
Shank Diameter Tolerance	F11
Series	A002
Drill Diameter Tolerance	H8
Drill Diameter	17/64in
Number of Flutes	2
MFR Part No.	A00217/64
Flute Construction	Ground flutes
Coolant Delivery	External
Material	HSS
Cutting Direction	Right Hand
Point Angle	118\u00b0
Flute Type	Spiral
Finish/Coating	TiN Tipped
Point Type	Split Point
Drill Diameter Inch	17/64in
Standards Met	BS 328 | DIN 338
Overall Length	109mm
Web Thickness	Strengthened
