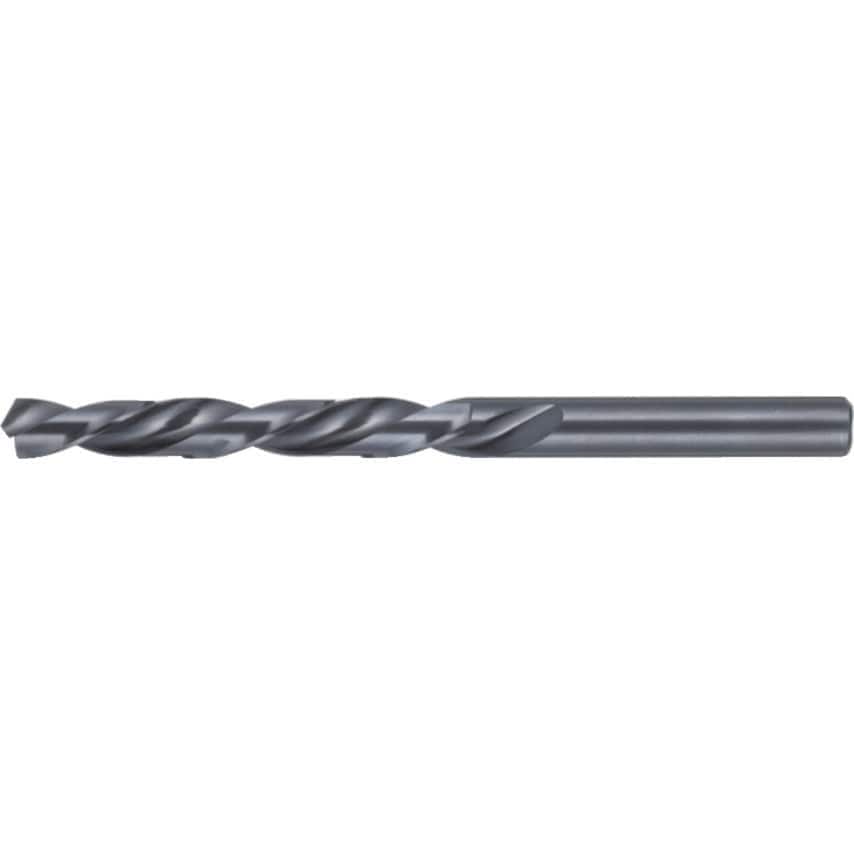

Jobber length left hand drill with straight shank, diameter 3.5mm with an overall length of 70mm and flute length of 39mm according to DIN 338 standard with 118 point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel
| Drill Diameter Tolerance | H8 |
| Flute Construction | Ground flutes |
| Finish | Steam Tempered |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Unit of Measurement | Metric |
| Finish/Coating | Steam Tempered |
| Spiral Form | Standard Spiral |
| MFR Part No. | A1013.5 |
| Drill Diameter Metric | 3.5mm |
| Helix Angle | 118\u00b0 |
| Drill Diameter | 3.5mm |
| Shank | Cylindrical shank |
| Series | A101 |
| Overall Length | 70mm |
| Material | HSS |
| Cutting Direction | Left |
| Product Type | Left hand Jobber Drill |
| Helix Type | Normal Helix |
| Flute Length | 39mm |
| Standards Met | DIN 338 |
| Product Series | A101 |
