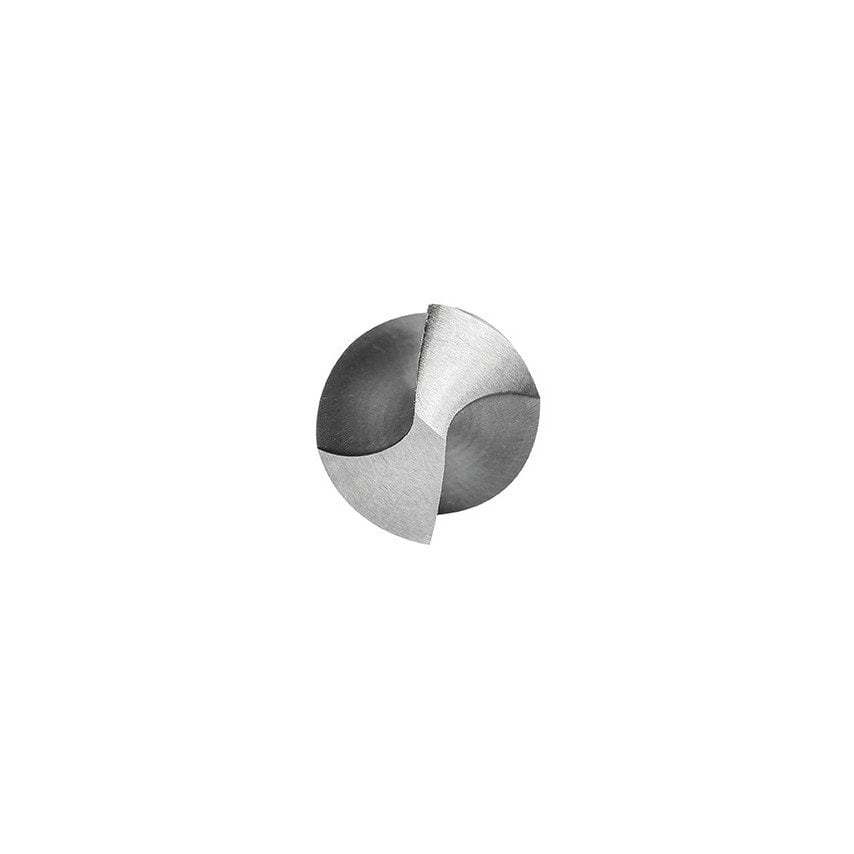

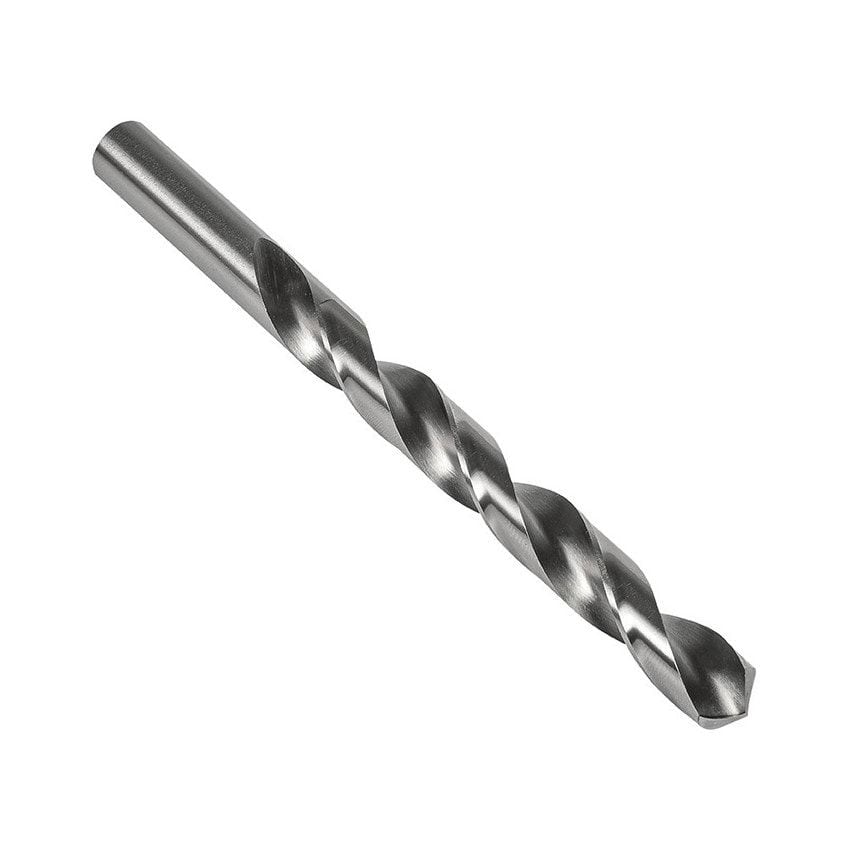

Jobber length drill with straight shank, diameter 0.0635" (N52) with an overall length of 43mm and flute length of 20mm according to DIN 338 standard with 118 point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel
| Material | HSS |
| Series | A100 |
| Coolant Delivery | External |
| Standards Met | DIN 338 |
| Finish/Coating | Steam Tempered |
| Spiral Form | Standard Spiral |
| Shank | Cylindrical shank |
| MFR Part No. | A100N52 |
| Cutting Direction | Right |
| Overall Length | 43mm |
| Drill Diameter Tolerance | H8 |
| Product Series | A100 |
| Drill Diameter Gauge | No.52 |
| Point Angle | 118\u00b0 |
| Number of Flutes | 2 |
| Flute Length | 20mm |
| Size | 0.0635in diameter |
| Flute Type | Spiral |
| Helix Type | Normal Helix |
| Finish | Steam Tempered |
| Product Type | Jobber Drills |
| Flute Construction | Ground flutes |
