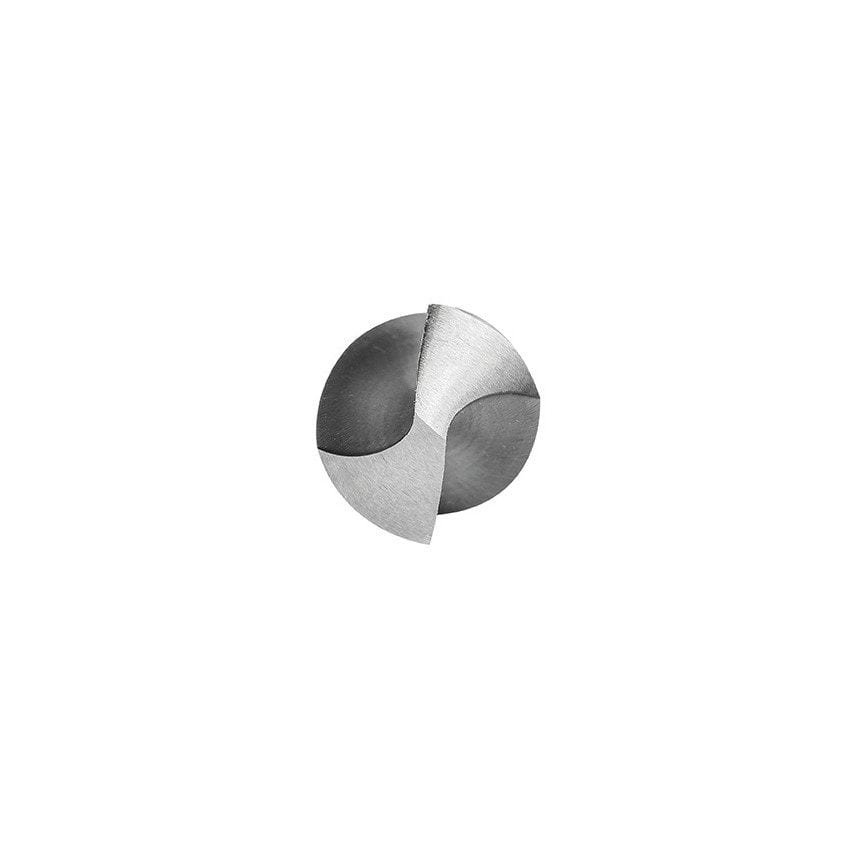

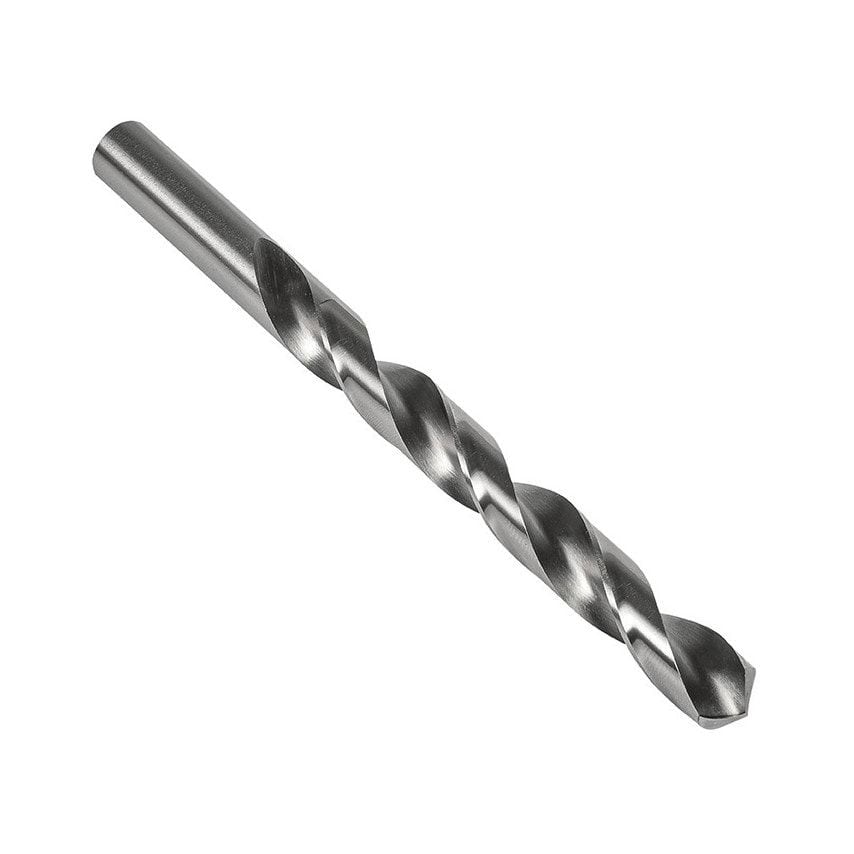

Jobber length drill with straight shank, diameter 0.1770" (N16) with an overall length of 80mm and flute length of 47mm according to DIN 338 standard with 118 point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel
| Number of Flutes | 2 |
| Series | A100 |
| Drill Diameter Tolerance | H8 |
| Spiral Form | Standard Spiral |
| Overall Length | 80mm |
| Standards Met | DIN 338 |
| Finish/Coating | Steam Tempered |
| Cutting Direction | Right |
| Finish | Steam Tempered |
| Drill Diameter Gauge | No.16 |
| Flute Type | Spiral |
| Helix Type | Normal Helix |
| Product Type | Jobber Drills |
| Flute Construction | Ground flutes |
| Material | HSS |
| Product Series | A100 |
| Size | 0.1770in diameter |
| Coolant Delivery | External |
| Shank | Cylindrical shank |
| Flute Length | 47mm |
| Point Angle | 118\u00b0 |
| MFR Part No. | A100N16 |
