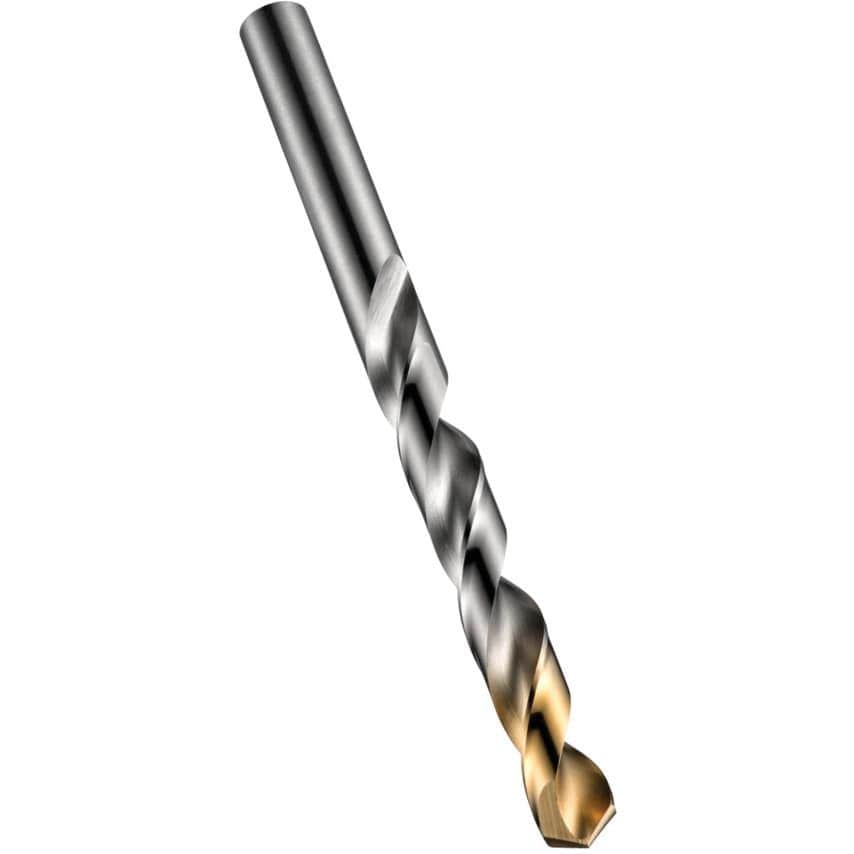

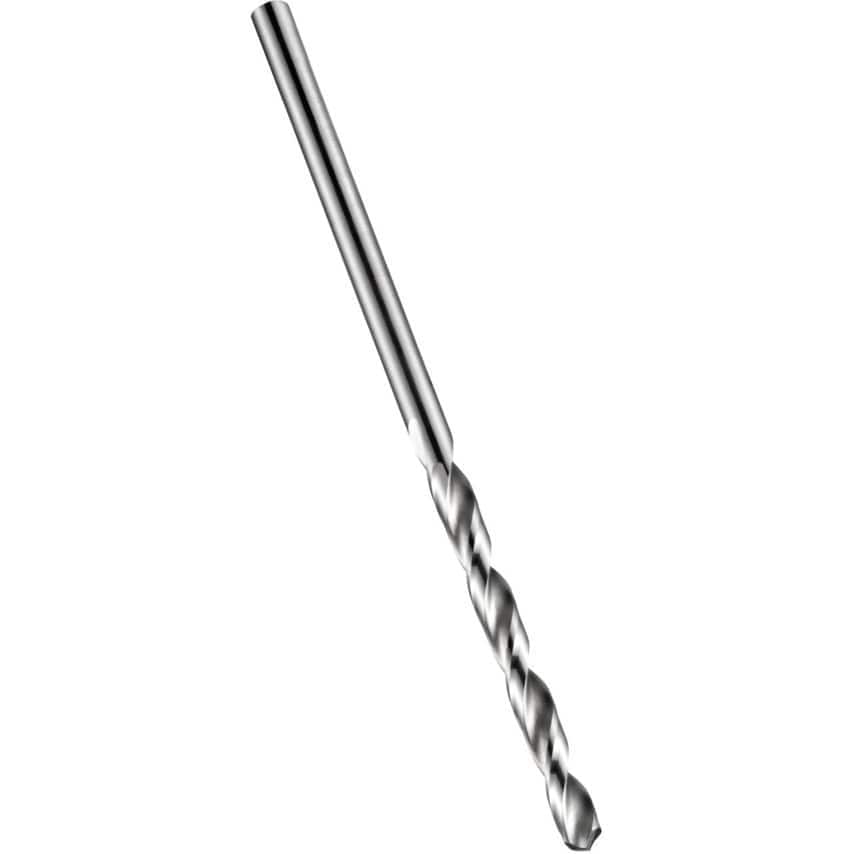

Jobber length drill with straight shank, diameter 4mm with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 118 modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel supplied in 2 piece blister
| Standards Met | DIN 338 |
| Helix Type | Normal Helix |
| Flute Length | 43mm |
| Drill Diameter | 4mm |
| Coolant Delivery | External |
| Product Series | A002S |
| Drill Diameter Tolerance | H8 |
| Product Type | Jobber Drills |
| Drill Diameter Metric | 4mm |
| Overall Length | 75mm |
| Spiral Form | Standard Spiral |
| Finish/Coating | TiN Tipped |
| MFR Part No. | A002S4.0 |
| Point Angle | 118\u00b0 |
| Shank | Cylindrical shank |
| Unit of Measurement | Metric |
| Finish | Bright/TiN |
| Cutting Direction | Right |
| Series | A002S |
| Flute Type | Spiral |
| Material | HSS |
| Flute Construction | Ground flutes |
| Number of Flutes | 2 |
