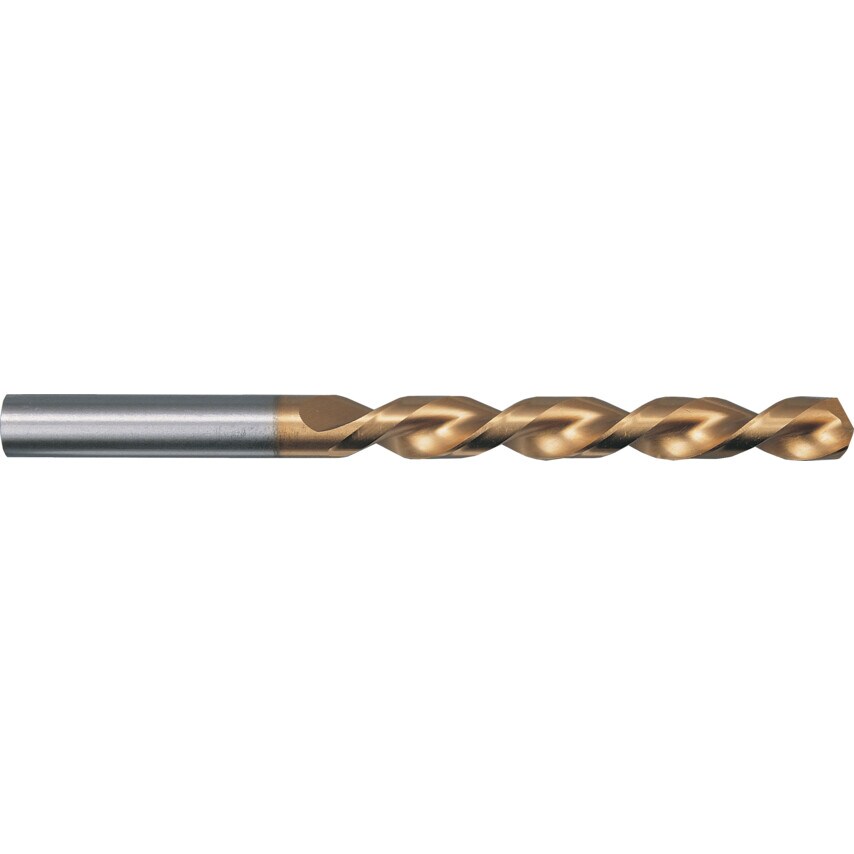

Series 652 HSS High Helix (Parabolic Flute) Straight Shank Jobber Drills
Metric
For drilling in difficult conditions when swarf congestion prevents an adequate flow of coolant. For use in steel and cast iron having a hardness of up to 1000N/mm2. Not recommended for nickel-chrome steels or similar material. Give greater wear resistance and longer tool life than Guhring product number 549 - HSS GT100 right hand jobber drills. Manufactured to DIN388.
| Cutting Direction | Right Hand |
| Drill Diameter | 1mm |
| Point Type | Conventional |
| Shank Diameter Tolerance | F11 |
| Finish/Coating | TiN |
| Size | 1mm |
| Drill Diameter Metric | 1mm |
| Web Thickness | Form A |
| Material | HSS |
| Diameter | 1.0mm |
| Standards Met | DIN 338 |
| Flute Length | 12mm |
| Overall Length | 34mm |
| MFR Part No. | 00652 001.000 |
| Coolant Delivery | External |
| Drill Diameter Tolerance | H8 |
| Point Angle | 130\u00b0 |
| Series | 652 |
| Product Type | Jobber Drills |
| Flute Construction | Ground flutes |
| Number of Flutes | 2 |
| Flute Type | Parabolic |
| Helix Type | High Helix |
