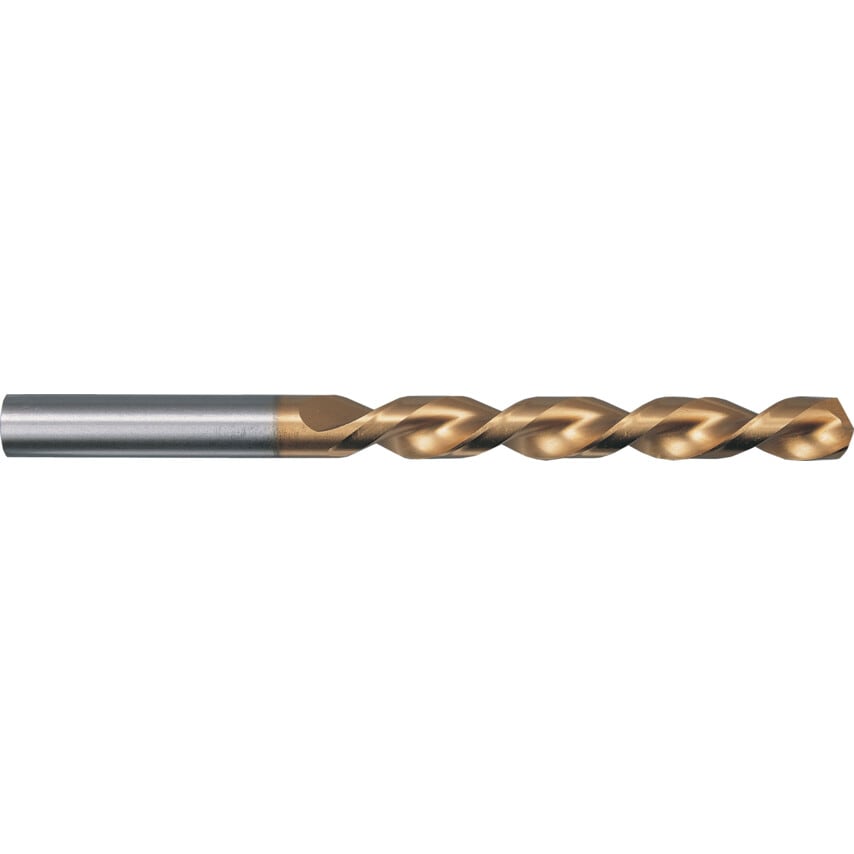

Series 652 HSS High Helix (Parabolic Flute) Straight Shank Jobber Drills
Metric
For drilling in difficult conditions when swarf congestion prevents an adequate flow of coolant. For use in steel and cast iron having a hardness of up to 1000N/mm2. Not recommended for nickel-chrome steels or similar material. Give greater wear resistance and longer tool life than Guhring product number 549 - HSS GT100 right hand jobber drills. Manufactured to DIN388.
| Overall Length | 65mm |
| Flute Construction | Ground flutes |
| Series | 652 |
| Point Type | Conventional |
| Number of Flutes | 2 |
| Standards Met | DIN 338 |
| Point Angle | 130\u00b0 |
| Material | HSS |
| MFR Part No. | 00652 003.200 |
| Flute Length | 36mm |
| Coolant Delivery | External |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| Flute Type | Parabolic |
| Helix Type | High Helix |
| Web Thickness | Form A |
| Size | 3.2mm |
| Finish/Coating | TiN |
| Shank Diameter Tolerance | F11 |
| Drill Diameter | 3.2mm |
| Drill Diameter Metric | 3.2mm |
| Diameter | 3.2mm |
