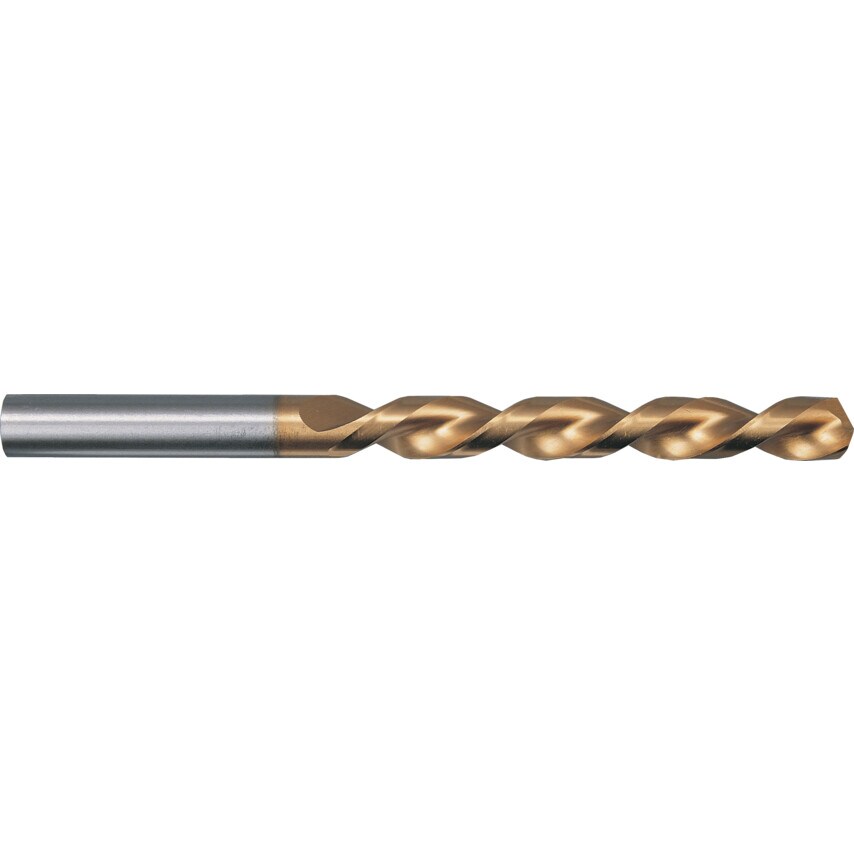

Series 652 HSS High Helix (Parabolic Flute) Straight Shank Jobber Drills
Metric
For drilling in difficult conditions when swarf congestion prevents an adequate flow of coolant. For use in steel and cast iron having a hardness of up to 1000N/mm2. Not recommended for nickel-chrome steels or similar material. Give greater wear resistance and longer tool life than Guhring product number 549 - HSS GT100 right hand jobber drills. Manufactured to DIN388.
| Series | 652 |
| Overall Length | 86mm |
| Drill Diameter Metric | 5.3mm |
| Helix Type | High Helix |
| Flute Length | 52mm |
| Cutting Direction | Right Hand |
| MFR Part No. | 00652 005.300 |
| Point Angle | 130\u00b0 |
| Number of Flutes | 2 |
| Flute Construction | Ground flutes |
| Web Thickness | Form A |
| Standards Met | DIN 338 |
| Shank Diameter Tolerance | F11 |
| Coolant Delivery | External |
| Finish/Coating | TiN |
| Size | 5.3mm |
| Flute Type | Parabolic |
| Point Type | Conventional |
| Product Type | Jobber Drills |
| Drill Diameter | 5.3mm |
| Material | HSS |
| Drill Diameter Tolerance | H8 |
| Diameter | 5.3mm |
