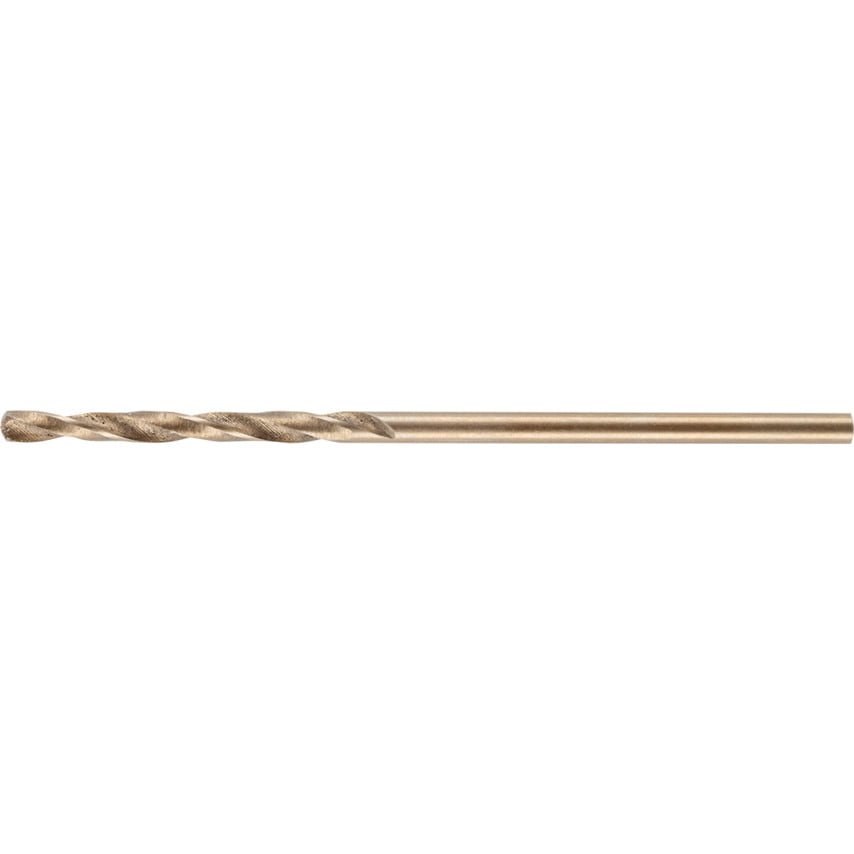

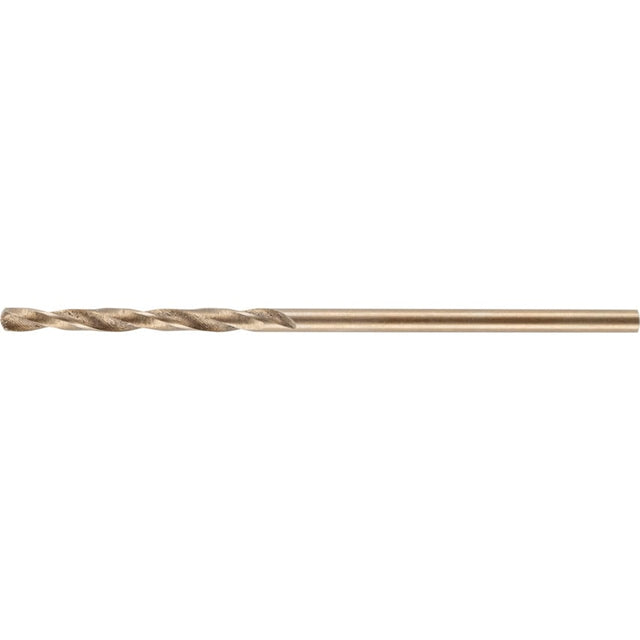

The Kennedy range of HSS-Co heavy duty straight shank jobber drills provide durable and reliable cutting performance at high temperatures and speeds thanks to the addition of 5% cobalt to their alloys. Their toughness and heat resistance allows them to to drill steels with tensile strength up to 1,400 N/mm, very hard bronze, stainless steels as well as heat and acid resistant steels.
Long lasting the cutting edges retain their sharpness for longer periods, maximising performance and productivity, whilst also being resistant to corrosion.
Features and Benefits
Made with a 5% cobalt alloy for optimal performance at high speeds and temperatures
Allows for optimal cutting of metals up to a tensile strength up to 1,400 N/mm
135 point angle for precise hole making and efficient cutting
For applications including steel, bronze, stainless and acid resistant steels
Extended lifespan on cutting edge, required less sharpening over time
Excellent corrosion resistance extends the lifespan of the tool
Standards
Manufacturing Standard: BS 328, DIN 338B
Typical Applications
Cutting and drilling
Hard metals
Stainless steel
Bronze
Notes
Available in sizes 1-13mm
| Shank Diameter Tolerance | F11 |
| Cutting Direction | Right Hand |
| Helix Angle | Normal |
| Web Thickness | Strengthened |
| Overall Length | 101mm |
| Helix Type | Normal Helix |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Coolant Delivery | External |
| Product Type | Cobalt Drills |
| Flute Construction | Ground flutes |
| Drill Diameter | 6.1mm |
| Flute Length | 63mm |
| Point Angle | 135\u00b0 |
| Point Type | Split Point |
| Standards Met | BS 328 | DIN 338B |
| Material | Cobalt High Speed Steel |
| Drill Diameter Metric | 6.1mm |
| Number of Flutes | 2 |
| Finish/Coating | Bronze Oxide |
