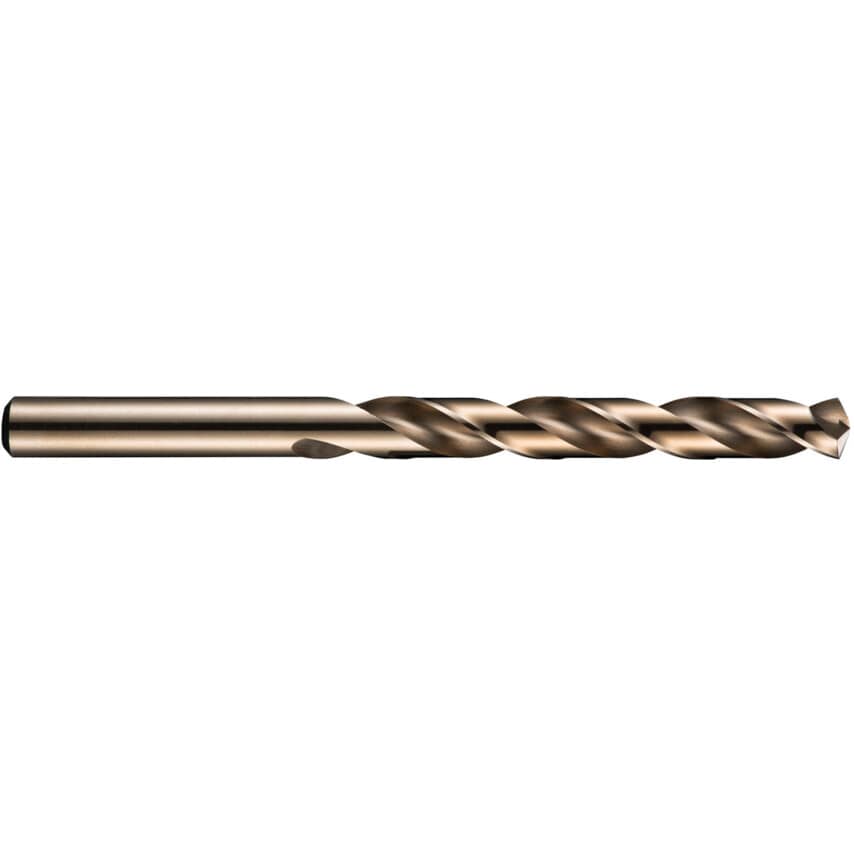

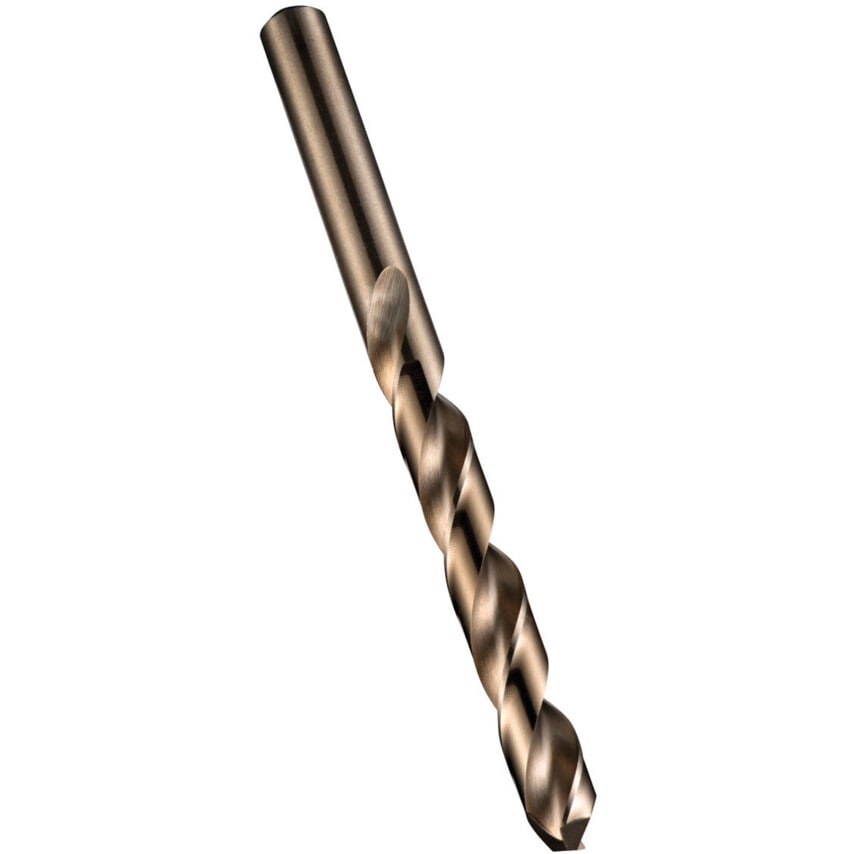

Series A777 HSS-Co heavy duty jobber drills are ideal for applications where more heat is generated, such as machining higher tensile materials. Their high-speed steel/cobalt construction makes them durable even when working in tough conditions.
Features and Benefits
Excellent for drilling higher tensile, tougher materials

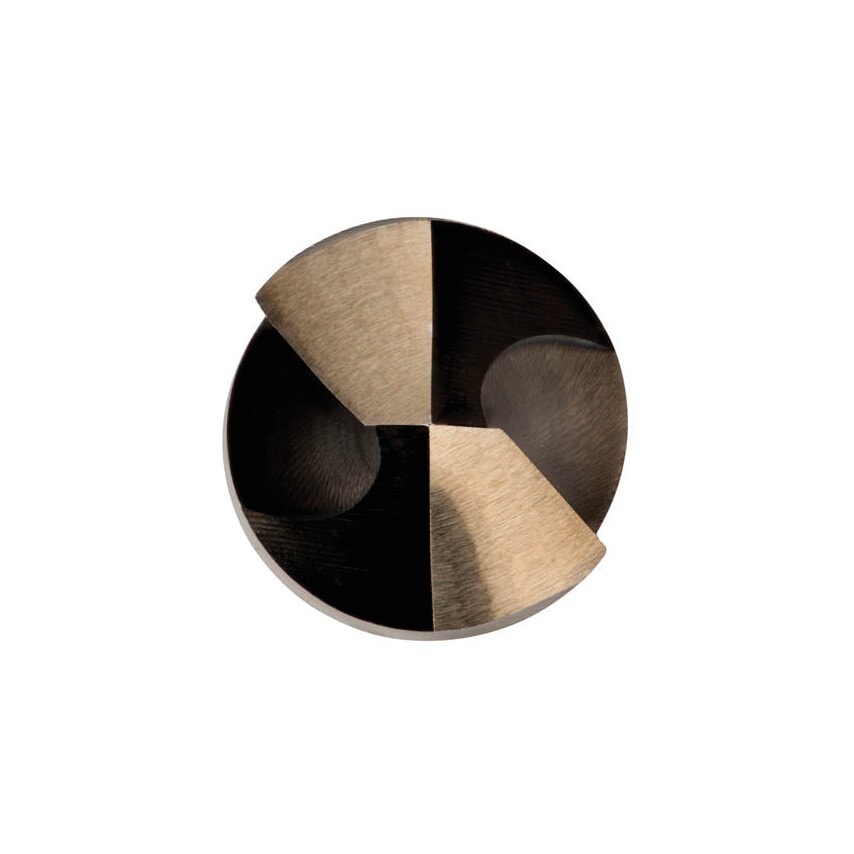

135 split point for improved precision and finish (over 1.5mm)
Typical Applications
Drilling
Alloy steel
Tempered steel
Hardened steel
Malleable cast iron
Titanium
Nickel alloy
Aerospace
Standards
Manufactured to BS 328, DIN 338.
| Finish/Coating | Bronze |
| Overall Length | 93mm |
| MFR Part No. | A7776.0 |
| Flute Construction | Ground flutes |
| Number of Flutes | 2 |
| Point Angle | 135\u00b0 |
| Coolant Delivery | External |
| Flute Length | 57mm |
| Flute Type | Spiral |
| Material | Cobalt High Speed Steel |
| Drill Diameter Tolerance | H8 |
| Drill Diameter Metric | 6mm |
| Point Type | Split Point |
| Standards Met | BS 328 | DIN 338 |
| Cutting Direction | Right Hand |
| Drill Diameter | 6mm |
| Helix Type | Normal Helix |
| Series | A777 |
