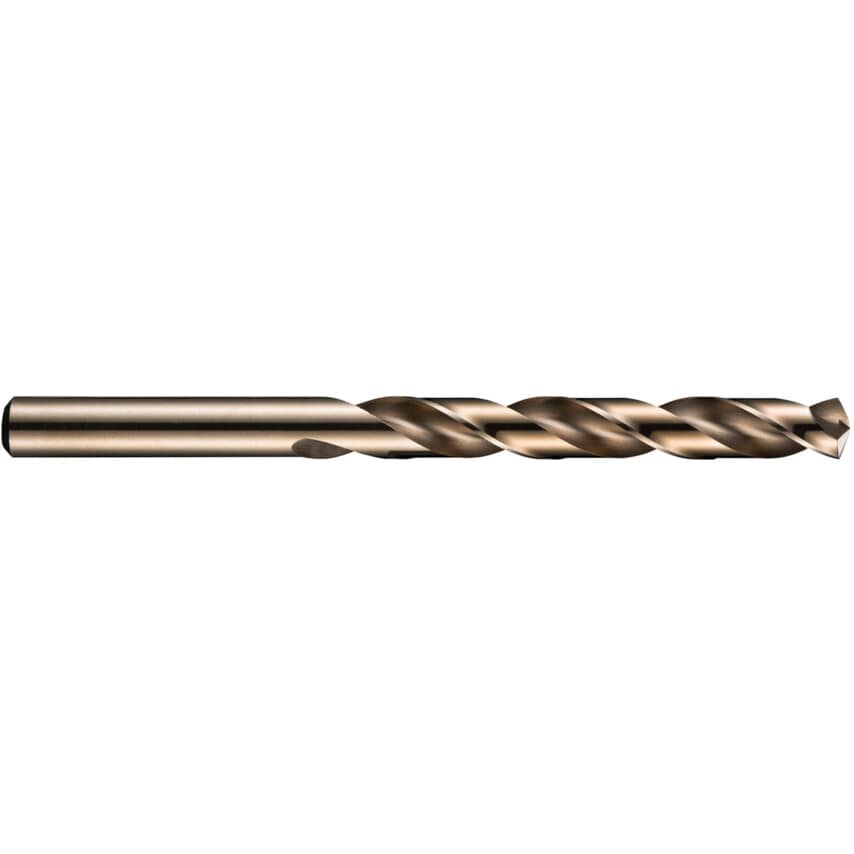

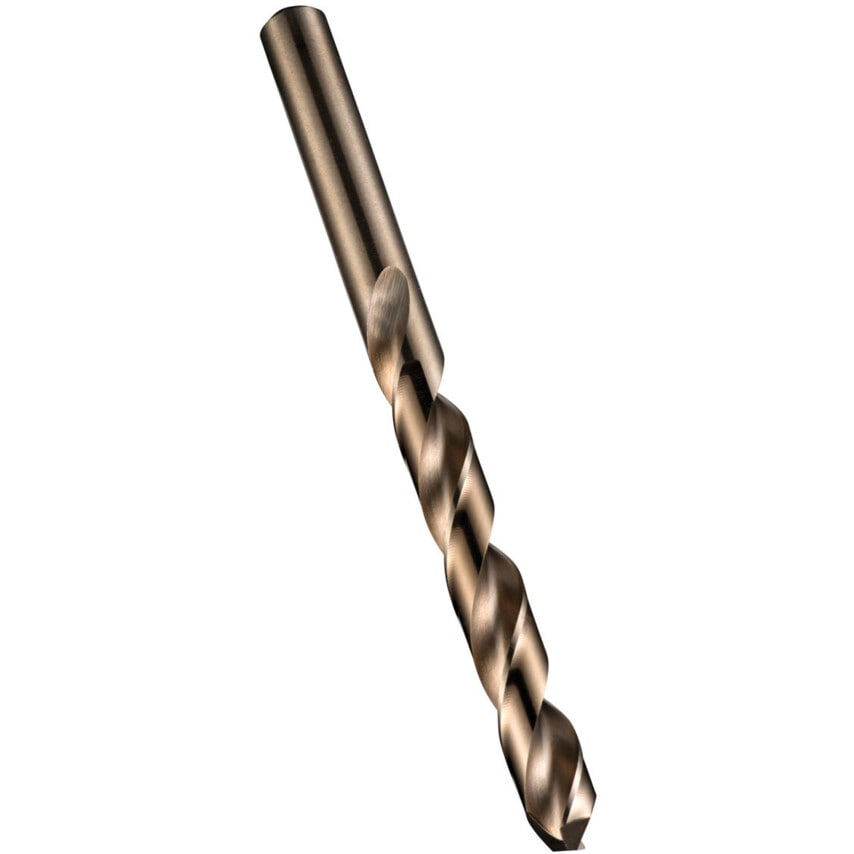

Series A777 HSS-Co heavy duty jobber drills are ideal for applications where more heat is generated, such as machining higher tensile materials. Their high-speed steel/cobalt construction makes them durable even when working in tough conditions.
Features and Benefits
Excellent for drilling higher tensile, tougher materials

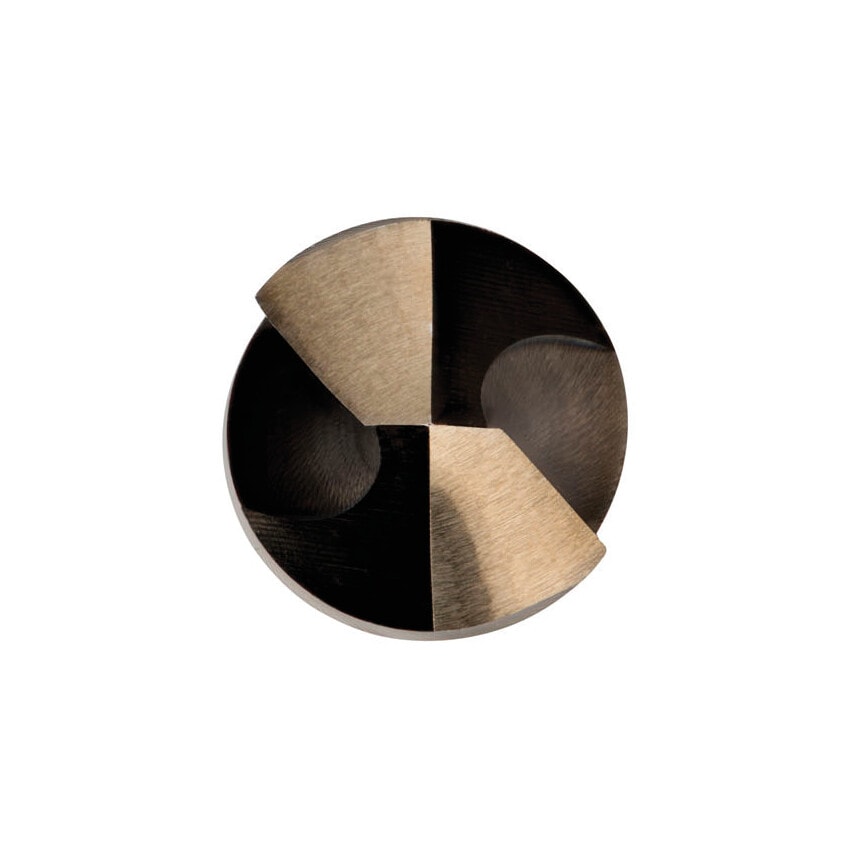

135 split point for improved precision and finish (over 1.5mm)
Typical Applications
Drilling
Alloy steel
Tempered steel
Hardened steel
Malleable cast iron
Titanium
Nickel alloy
Aerospace
Standards
Manufactured to BS 328, DIN 338.
| Drill Diameter | 4.1mm |
| Series | A777 |
| Coolant Delivery | External |
| Point Type | Split Point |
| Drill Diameter Tolerance | H8 |
| Helix Type | Normal Helix |
| Finish/Coating | Bronze |
| MFR Part No. | A7774.1 |
| Flute Construction | Ground flutes |
| Standards Met | BS 328 | DIN 338 |
| Drill Diameter Metric | 4.1mm |
| Flute Length | 43mm |
| Flute Type | Spiral |
| Point Angle | 135\u00b0 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Overall Length | 75mm |
