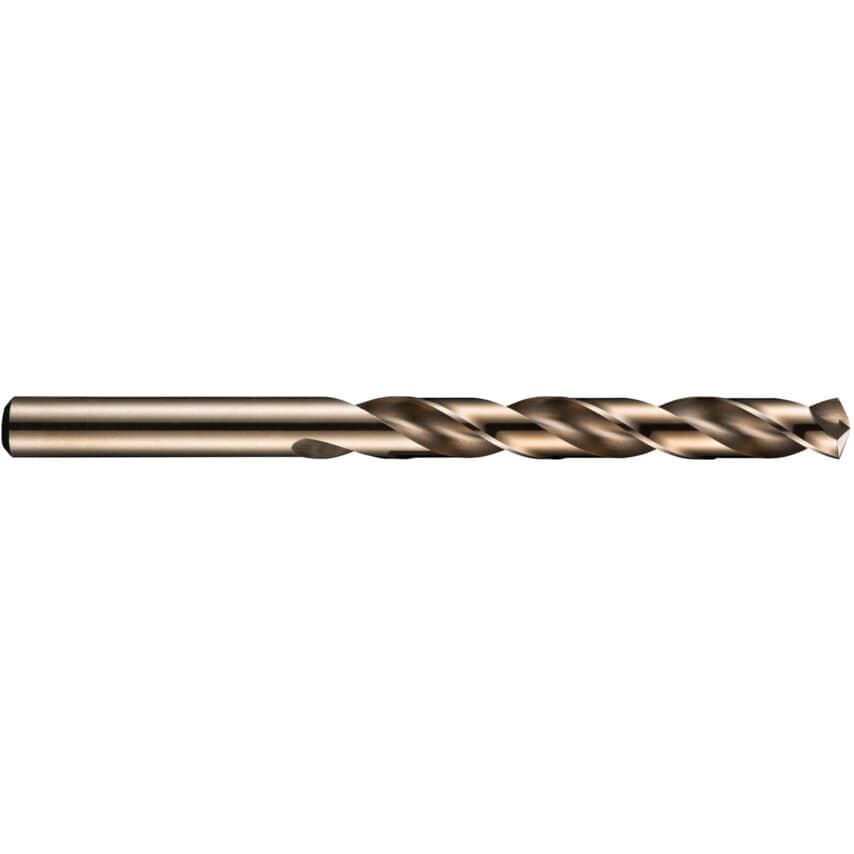

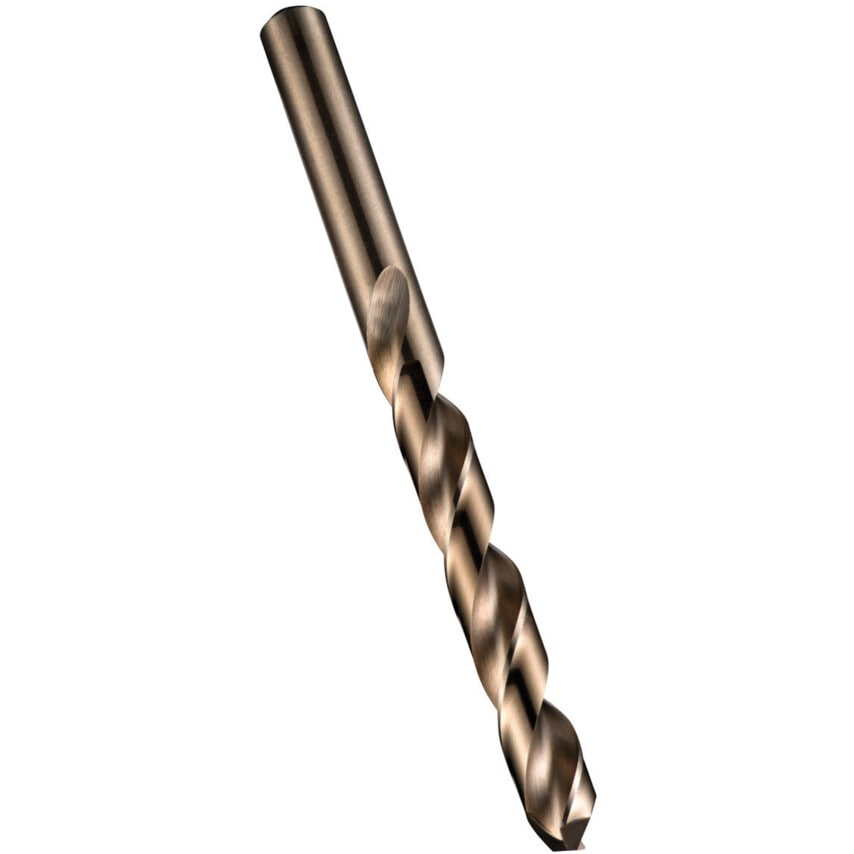

Series A777 HSS-Co heavy duty jobber drills are ideal for applications where more heat is generated, such as machining higher tensile materials. Their high-speed steel/cobalt construction makes them durable even when working in tough conditions.
Features and Benefits
Excellent for drilling higher tensile, tougher materials

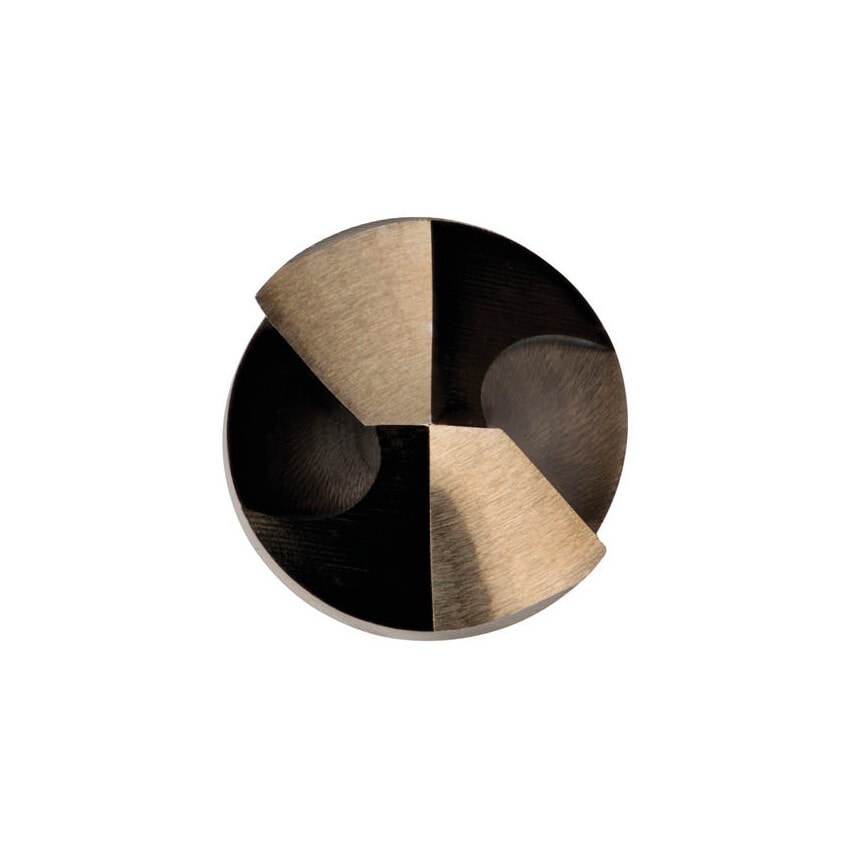

135 split point for improved precision and finish (over 1.5mm)
Typical Applications
Drilling
Alloy steel
Tempered steel
Hardened steel
Malleable cast iron
Titanium
Nickel alloy
Aerospace
Standards
Manufactured to BS 328, DIN 338.
| Helix Type | Normal Helix |
| Point Angle | 135\u00b0 |
| Drill Diameter Metric | 7mm |
| Point Type | Split Point |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Material | Cobalt High Speed Steel |
| Drill Diameter | 7mm |
| Cutting Direction | Right Hand |
| Series | A777 |
| Finish/Coating | Bronze |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Standards Met | BS 328 | DIN 338 |
| Flute Length | 69mm |
| Overall Length | 109mm |
| Number of Flutes | 2 |
| MFR Part No. | A7777.0 |
