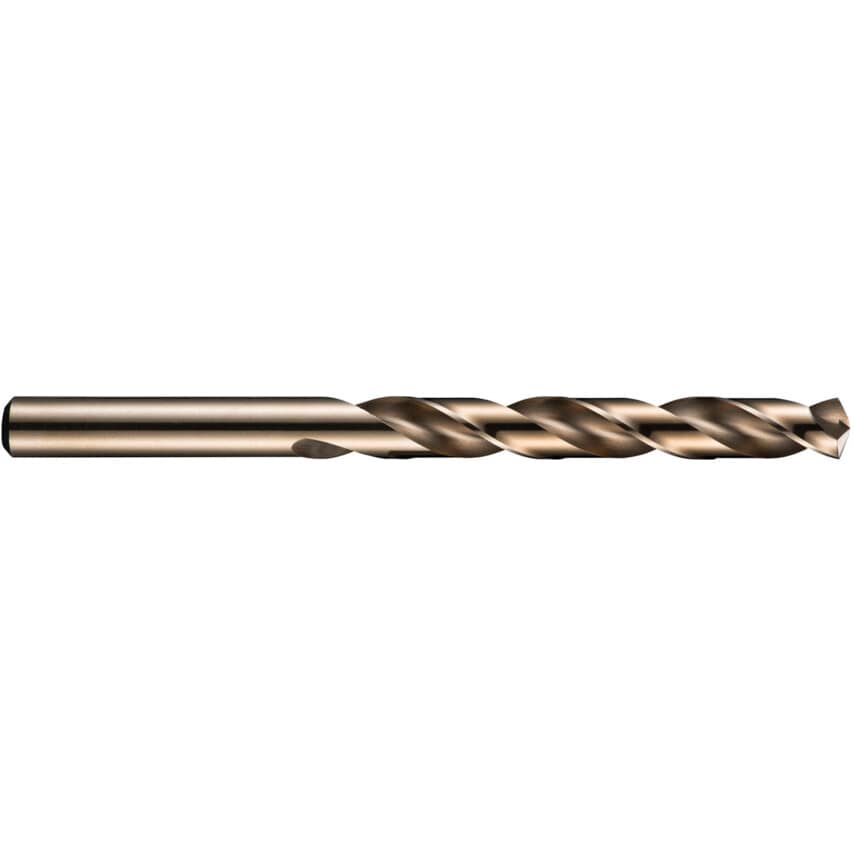

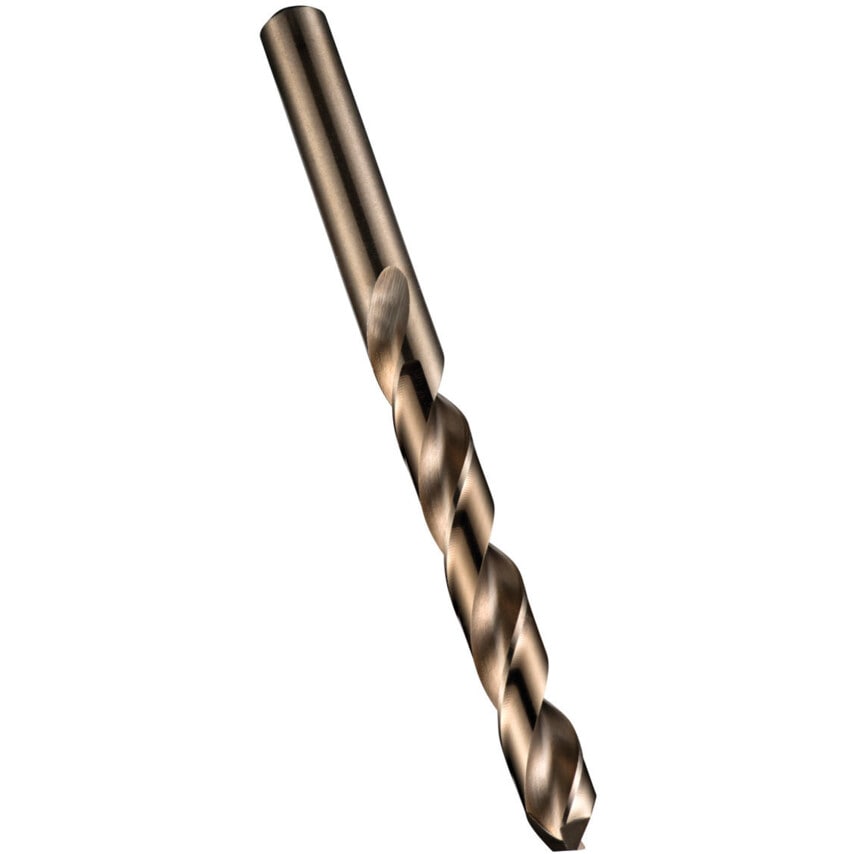

Series A777 HSS-Co heavy duty jobber drills are ideal for applications where more heat is generated, such as machining higher tensile materials. Their high-speed steel/cobalt construction makes them durable even when working in tough conditions.
Features and Benefits
Excellent for drilling higher tensile, tougher materials

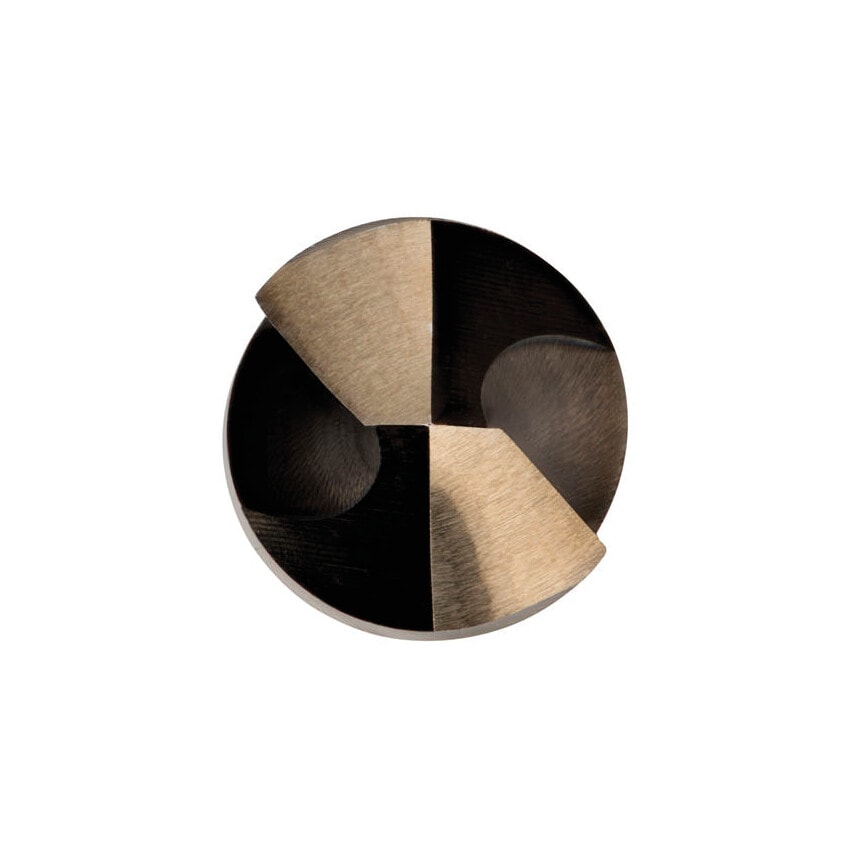

135 split point for improved precision and finish (over 1.5mm)
Typical Applications
Drilling
Alloy steel
Tempered steel
Hardened steel
Malleable cast iron
Titanium
Nickel alloy
Aerospace
Standards
Manufactured to BS 328, DIN 338.
| Flute Construction | Ground flutes |
| Overall Length | 151mm |
| MFR Part No. | A77713.0 |
| Helix Type | Normal Helix |
| Number of Flutes | 2 |
| Point Type | Split Point |
| Finish/Coating | Bronze |
| Standards Met | BS 328 | DIN 338 |
| Flute Length | 101mm |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Drill Diameter Metric | 13mm |
| Drill Diameter Tolerance | H8 |
| Drill Diameter | 13mm |
| Point Angle | 135\u00b0 |
| Flute Type | Spiral |
| Series | A777 |
| Material | Cobalt High Speed Steel |
