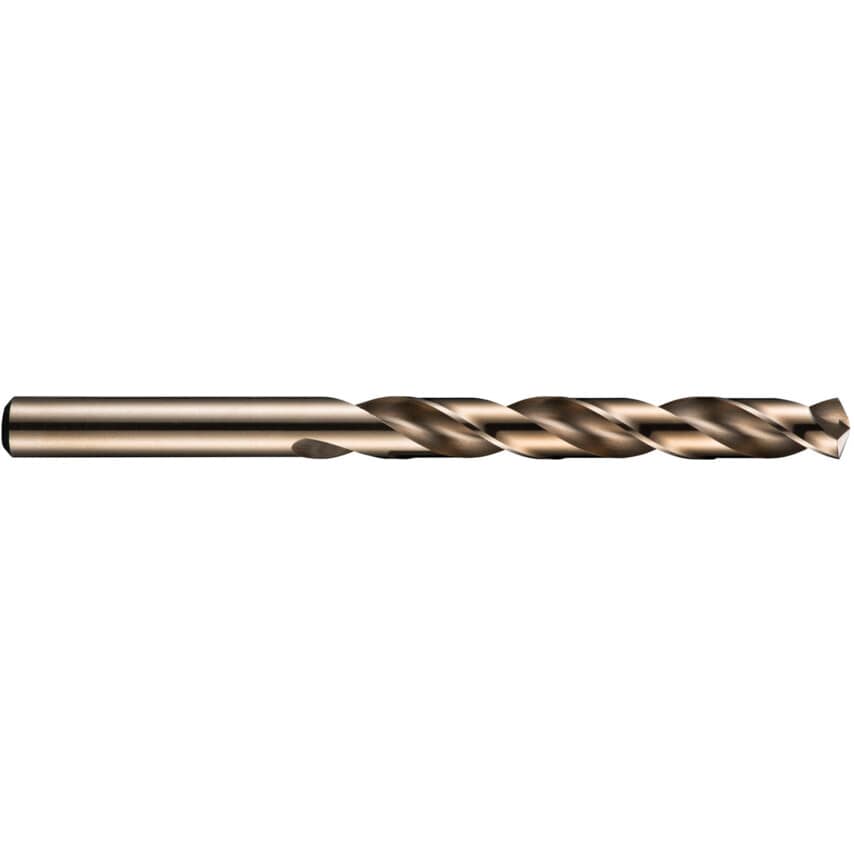

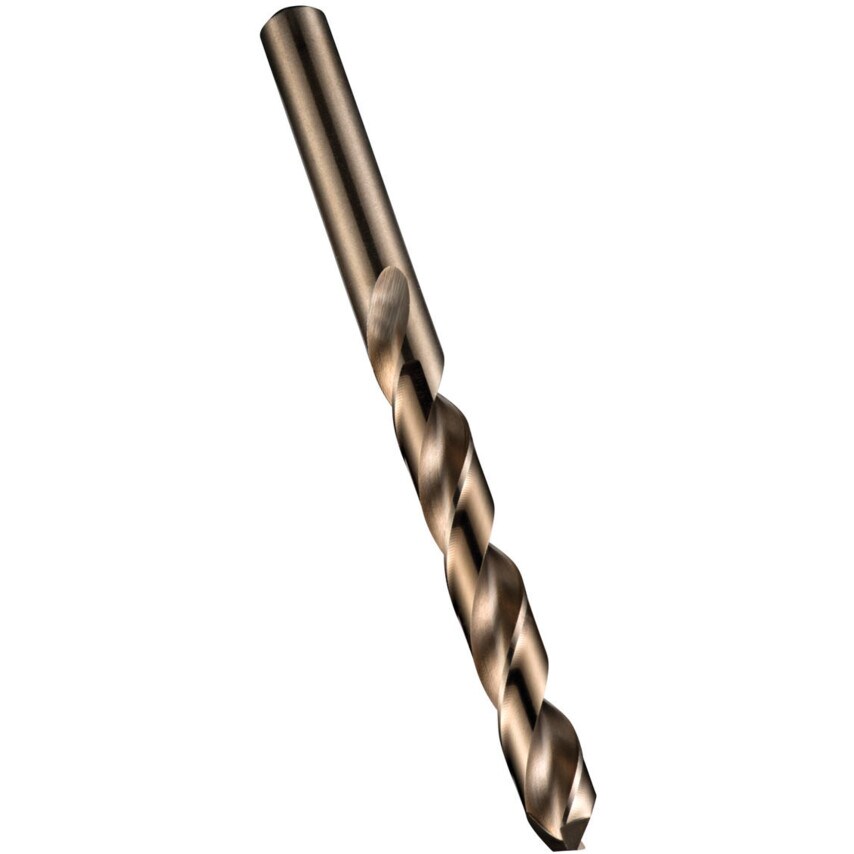

Series A777 are manufactured from HSS-Co for toughness, excellent for drilling higher tensile, tougher materials. 135 split point for improved precision and finish (over 1.5mm).
Features and Benefits
High speed steel and cobalt construction for added toughness
Excellent for drilling higher tensile, tougher materials

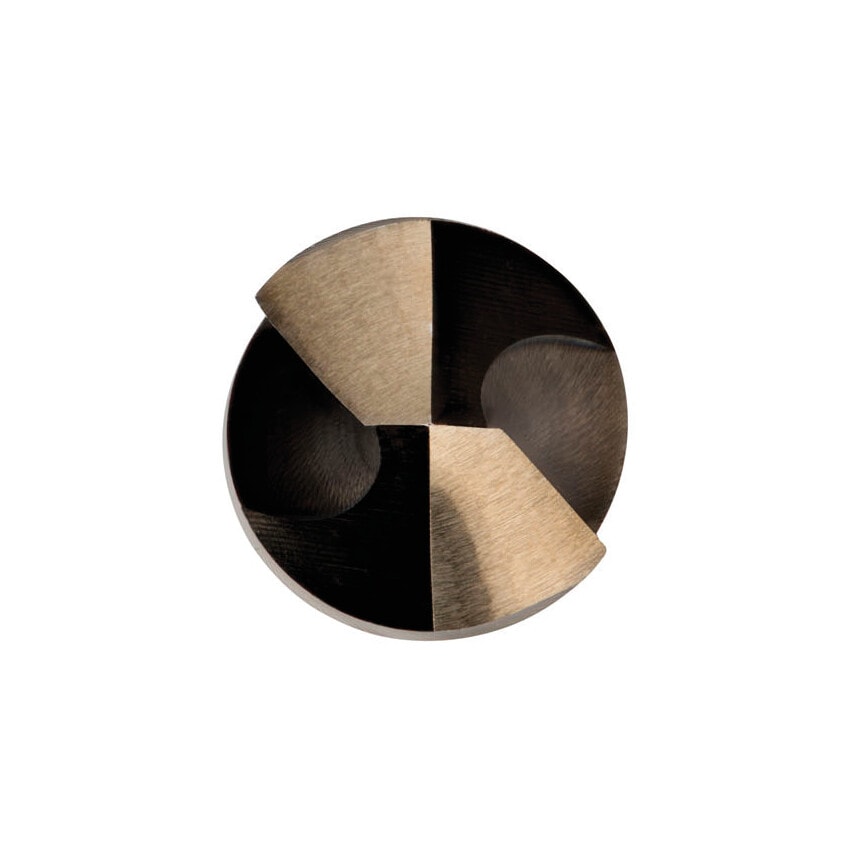

135 split point for improved precision and finish (over 1.5mm)
Standards
BS 328, DIN 338
| Drill Diameter Tolerance | H8 |
| Flute Length | 24mm |
| Overall Length | 49mm |
| Finish/Coating | Bronze |
| Drill Diameter Inch | 5/64in |
| Flute Type | Spiral |
| Material | Cobalt High Speed Steel |
| Flute Construction | Ground flutes |
| Product Type | Jobber Drills |
| Coolant Delivery | External |
| Point Type | Split Point |
| Standards Met | BS 328 | DIN 338 |
| Number of Flutes | 2 |
| Helix Type | Normal Helix |
| Series | A777 |
| Point Angle | 135\u00b0 |
| MFR Part No. | A7775/64 |
| Shank Diameter Tolerance | H8 |
| Drill Diameter | 5/64in |
| Cutting Direction | Right Hand |
