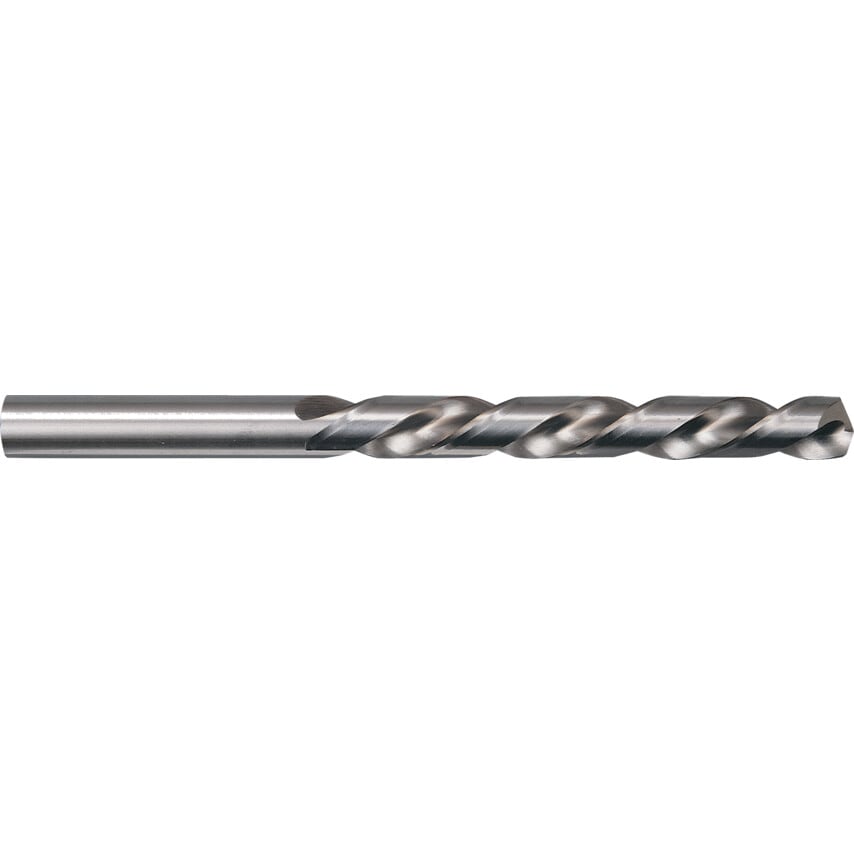

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Drill Diameter Metric | 8.6mm |
| Number of Flutes | 2 |
| Overall Length | 125mm |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| Size | 8.6mm |
| Flute Length | 81mm |
| Shank Diameter Tolerance | H8 |
| Helix Angle | 35\u00b0 |
| Material | Cobalt High Speed Steel |
| Helix Type | High Helix |
| Diameter | 8.6mm |
| Drill Diameter | 8.6mm |
| Finish/Coating | Bright |
| Type | HSCo |
| Product Type | Jobber Drills |
| MFR Part No. | 00605 008.600 |
| Standards Met | DIN 338 |
| Point Type | Split Point |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Point Angle | 130\u00b0 |
| Cutting Direction | Right Hand |
| Series | 605 |
