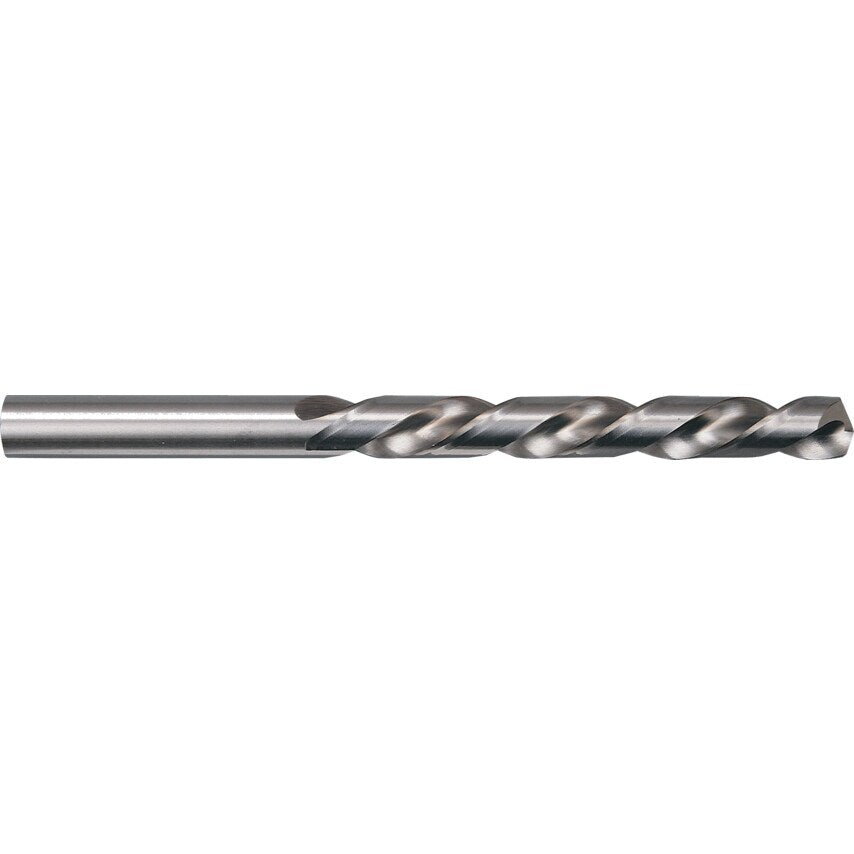

Series 605 HSS-Co Straight Shank Jobber Drills are constructed using a rigid, high-heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels.
Features and Benefits
High speed steel construction
High-heat resistance with large helix angle of 35
Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels
Standards
Manufactured to DIN338
Typical Applications
Drilling
Metals
Titanium
Titanium alloys
Stainless steels
Heat resistant steels
Notes
Limited suitability for special alloys such as hastaloy, inconel, nimonic etc
| Number of Flutes | 2 |
| Helix Type | High Helix |
| Product Type | Jobber Drills |
| Finish/Coating | Bright |
| Drill Diameter | 1.7mm |
| Size | 1.7mm |
| Point Type | Conventional |
| Flute Length | 20mm |
| Shank Diameter Tolerance | F11 |
| Coolant Delivery | External |
| Standards Met | DIN 338 |
| Flute Type | Spiral |
| Drill Diameter Metric | 1.7mm |
| MFR Part No. | 00605 001.700 |
| Drill Diameter Tolerance | H8 |
| Series | 605 |
| Cutting Direction | Right Hand |
| Flute Construction | Ground flutes |
| Overall Length | 43mm |
| Material | Cobalt High Speed Steel |
| Point Angle | 130\u00b0 |
| Web Thickness | Similar to Form C |
